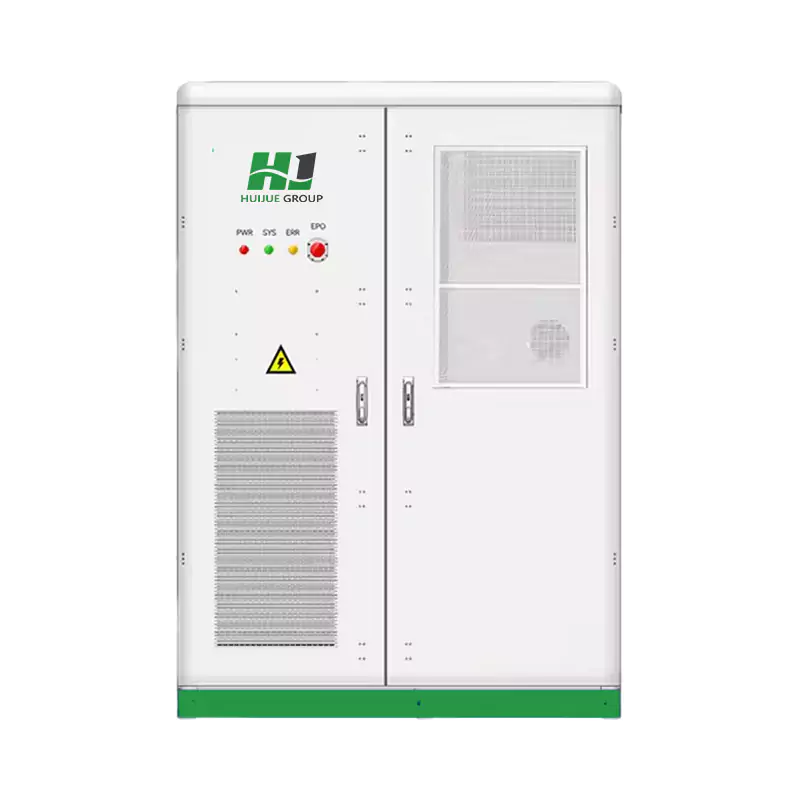

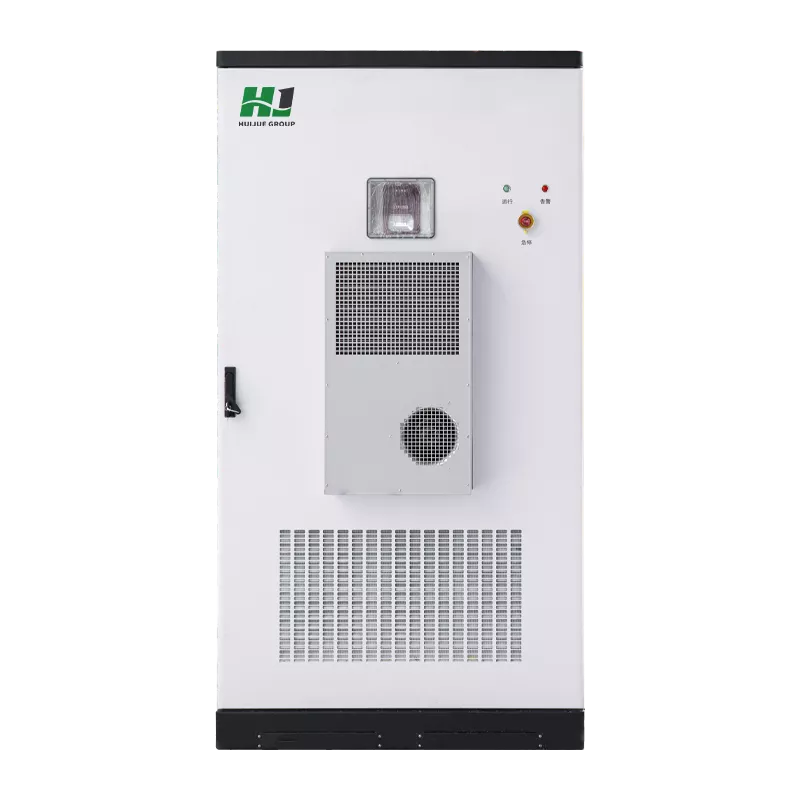

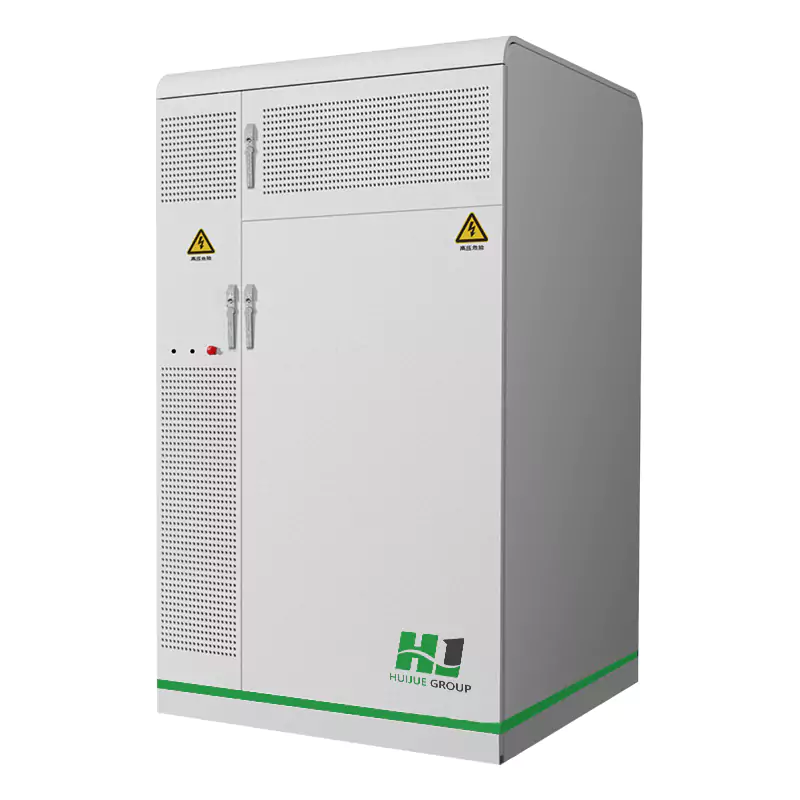

The HJ-G50-112F is a highly efficient and integrated outdoor cabinet energy storage system. The system adopts modular air-cooled architecture, with a rated AC output power of 50kW and a total capacity of 112kWh, supporting grid-connected operation. The whole system integrates battery PACK, intellige…
Send Message Get Price
| Model | HJ-G50-112F |
| Item | Specification |
| Energy Storage Outdoor Cabinet | Including cabinet, battery bracket, battery tray, lighting, etc., fire protection system, protection grade: IP55 |
| Battery PACK | 51.2V/314Ah air-cooled battery PACK, with BMS slave control system, cooling fan |
| Battery High Voltage Box | Including BMS master module and BMS, fan power supply management, battery PACK power supply management |
| PCS | Grid-connected, rated AC output power 50kW |
| Power Distribution System | In-cabinet power distribution system, including auxiliary power supply system and utility input interface |
| Air Conditioning System | Rated cooling capacity: 2kW, door-mounted cooling/heating unit |
| EMS | EMS local management system |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet
Equipped with 7 sets of 51.2V/314Ah air-cooled battery PACKs, each with BMS slave control system and cooling fan, which can achieve accurate battery management and cooling control.
With a rated AC output power of 50KW, the grid-connected PCS is able to achieve efficient conversion and stable output of power.
The power distribution system inside the cabinet includes auxiliary power supply system and utility input interface, which provides reliable power distribution and control for auxiliary equipment such as air-conditioning, lighting and utility input.
Outdoor cabinet with integrated fire protection system, IP55 protection level, dustproof, waterproof and anti-corrosion, adapting to all-weather operation.
Industrial and commercial parks, photovoltaic storage integration, emergency power backup, microgrid system.
