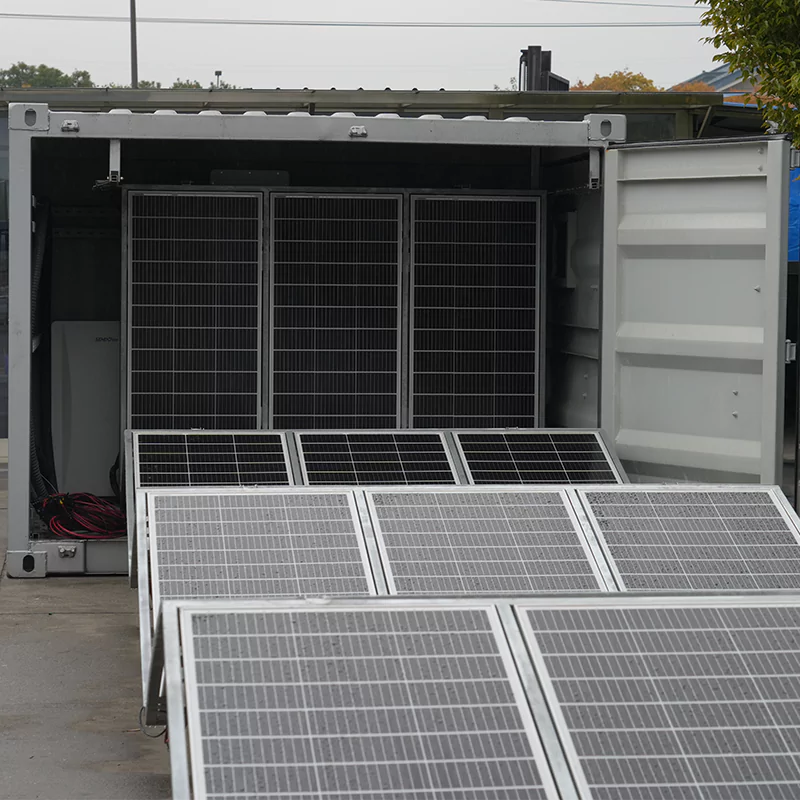

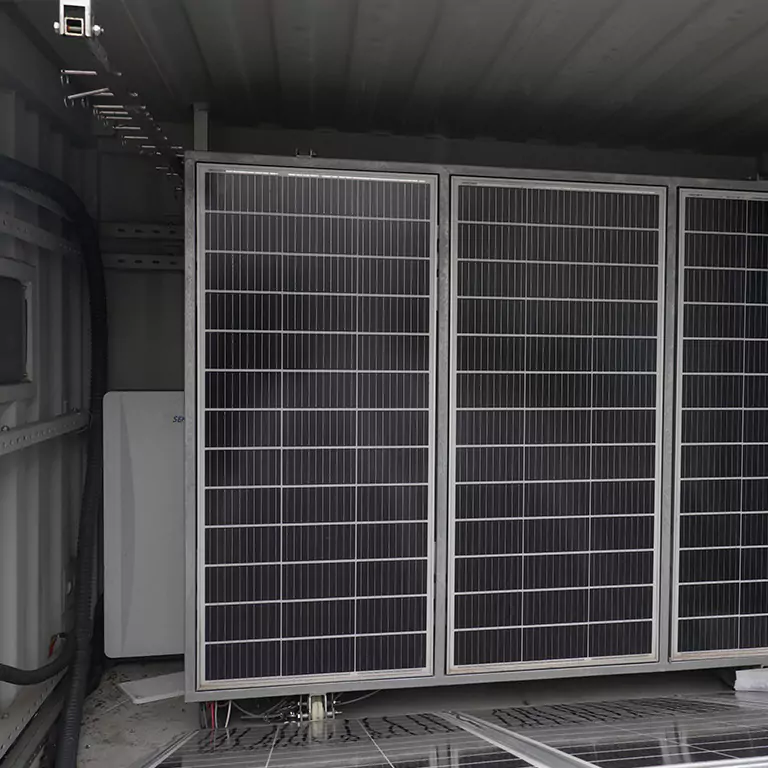

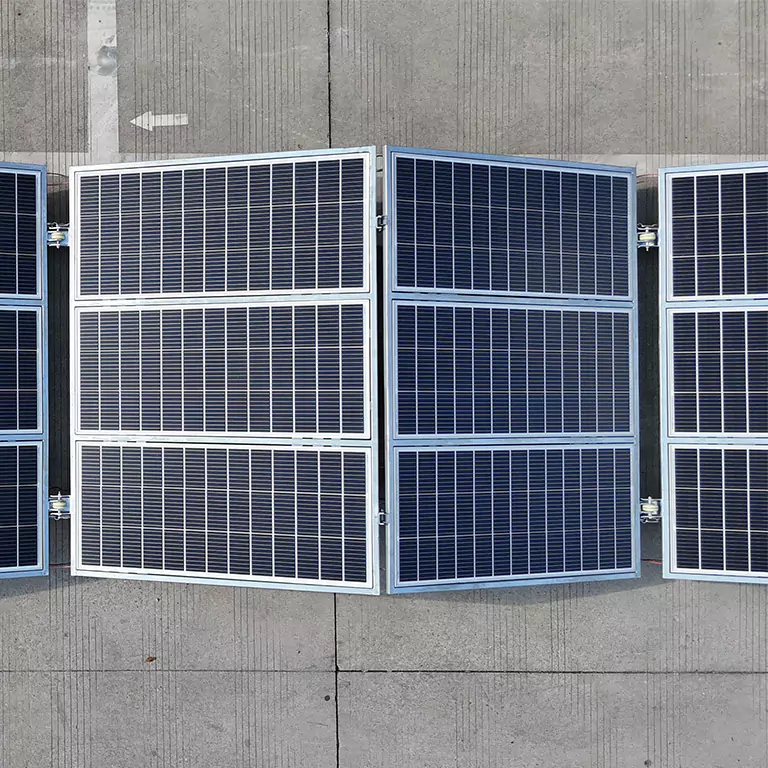

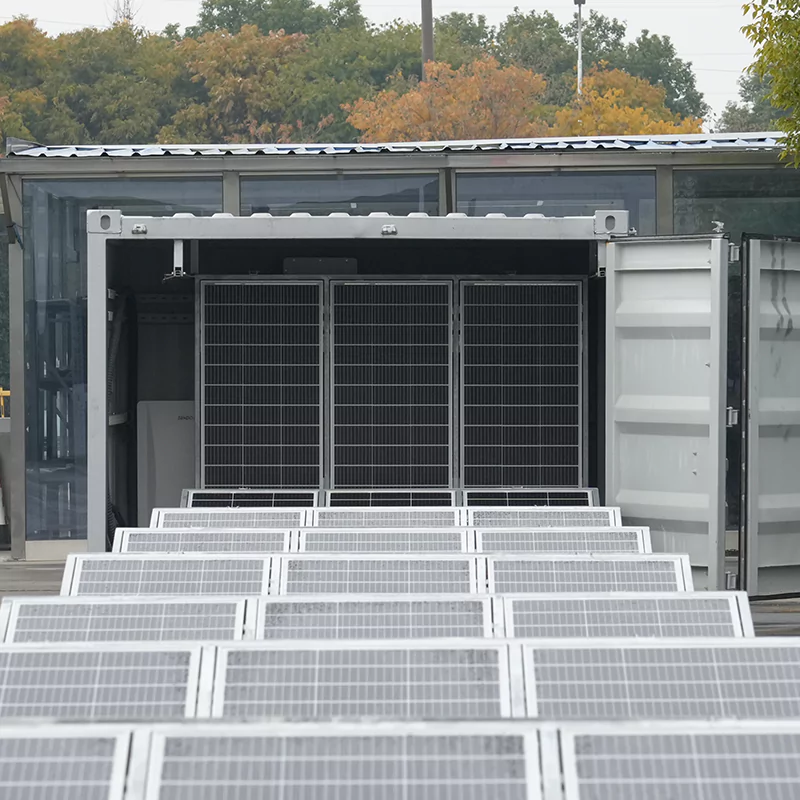

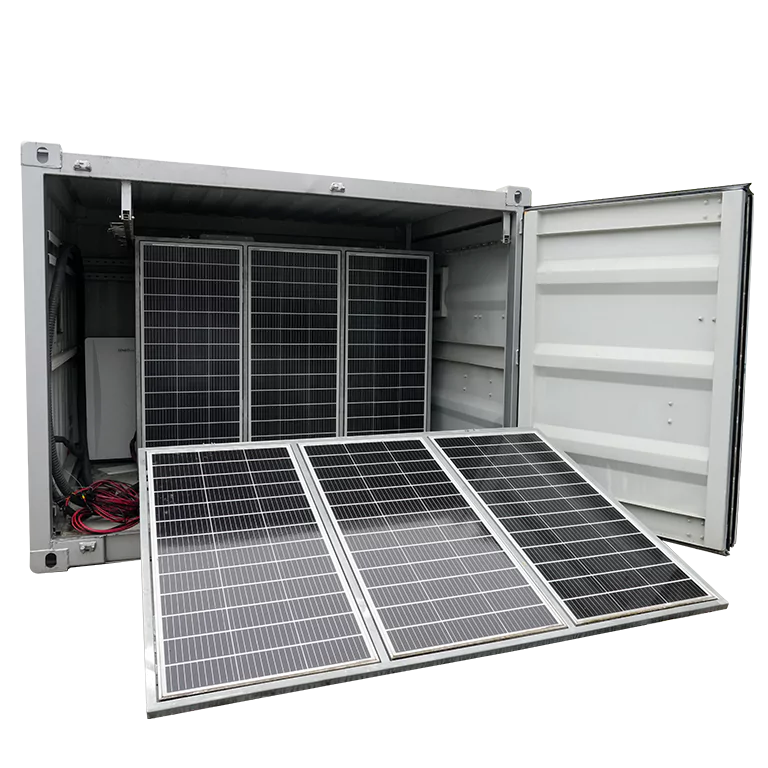

Foldable power generation and energy storage warehouse

Foldable power generation and energy storage warehouse is a containerised solar power solution. It combines the features of solar power generation and mobility to provide electricity around the world. Compared with the Foldable Photovoltaic Power Generation Cabin, the folding power storage warehouse…

Type : Foldable Power Generation and Storage Cabin
Power : 18KW-150KW/20KWh-430KWh
Energy Capacity : 20KWh-430KWh
Photovoltaic Capacity : 18KW-150KW
Size : 8ft-40ft

Send Message Get Price

Parameters

Product Parameters

Model	Specifications	Inverter power	Photovoltaic module capacity	Energy storage capacity	Component Specifications	Scenario
HJ-20D-P009E020 (Modular Cabin Roof Photovoltaic Energy Storage)	20-foot modular unit rooftop PV – 2	8kW Photovoltaic-Storage Integrated Unit	9KWp	20KWh	600Wp	Photovoltaic storage
HJ-20D-P009E015 (Modular Cabin Roof Photovoltaic Energy Storage)	20-foot modular unit rooftop PV – 3	8kW Photovoltaic-Storage Integrated Unit	9KWp	15KWh	600Wp
HJ-08G-P018E030	8-foot container (with energy storage)	15kW Photovoltaic-Storage Integrated Unit	18KWp	30KWh	430Wp
HJ-10G-P024E040	10-foot container (with energy storage)	20KW Photovoltaic-Storage Integrated Unit	24KWp	40KWh	500Wp
HJ-20G-P057E241	20-foot container (with energy storage)	Inverter 50KW + PCS Converter 100KW	57KWp	241KWh	500Wp
HJ-20H-P068E241	20-foot high cube container (with energy storage)	Inverter 60KW + PCS Converter 100KW	68KWp	241KWh	600Wp
HJ-40G-P114E482	40-foot container (with energy storage)	Inverter 50KW × 2 units + PCS Converter 100KW × 2 units	114KWp	482KWh	500Wp
HJ-40H-P136E482	40-foot high cube container (with energy storage)	Inverter 60KW × 2 units + PCS Converter 100KW × 2 units	136KWp	482KWh	600Wp

Note: Specifications are subject to change without prior notice for product improvement. Data Sheet

Feature

Mobility

Mobility solar solution combines the features of solar power generation and mobility, making it easier to deploy small-scale new energy power plants.
Expandable

The system can be easily expanded and connected to other containers to meet different sizes of power needs.
Energy Saving and Environmentally Friendly

Using solar power as the main energy source reduces the need for traditional fuels and lowers carbon emissions.
Easy to deploy

Customised containers with galvanised steel frames, TOPCon N cells and other components are already installed in the containers and are ready to be deployed upon arrival.
