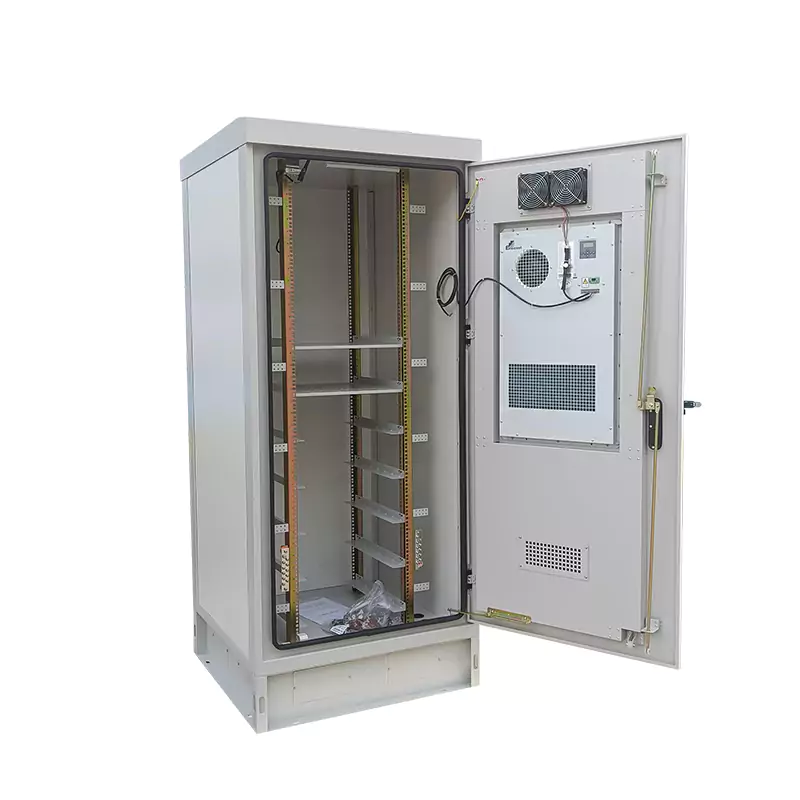

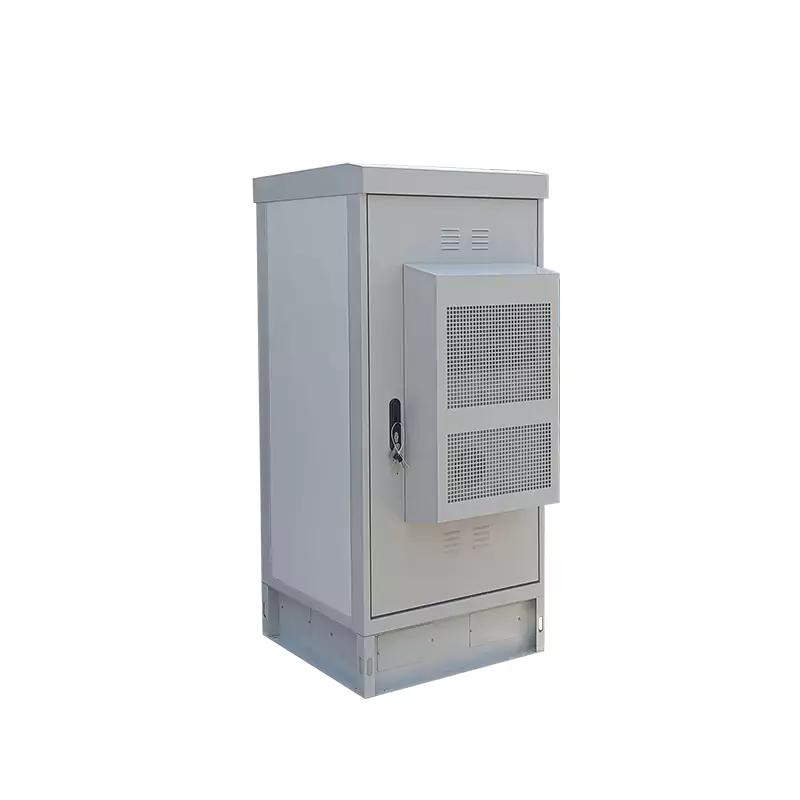

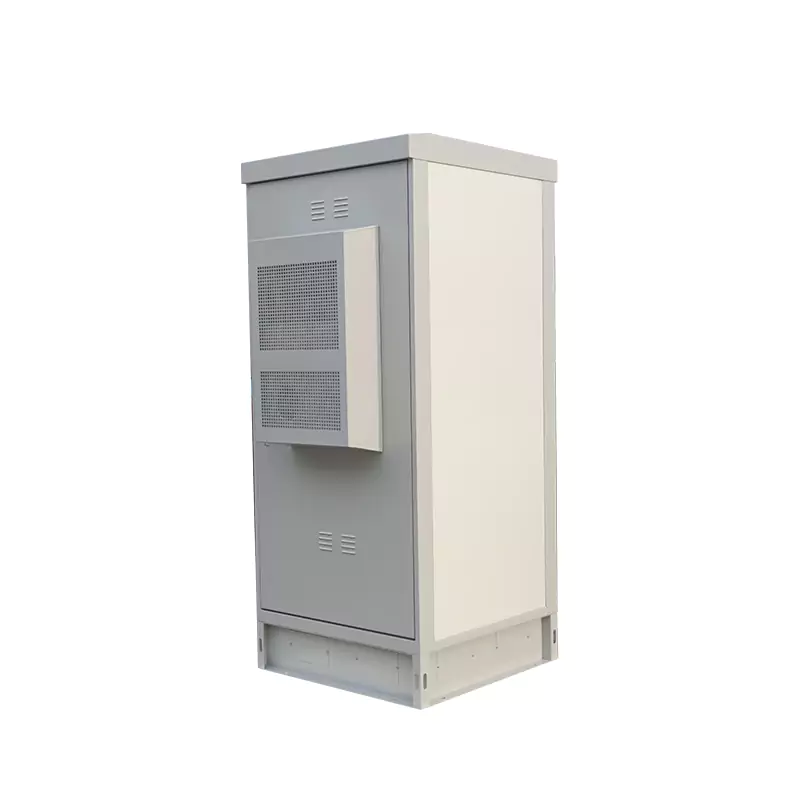

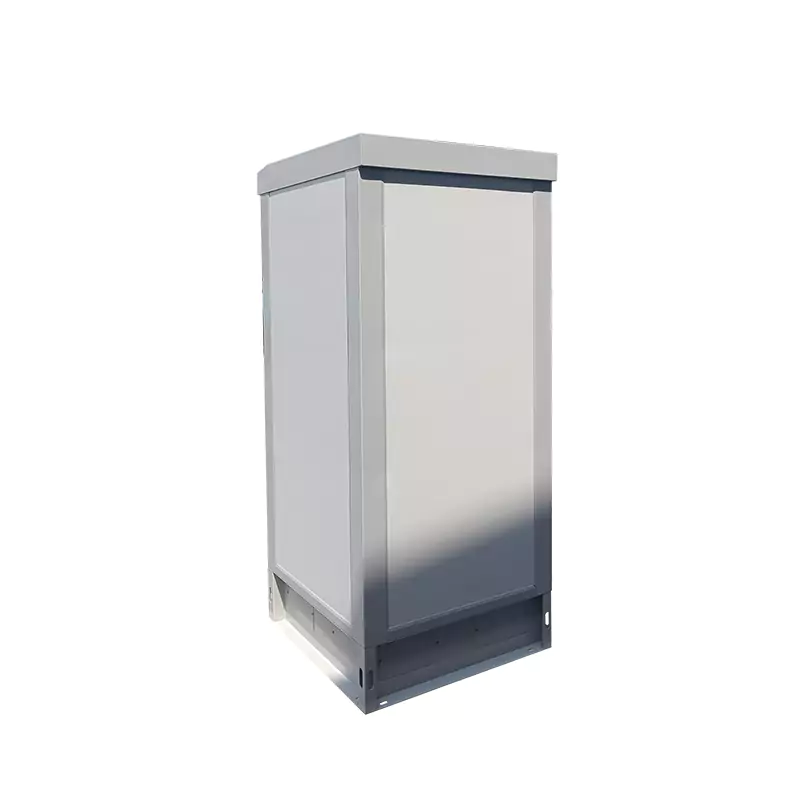

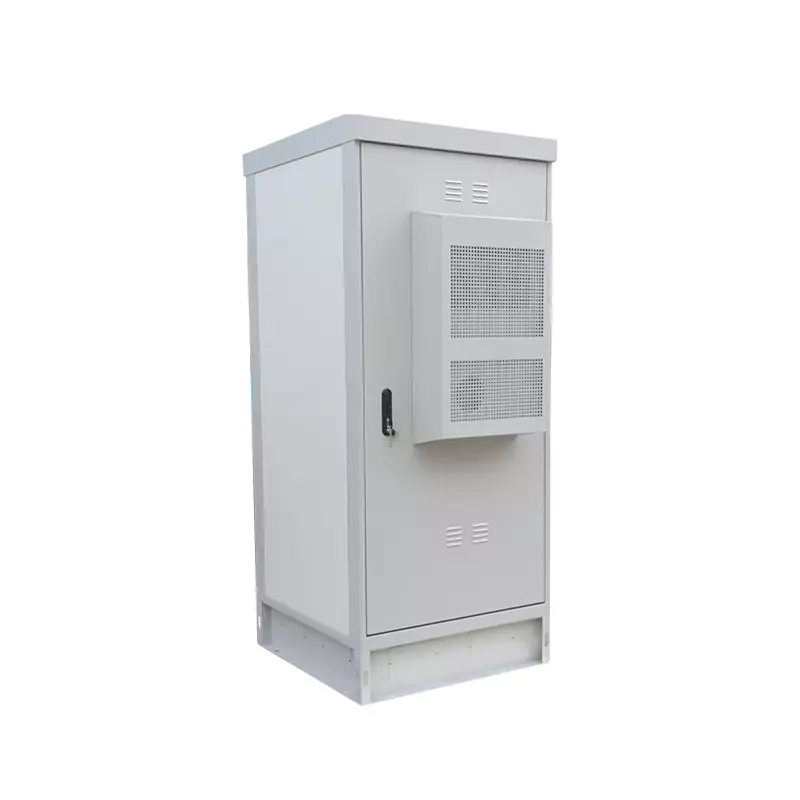

The modular outdoor integrated cabinet is an outdoor integrated cabinet constructed using a sheet metal frame and sandwich panel materials. It can integrate professional equipment, network communication equipment, system power supplies, AC/DC power distribution, monitoring systems, temperature contr…
Send Message Get Price
| Product Model | HJ-OFAM30-01 | HJ-OFVM30-01 | HJ-OFAM40-01 | HJ-OFVM40-01 |
| Rack Capacity | 30U，19″rack | 40U，19″rack | ||
| Temperature Control Equipment | AC220V 1500W air conditioner type, with emergency fan | AC220V fan type (4 per set at the top) | AC220V 1500W air conditioner type, with emergency fan | AC220V fan type (4 per set at the top) |
| Specifications (Height x Width x Depth mm) | 1725*900*900 (200mm base), internal dimensions 1400*800*800mm | 2125*900*900 (200mm base), internal dimensions 1800*800*800mm | ||
| Main Configuration | 45mm rock wool sandwich panel assembly structure Front door | |||
| Lighting | AC220V, 5W LED light, with door access switch | |||
| Shelves | Cold-rolled steel plate 1.5mm, load capacity 80KG | |||
| L-shaped Brackets | Cold-rolled steel plate 1.5mm | |||
| Base | 2.0mm thick | |||
| Locks | Anti-theft structure, outdoor waterproof type, zinc alloy material, three-point fixed type | |||
| Power Distribution Unit | AC circuit breaker: Input 32A/2P*1, Output 10A/1P*3, Surge protector 40KA*1 | |||
| AC-DC Power Supply | Switching power supply 150A rectifier power supply | |||
| UPS | 1~6KVA | |||
| Battery System | Lithium-iron phosphate battery 100AH, DC48V | |||
| Monitoring Unit | 1. Can be connected to smoke detectors, door magnets, water sensors, infrared sensors, etc., and environmental information can be viewed through the platform; standard 1U rack mounting; 2. Software can view collected data and alarms | |||
| Protection Rating | Default IP55, optional IP65 | |||
| Packaging Method | Carton + wooden pallet | |||
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet
Offering lightweight yet high-strength performance, corrosion resistance, strong insulation properties, and low thermal conductivity.
Divided into equipment power zones, battery zones, and air conditioning zones, with front-opening doors.
The cabinet's overall structure can be assembled, addressing on-site transportation issues (cabinets exceeding 800 mm in depth and 800 mm in width can pass through an 800 mm-wide corridor).
High modularity reduces on-site assembly workload; fewer installation screws are required during on-site assembly.
After disassembling two cabinets, the entire unit can be assembled in less than 30 minutes (with no more than three people).
Through analysis of standard modules, we have identified the optimal solution, which can be implemented at the lowest possible cost. Factors such as materials, material thickness, surface treatment, manufacturability, installability, and versatility are all considered to achieve cost-effectiveness while meeting customer requirements.
Primarily used in various outdoor environments such as rooftops, street sides, mountainous areas, railway lines, and high/low-temperature environments.
