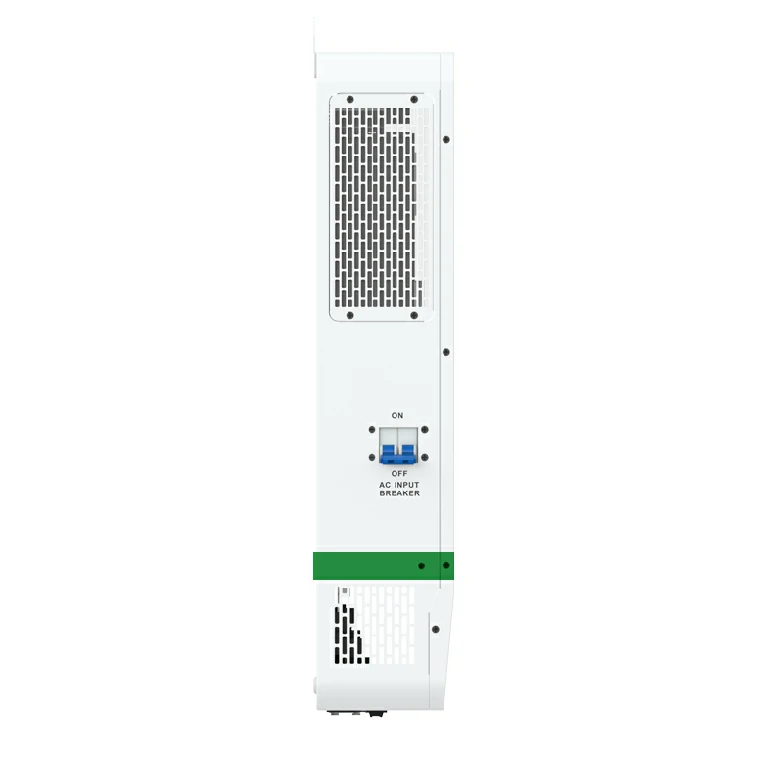

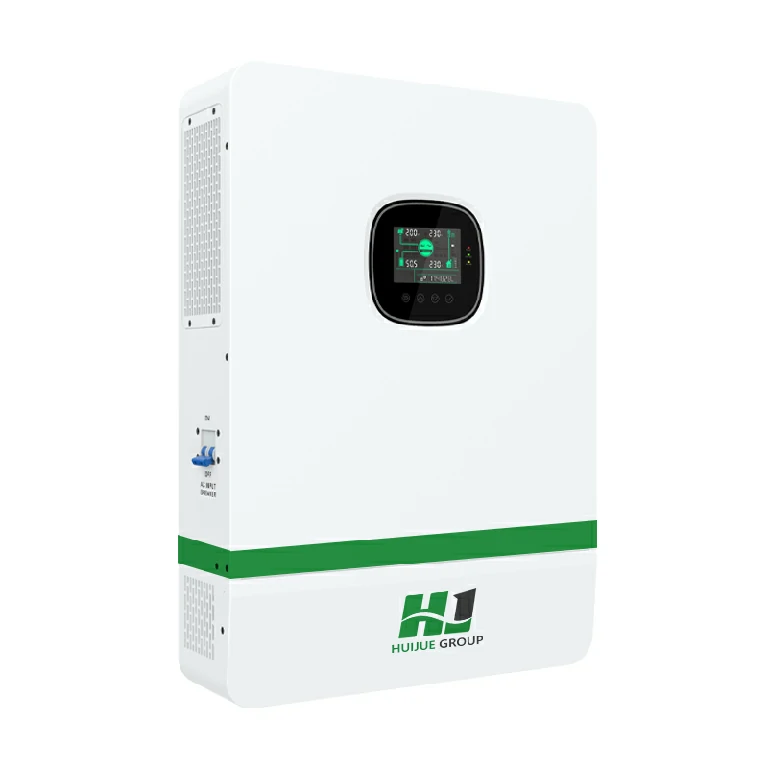

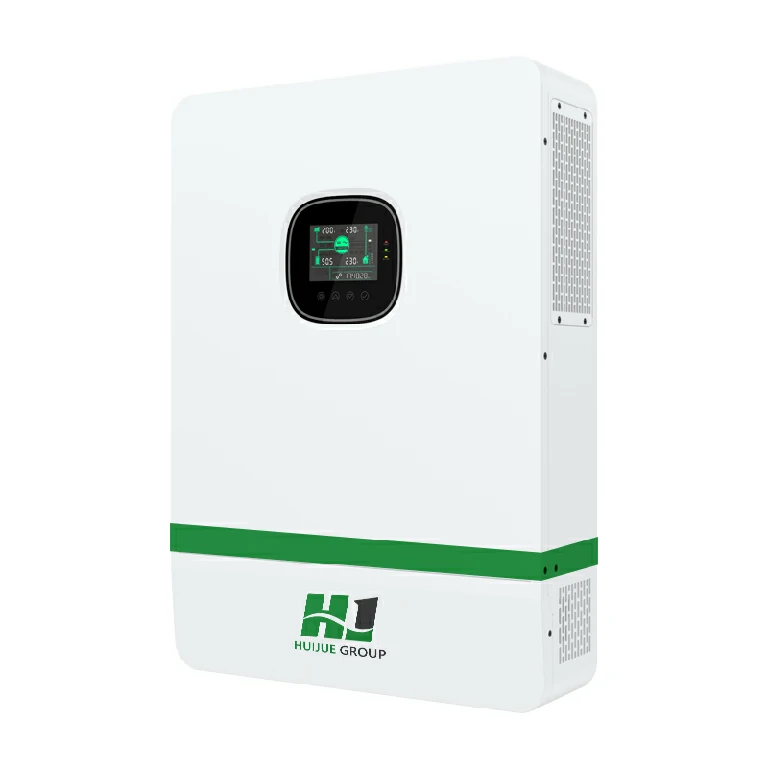

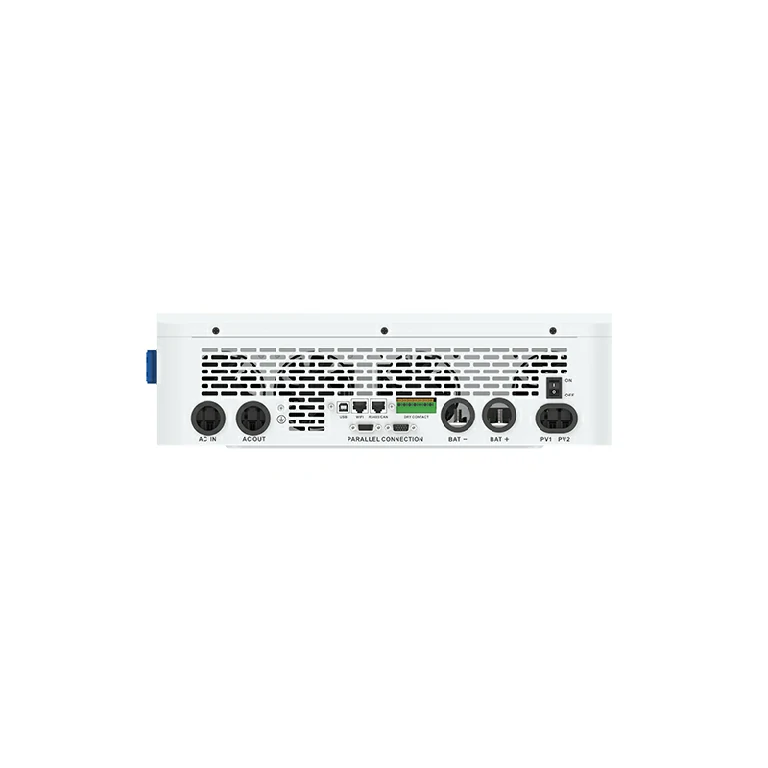

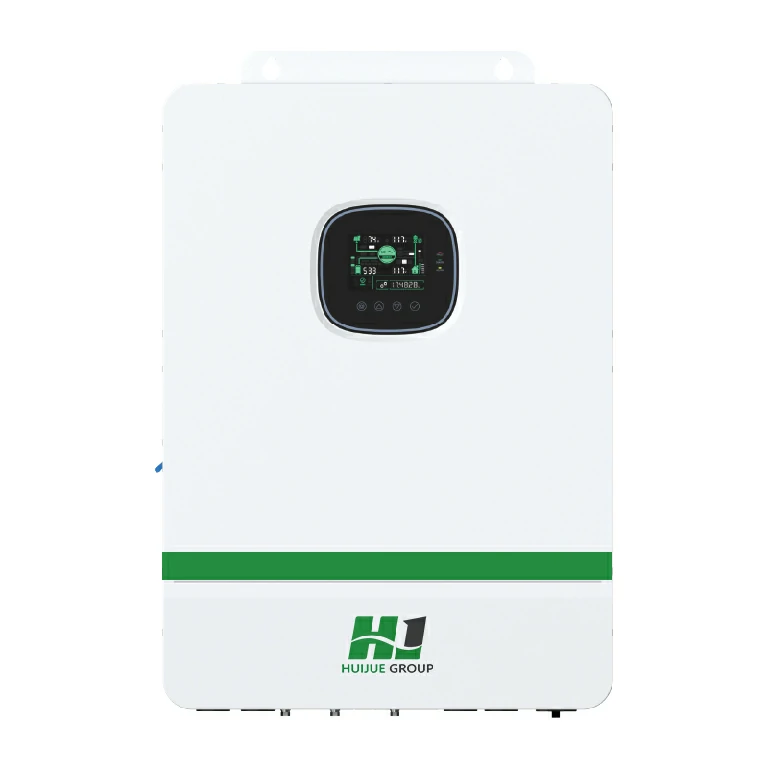

The 10–12 kW three-phase low-voltage off-grid inverter is specifically designed for households or small businesses with high-power appliances, capable of outputting three-phase 400-volt AC power. The inverter achieves an efficiency of over 97%. It is widely used in residential settings, farms, subur…
Send Message Get Price
| Production Model | HJ-IO10-W48T（C-2） | HJ-IO12-W48T（C-3） |
|---|---|---|
| PV Input Date | ||
| Max, Input Power | 7,500W/7,500W | 9,000W/9,000W |
| MPPT Operating Voltage Range | 200～650Vdc/200～650Vdc | |
| Max.Short Circuit Current | 22A/22A | |
| Number of MPPT Trackers | 2 | |
| Battery Input Data | ||
| Battery Voltage Range | 40～60Vdc | |
| Max.Charge/Discharge Current | 120A | 120A |
| Battery Type | Li-ion / Lead-Acid / User Defined | |
| AC Data | ||
| Nominal Power | 10,000W | 12,000W |
| Nominal Voltage | 230/400Vac, three-phase | |
| Nominal Frequency | 50Hz/60Hz | |
| Max.Current | 22A | |
| Power Factor | 0.8 leading ~0.8 lagging | |
| Protection | ||
| Protection | Anti-reverse charge protection，Overcurrent Protectio | |
| General Data | ||
| Operating Temperature Range | -10~55℃, >45℃ derated | |
| Cooling | air cooling | |
| Relative Humidity | 0~95% | |
| Display | LCD | |
| Communication | RS485 / CAN / USB / Dry contact/Wi-Fi / GPRS | |
| Installation | Wall-mounted | |
| Dimension (W*D*H) | 620*445*130mm | |
| Weight | 27kg | |
| Certification | ||
| Production Certification | IEC62109-1/2 | |
Note: Specifications are subject to change without prior notice for product improvement.
• Advanced MPPT technology with up to 99.9% efficiency• Up to 22+22A PV input current
• Outputs high quality pure sine wave AC power • Up to 72kW load power for most household needs
• Comprehensive security from hardware to software• Multiple safety certifications
• Industrial design with a modern aesthetic look• Easy to install and simple to use
• Up to 260A charging current• Support Li-ion battery BMS communication
• Exclusive Li-ion battery BMS dual activation• Time-slot function to save cost
