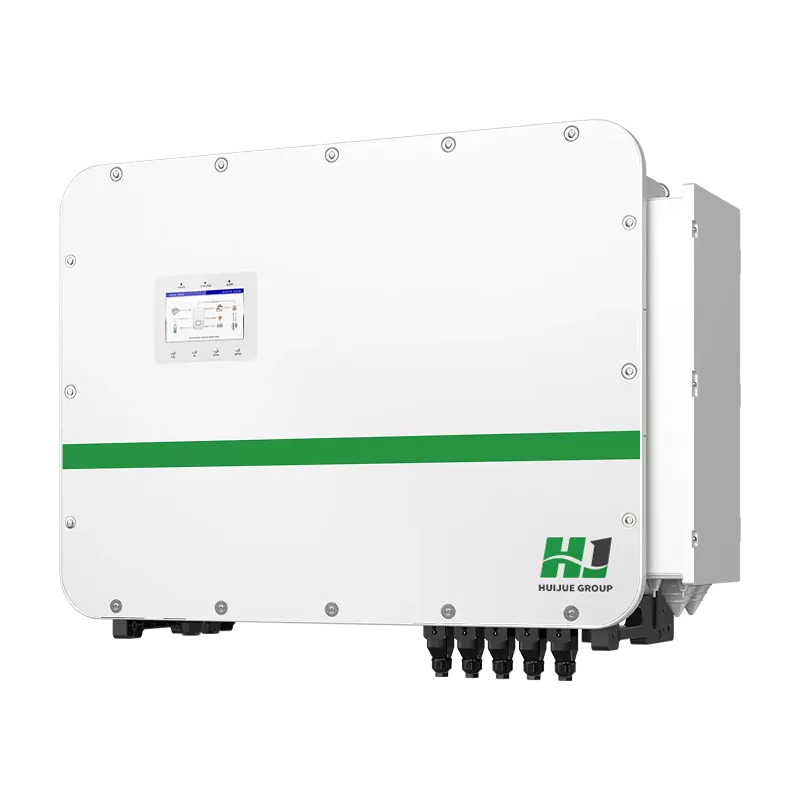

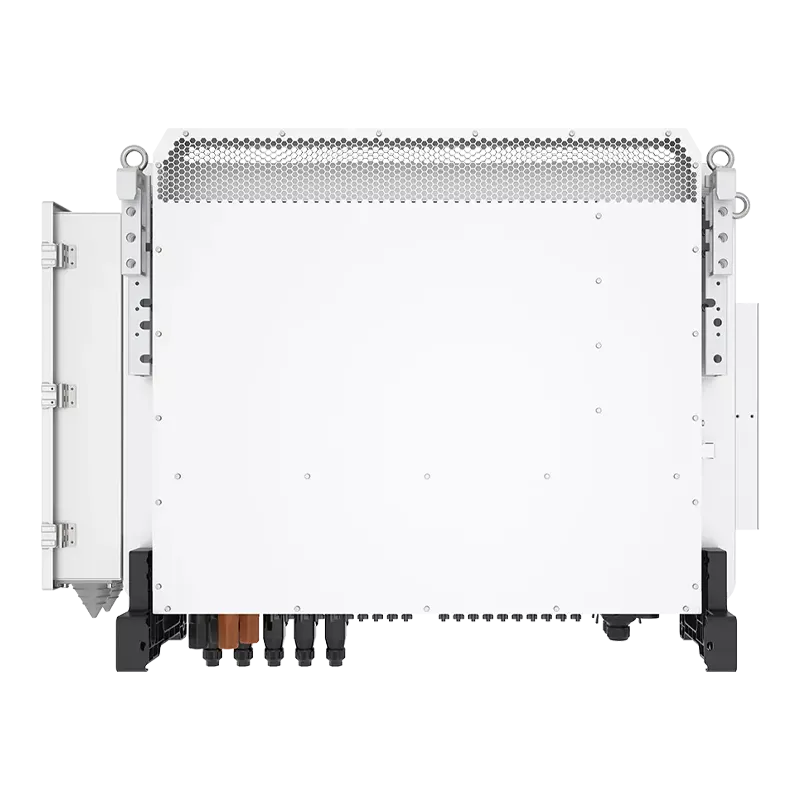

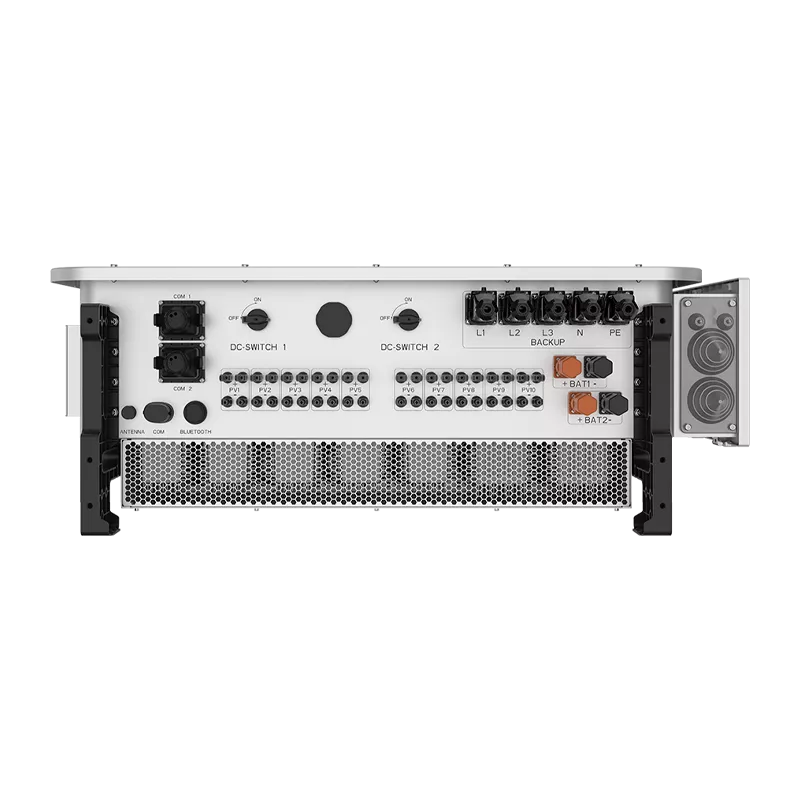

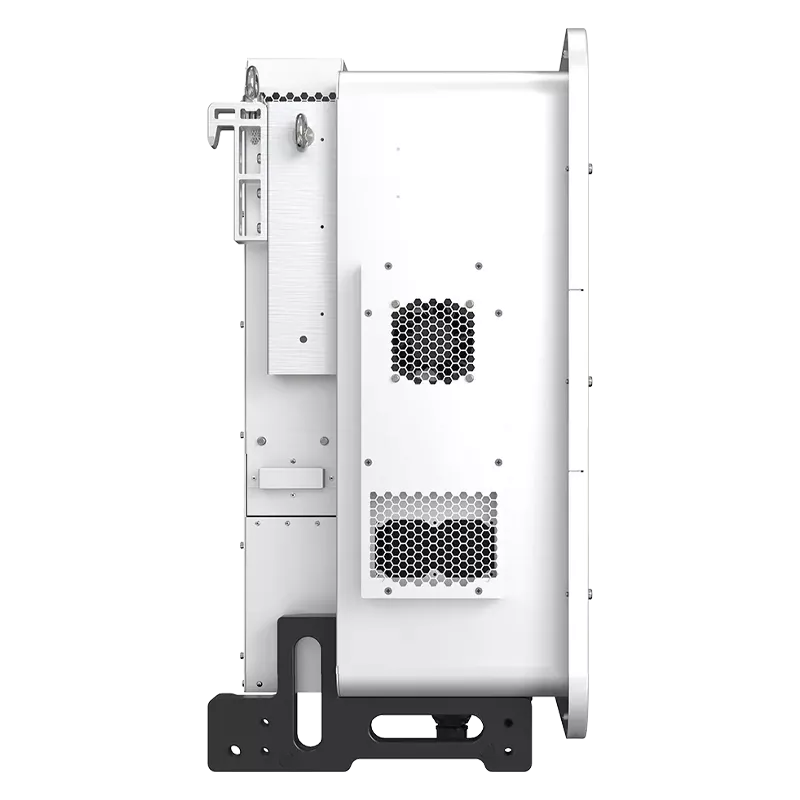

150 KW-250KW Hybrid Grid-Tied Inverter

Parameters

Production Model	HJ-IH48753T(E-15)	HJ-IH48803T(E-16)	HJ-IH48104T(E-17)	HJ-IH48124T(E-18)
PV Input Date
Max, Input Power	150KW	160 KW	200KW	250KW
MPPT Operating Voltage Range	150 – 950 V
Max.Short Circuit Current	10 × 42 A
Number of MPPT Trackers	10
Battery Input Data
Battery Voltage Range	300 – 950 V
Max.Charge/Discharge Current	200 A / 100 A + 100 A
Battery Type	li-ion
AC Data
Nominal Power	75kw	80kw	100kw	125kw
Nominal Voltage	3/N/PE, 220 V / 380 V, 230 V / 400 V
Nominal Frequency	50/60 Hz
Max.Current	114 A / 108.3 A	121.6 A / 115.5 A	151.9 A / 144.3 A	189.9 A / 180.4 A
Power Factor	> 0.99 (0.8 leading – 0.8 lagging)
Protection
Protection	Anti-islanding protection Output over current protection Short circuit protection Integrated DC switch DC reverse-polarity protection Surge protection Integrated AFCI 2.0
General Data
Operating Temperature Range	-25 ~ +60°C
Cooling	Intelligent fan-cooling
Relative Humidity	0 – 100%
Display	LCD
Communication	CAN, RS485-115200, Ethernet, Optional: Wi-Fi, Cellular, LAN
Installation	Wall-mounted
Dimension (WDH)	1174 × 814 × 400 mm
Weight	170 kg
Certification
Production Certification	IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011

Note: Specifications are subject to change without prior notice for product improvement. Data Sheet

Feature

Maximized Solar Energy Utilization

Supports up to 2x rated PV input, maximizing solar energy utilization.
High-Power PV Module Compatibility

Supports a maximum string input current of 21A, ensuring compatibility with high-power PV modules.
Battery Module Compatibility

Compatible with 100-314Ah battery modules, reducing overall system costs.
Flexible Battery Configuration

Two independent battery ports for flexible configurations and easy capacity expansion.
Overload Protection in Off-Grid Mode

Delivers 160% overload for 200ms in off-grid mode, ensuring stable startup of heavy loads.
