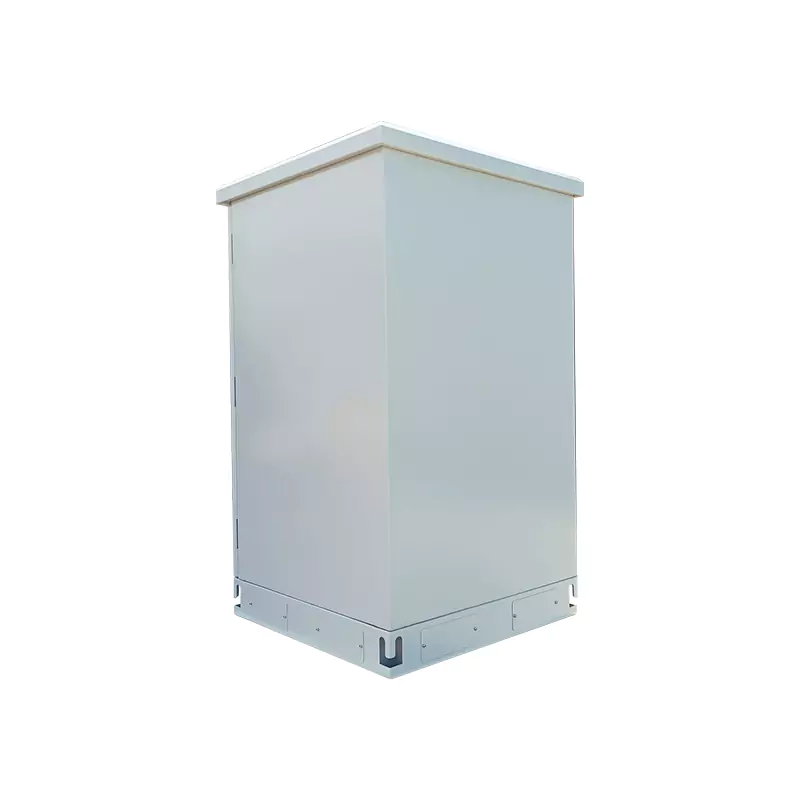

The floor-standing outdoor integrated cabinet is an outdoor integrated cabinet constructed using high-quality metal sheet materials. It integrates professional equipment, network communication devices, system power supplies, AC/DC power distribution, monitoring systems, temperature control equipment…
Send Message Get Price
| Product Model | HJ-OFVD20-01 | HJ-OFAD20-01 | HJ-OFVD20-02 | HJ-OFAD20-02 |
| Rack Capacity | 20U，19″rack | |||
| Specifications (Height x Width x Depth mm) | 1150-650-650 (100 mm base) | 1150-650-650 (100 mm base) | 1150-650-650 (100 mm base) | 1150-650-650 (100 mm base) |

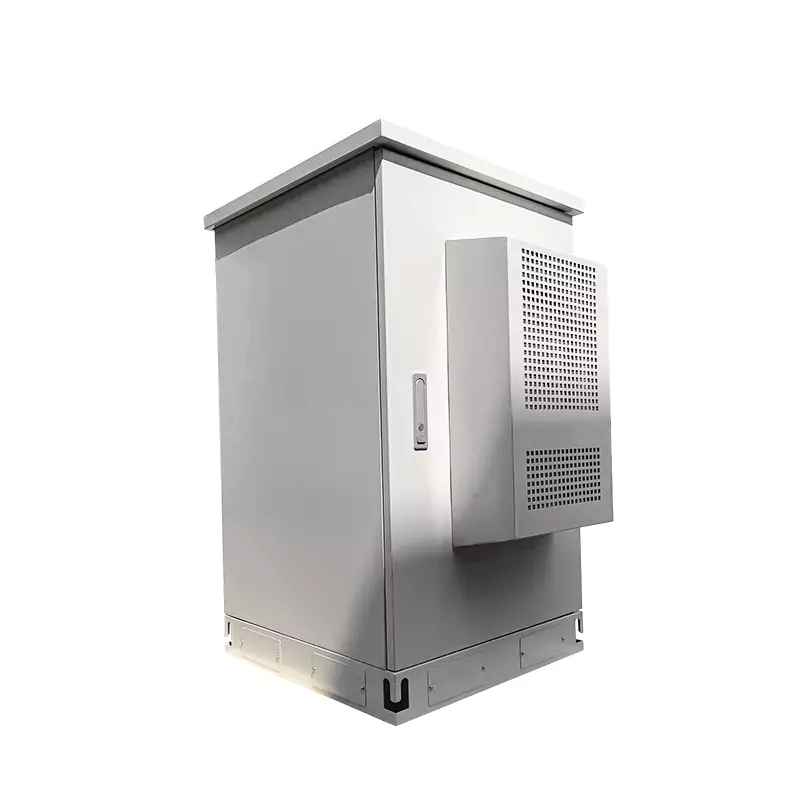

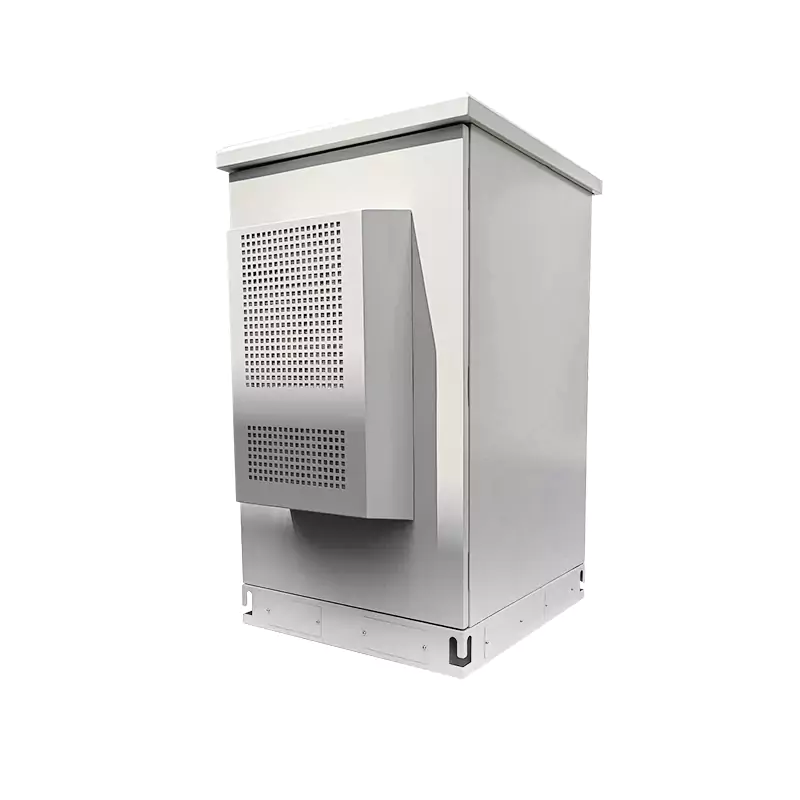

| Temperature Control Equipment | AC 220 V fan type (2 at the top/set) | AC 220 V 600 W air conditioning type | AC 220 V fan type (2 at the top/set) | AC 220 V 600 W air conditioning type |
| Door Opening Method | Front and rear doors | Front and rear doors | Front door | Front door |
| Lighting | AC 220V, 5W LED light, with access control switch | |||
| Shelves | Cold-rolled steel plate 1.2 mm, load capacity 50 kg | |||
| L-shaped Brackets | Cold-rolled steel sheet 1.5 mm | |||
| Base | 1.5 mm thick | |||
| Locks | Anti-theft structure, outdoor waterproof type, zinc alloy material, three-point fixed type | |||
| Power Distribution Unit | Communication circuit breaker: Input 32A/2P*1, Output 10A/1P*3, Surge arrester 40KA*1 | |||
| Packaging Method | Cardboard box + wooden pallet | |||
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet
EPS foam boards are used, featuring low thermal conductivity and high strength.

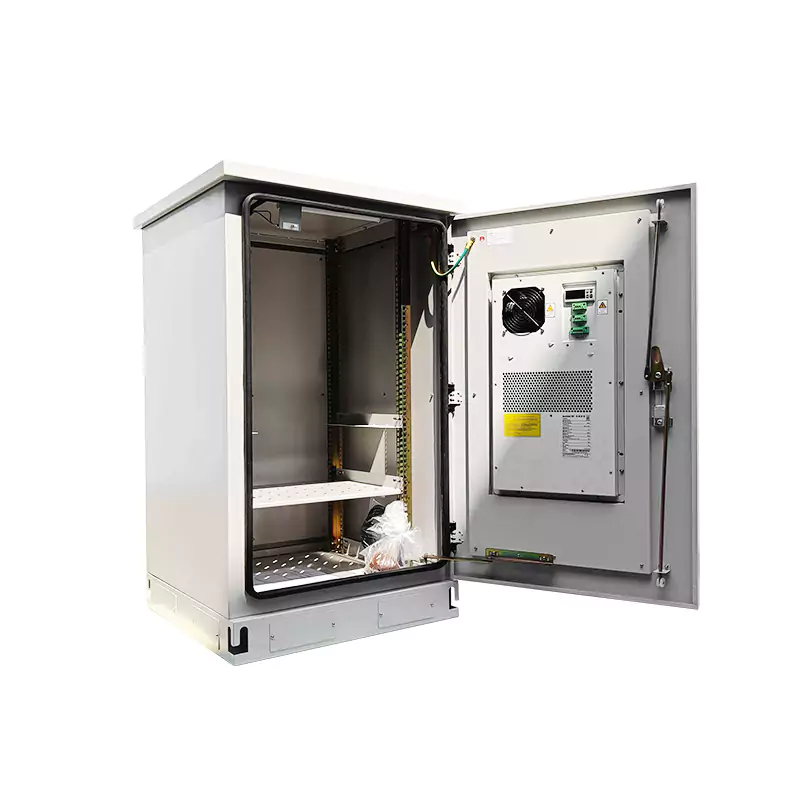

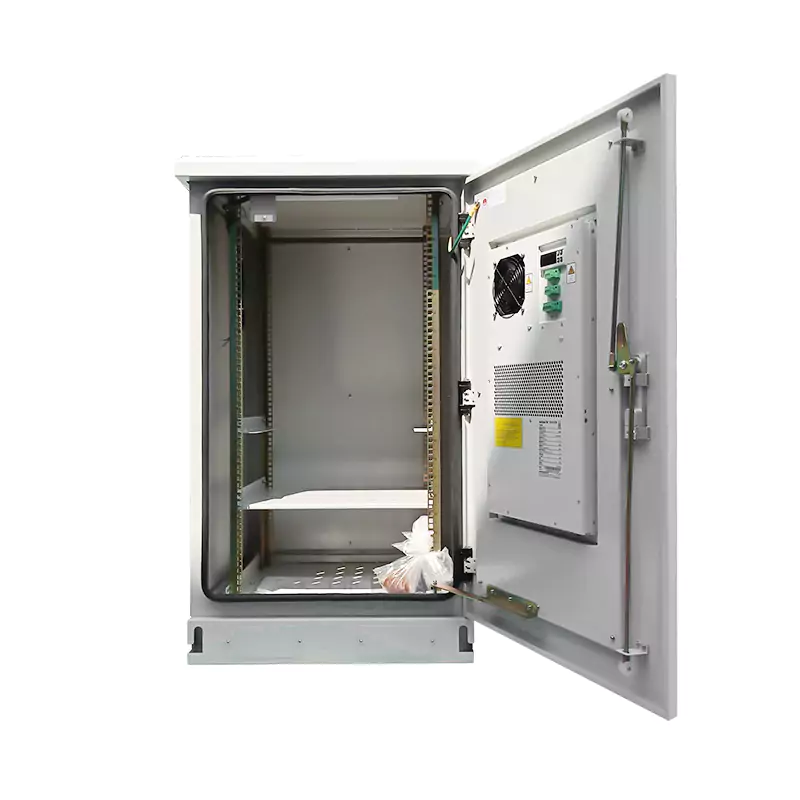

Columns, shelves, L-shaped brackets, lighting fixtures, door magnetic sensors, and installation accessories.
Circuit breakers, lightning arresters, sockets, switching power supplies, batteries, UPS, monitoring units, etc.
The cabinet is shipped fully assembled. Customers only need to secure the cabinet using the bottom mounting holes and install equipment in the reserved equipment space.
By standardizing the cabinet, common components are made into standard products. For non-standard orders, only the cabinet frame needs to be designed, and standard components can be assembled to complete the non-standard design, significantly reducing the non-standard design cycle and better meeting customer requirements for short delivery times.
Through analysis of standard modules, we have identified the most optimal solution, which can be implemented at the lowest possible cost. Factors such as materials, material thickness, surface treatment, manufacturability, installability, and versatility are all considered to achieve cost optimization while meeting customer requirements.
Primarily used in various outdoor environments such as rooftops, street sides, mountainous areas, railway lines, and high/low-temperature environments.
