What are some key parameters of energy storage systems?

Rated power is the total possible instantaneous discharge capacity of the system, usually in kilowatts (kW) or megawatts (MW). Energy is the maximum energy stored (power rate in a given time), usually described in kilowatt-hours (kWh) or megawatt-hours (MWH).

What are the application values of industrial and commercial energy storage systems?

Peak-valley arbitrage To reduce corporate electricity costs, utilize the difference in peak-valley electricity prices, charge in valley periods and flat periods, and discharge in peak and peak periods.

What information about the power-consuming enterprise is necessary when installing an energy storage power station?

Basic information: electricity type, basic electricity price, time-sharing period/time-sharing electricity price, and the company's electricity shutdown production situation;

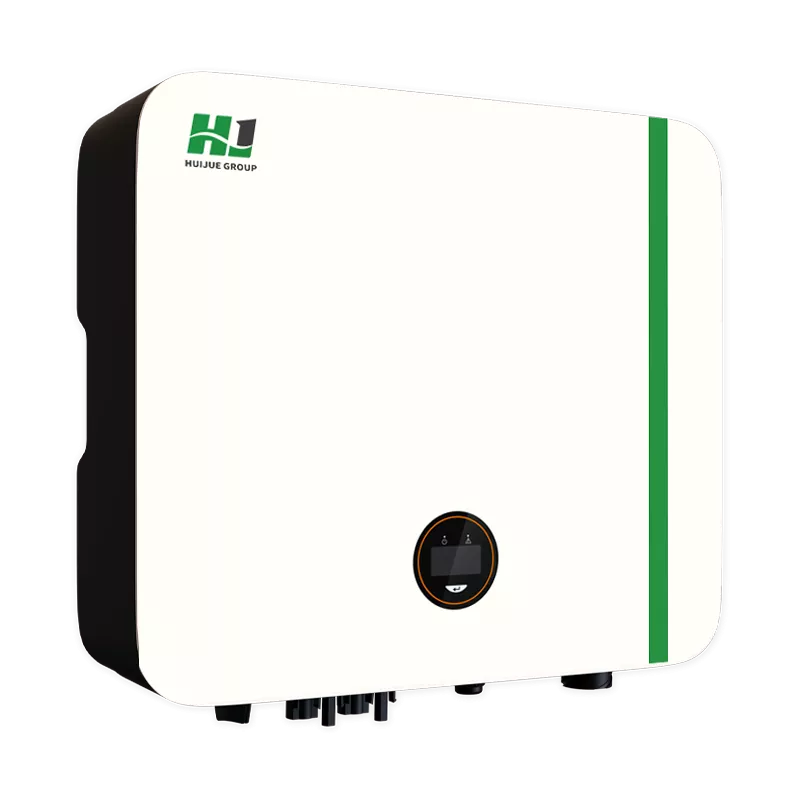

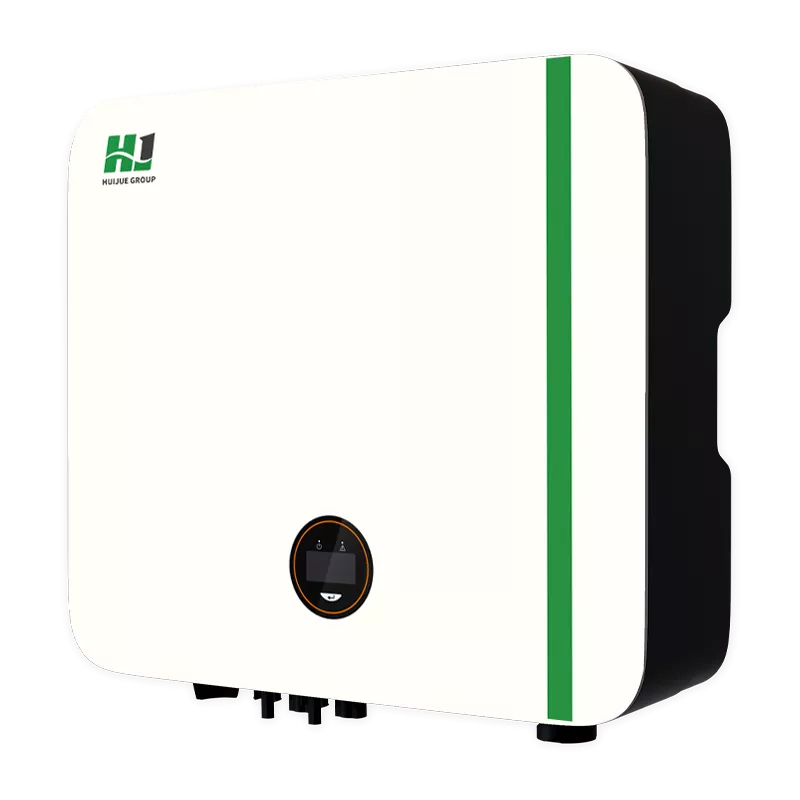

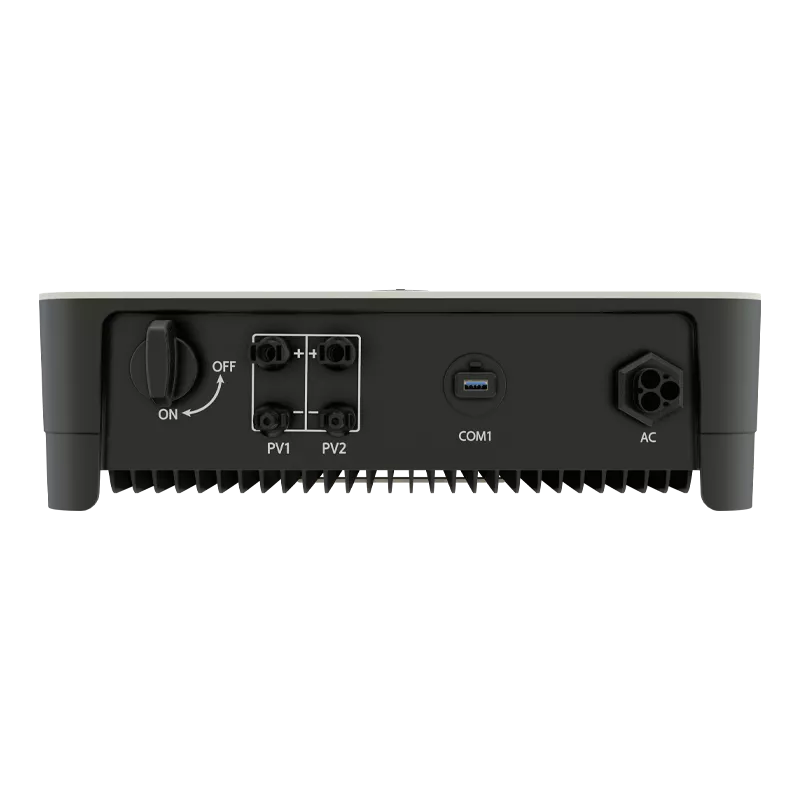

7KW High-Efficiency Single-Phase Grid-Tied Photovoltaic Inverter

Parameters

Production Model	HJ-IG4833S(E-20)
PV Input Date
Max, Input Power	7KW
MPPT Operating Voltage Range	200-500V
Max.Short Circuit Current	20A
Number of MPPT Trackers	1
AC Data
Nominal Power	3.6KW
Nominal Voltage	230V
Nominal Frequency	50HZ/60HZ
Max.Current	16A
Power Factor	0.8 leading …0.8 lagging
Protection
Protection	DC Reverse Polarity Protection Insulation Resistance Detection Surge Protection Over-temperature Protection Residual Current Protection Anti-islanding Protection AC Short-circuit Protection AC Over-voltage Protection
General Data
Operating Temperature Range	-30~60
Cooling	Natural Convection
Relative Humidity	0~100
Display	OLED
Communication	RS485/WiFi/GPRS/LAN
Installation	Wall-mounted
Protection Degree	IP66
Dimension (WDH)	327297114mm
Weight	6.5kg
Certification
Production Certification	IEC, CE

Note: Specifications are subject to change without prior notice for product improvement. Data Sheet

Feature

Efficient Higher Revenue

150% DCInput Oversizing;Wide MPPT voltage range: 50V-550V;Max.input current per string: 20A,Compatible with high power modules;
Intelligent Simple 0&M

Smart l-V Curve Diagnosis Function: locate PV string faults accurately and automatically detect faults;Intelligent Fault Detection: Ac side voltage and current waveforms real-time recorded, fast fault location
Support RS485/WiFi/4G: remote monitoring and operation via PC or mobile phones;
Reliable Worry Free

IP66 Protection Degree:support outdoor installation;AFCl Function (Optional): when an arc-fault is detected the inverter immediately stops operation;

Solution

Base station stacked photovoltaic system

Stacked MPPT photovoltaic controller expands PV capacity for base stations. Series-connected PV modules feed the controller, output -48V DC to loads. Supports wall/pole mounting; available in Outdoor and Rack-mount types.

Stacked MPPT photovoltaic controller is a product specially developed for photovoltaic energy expansion in base station scenarios. The series connection technical solution consists of PV modules, a stacked MPPT controller, and a DC ammeter; each photovoltaic module is connected in series to the cont…

Base Station Equipment Room Energy Scenario

Site hybrid energy series focuses on green, efficient, reliable, and intelligent power solutions. It includes integrated supplies, AC-DC converters, 5G power boxes, and hybrid cabinets, supporting PV, wind, and energy storage to create a flexible “New Energy + Grid + Storage” system.

site hybrid energy product series focuses on green low-carbon, high efficiency, reliability, and intelligent coordination. It covers all-scenario power equipment including integrated power supplies, AC-DC converters, outdoor 5G power boxes, indoor/outdoor hybrid energy cabinets, and equipment room p…

Hybrid Energy Communication Site

It covers all-scenario power equipment including integrated power supplies, AC-DC converters, outdoor 5G power boxes, indoor/outdoor hybrid energy cabinets, and equipment room power cabinets. It fully supports new energy sources such as PV and wind power, building a hybrid power distribution system of “New Energy + Grid Power + Energy Storage.

Hybrid energy product series focuses on green low-carbon, high efficiency, reliability, and intelligent coordination. It covers all-scenario power equipment including integrated power supplies, AC-DC converters, outdoor 5G power boxes, indoor/outdoor hybrid energy cabinets, and equipment room power …

Compact Communication Site

Compact Communication Site is an integrated and intelligent core equipment of the telecom power system, widely used in mobile base stations, data centers, and other scenarios.

Compact Communication Site is an integrated and intelligent core equipment of the telecom power system, widely used in mobile base stations, data centers, and other scenarios. It integrates power supply, power distribution, backup power, wall/pole mounting, and monitoring into one unit, providing st…

PV-Replacing-Diesel Scenario

Stacked MPPT photovoltaic controller is designed for diesel-powered base stations to expand PV capacity, add energy storage, and cut diesel use. Series-connected PV modules feed the controller, which outputs -48V DC to loads. Excess energy charges storage; shortages are supplemented, boosting green energy and efficiency.

Stacked MPPT photovoltaic controller is a product specially developed for existing base stations using diesel generator scenarios, to expand PV capacity, add energy storage, and reduce diesel consumption. The series-connection technical solution consists of PV modules, a Stacked MPPT controller, a D…
