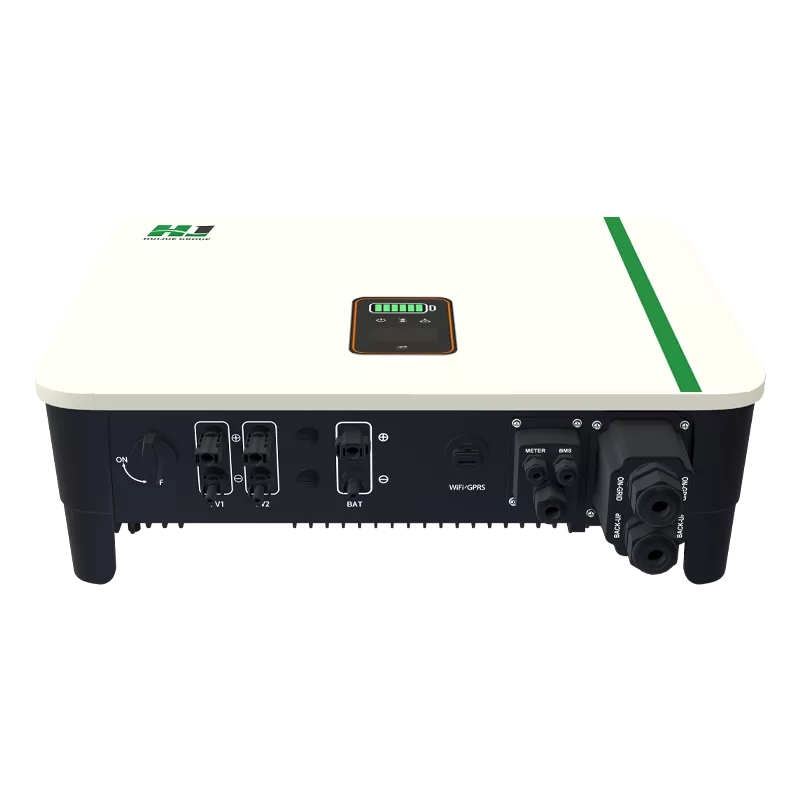

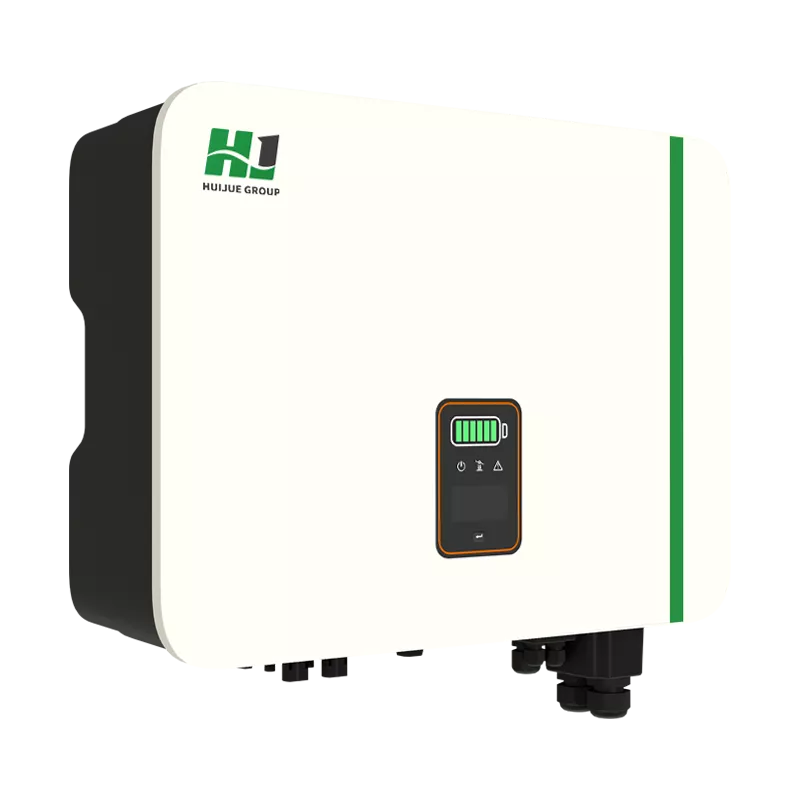

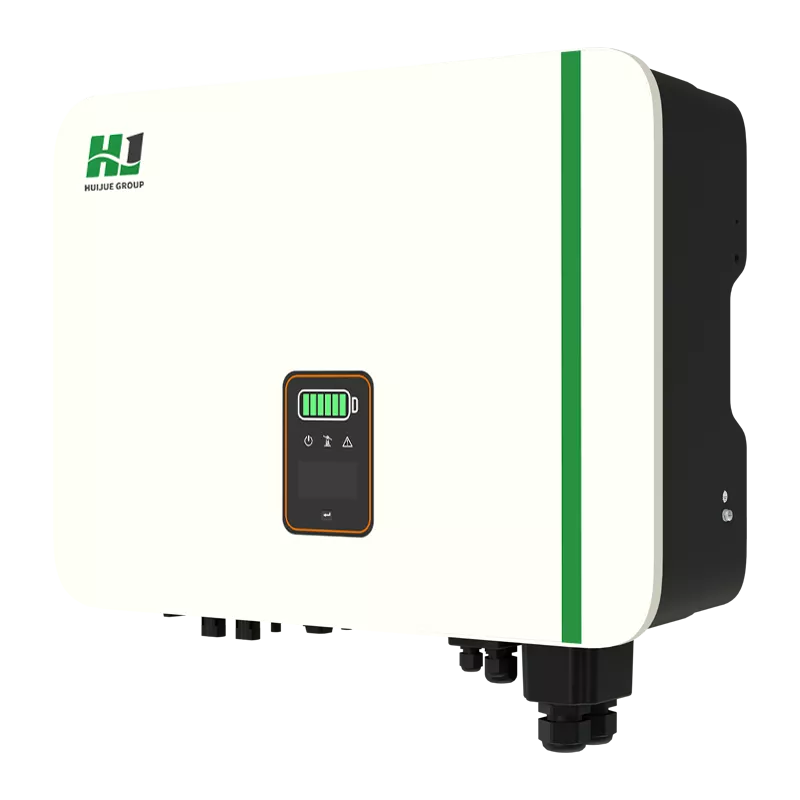

8KW-10.4KW Hybrid Grid-Tied Inverter

Parameters

Production Model	HJ-IH4853T(E-11)	HJ-IH4883T(E-13)
PV Input Date
Max, Input Power	8KW	10.4KW
MPPT Operating Voltage Range	150-850V	200-850V
Max.Short Circuit Current	16/16A
Number of MPPT Trackers	2
Battery Input Data
Battery Voltage Range	140-750V
Max.Charge/Discharge Current	25/25A
Battery Type	Li-ion / Lead-acid
AC Data
Nominal Power	5KW	8KW
Nominal Voltage	3L/N/PE, 230/400V
Nominal Frequency	50/60 45-55/55-65 Hz
Max.Current	8.3A	13.3A
Power Factor	0.8 leading…0.8 lagging
Protection
Protection	DC Reverse Polarity Protection Integrated Battery Input Reverse Connection Protection Integrated Insulation Resistance Detection Integrated DC Switch Optional Surge Protection Integrated Over-temperature Protection Integrated Residual Current Protection Integrated Anti-islanding Protection Integrated AC Over-voltage Protection Integrated Overload Protection Integrated AC Short-circuit Protection Integrated
General Data
Operating Temperature Range	-30~60
Cooling	Natural Convection
Relative Humidity	0~100%
Display	OLED/LED
Communication	WiFi / LAN (Optional)
Installation	Wall-mounted/bracket
Dimension (WDH)	550410175mm
Weight	26~28kg
Certification
Production Certification	IEC62109、IEC62116、VDE4105、VDE0126、AS4777、RD1699、NBR16149、IEC61727、IEC60068、IEC61683、EN50549、EN61000

Note: Specifications are subject to change without prior notice for product improvement. Data Sheet

Feature

Maximized Solar Energy Utilization

Supports up to 2x rated PV input, maximizing solar energy utilization.
High-Power PV Module Compatibility

Supports a maximum string input current of 21A, ensuring compatibility with high-power PV modules.
Battery Module Compatibility

Compatible with 100-314Ah battery modules, reducing overall system costs.
Flexible Battery Configuration

Two independent battery ports for flexible configurations and easy capacity expansion.
Overload Protection in Off-Grid Mode

Delivers 160% overload for 200ms in off-grid mode, ensuring stable startup of heavy loads.
