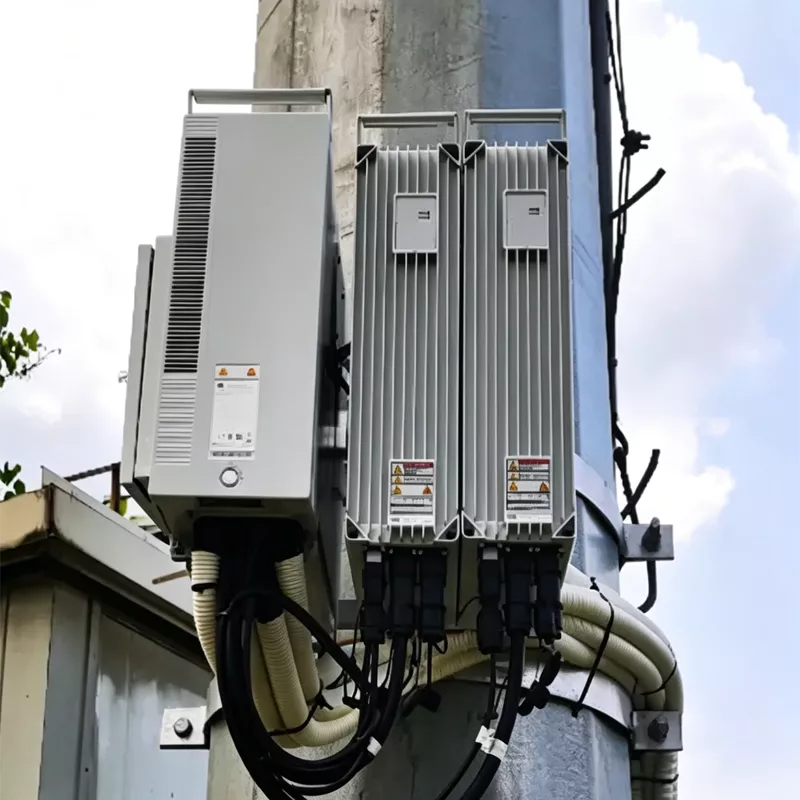

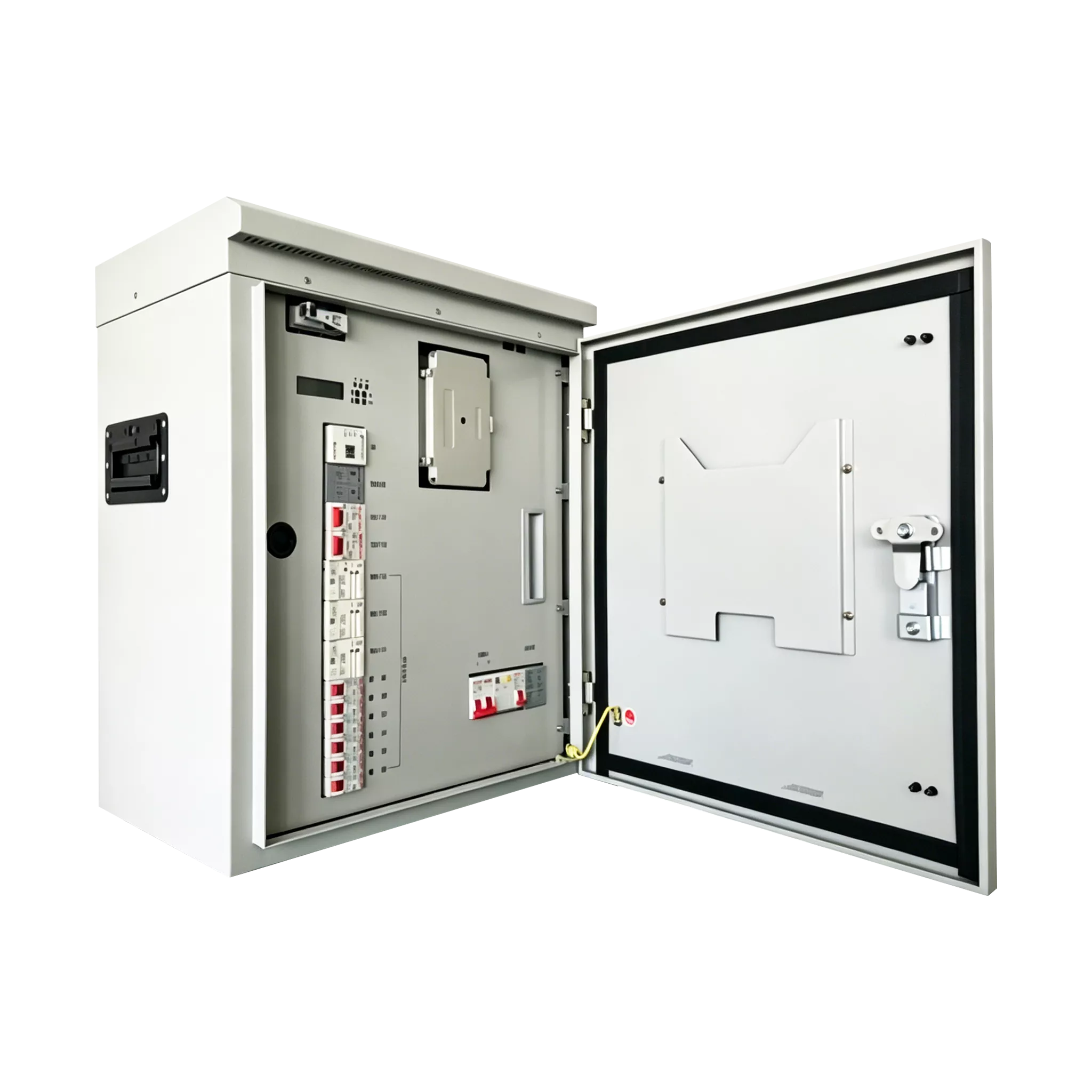

The Compact Outdoor Power Box is a highly integrated, intelligent electro-optical hybrid power system combining power modules, monitoring units, AC distribution units, DC distribution units, lithium batteries, smart switches, FSU, and fiber splice trays. It effectively addresses power supply, backup…
Send Message Get Price
| Model | HJDUM01-048(5000W) | HJDUM01-048(900W) |
| Capacity | 5000W | 9000W |
| Module Specifications | Full config: 2×48V/50A modules | Full config: 3×48V/50A modules |
| Dimensions | 520(H)*390(W)*250(D)mm | 570(H)*500(W)*330(D)mm |
| AC Input | 63A/2P*1 | 63A/2P (with residual current protection) ×1 |
| Lightning Protection Device | AC lightning protection + DC lightning protection | |
| DC Output | MCB 63A×3; MCB 32A×6 | MCB 63A×6; MCB 32A×6; |
| Battery Interface | 1× internal + 1× external battery interface | |
| Communication Method | Wireless NB-IoT or 4G | |
| Lithium Battery | Includes 1×100Ah lithium battery | |
| Fiber Transmission | Fiber splice tray + passive WDM slot | |
| Protection Rating | IP55 | |
Note: Specifications are subject to change without prior notice for product improvement.
Primarily suited for street-pole micro cell coverage, indoor distributed base station coverage, rooftop base station coverage, and outdoor macro base station coverage in carrier network deployments. It powers AAU/RRU-side ancillary equipment, provides backup power, and enables fiber access. Especially suitable for upgrading existing power systems with limited expansion capability, offering short construction periods and lower build costs.
