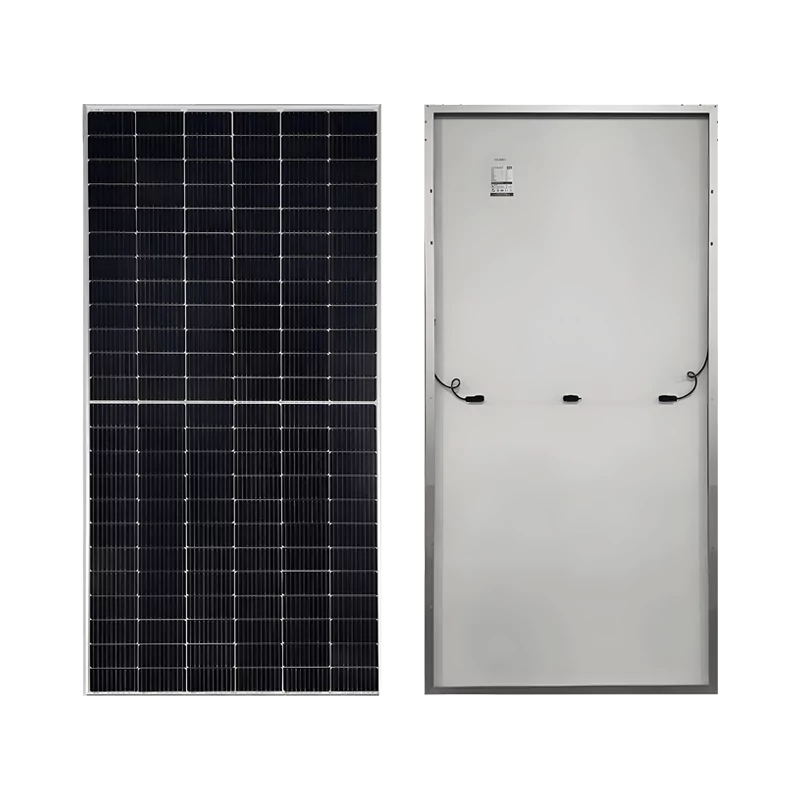

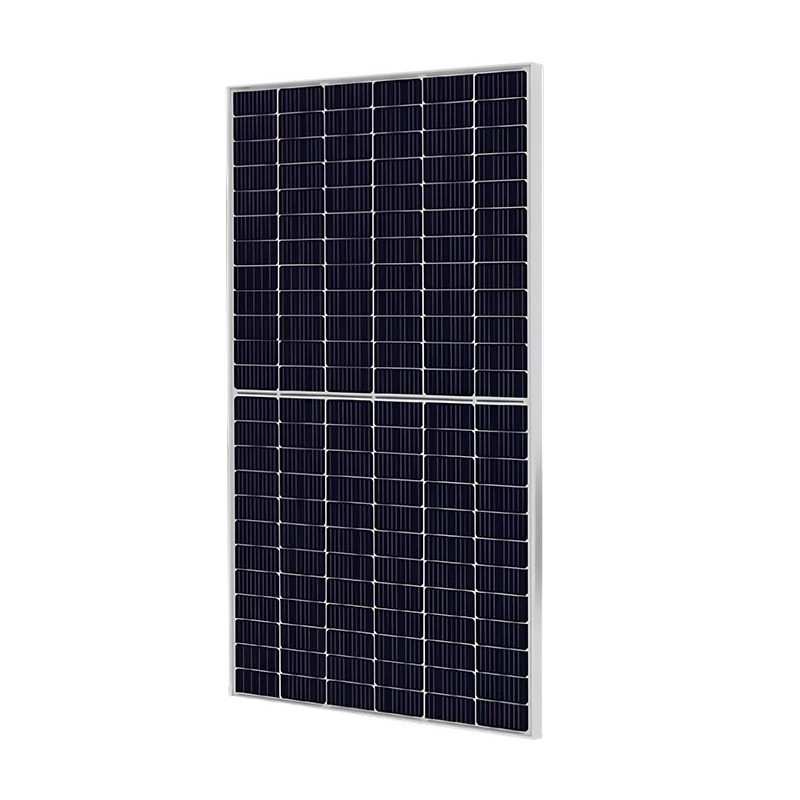

HuiJue Group's HJT-PV series PV module is a highly efficient and durable solar module. Using monocrystalline silicon cells, it can achieve better energy output even under low light conditions.
Send Message Get Price
| Electrical Data(STC) | ||||||
| Maximum Power Pmax(W) | 675 | 680 | 685 | 690 | 695 | 700 |
| Maximum Power Voltage Vmp(V) | 39.4 | 39.6 | 39.8 | 40.1 | 40.3 | 40.5 |
| Maximum Power Current Imp(A) | 17.12 | 17.16 | 17.19 | 17.23 | 17.25 | 17.28 |
| Open Circuit Voltage Voc(V) | 47.2 | 47.4 | 47.7 | 47.9 | 48.3 | 48.6 |
| Short Circuit Current Isc(A) | 18.14 | 18.18 | 18.21 | 18.25 | 18.28 | 18.32 |
| Module Efficiency (%) | 21.7 | 21.9 | 22.1 | 22.2 | 22.4 | 22.5 |
| Output Power Tolerance (W) | 0~+5 | |||||
| STC: 1000W/m2 Irradiation,25°C Module Temperature and and AM 1.5g Spectrum | ||||||
| Electrical Characteristics with different power bin(reference to 10% Irradiance ratio | ||||||
| Total equivalent Power – Pmax(W) | 729 | 734 | 740 | 745 | 751 | 756 |
| Maximum Power Voltage Vmp(V) | 39.4 | 39.6 | 39.8 | 40.1 | 40.3 | 40.5 |
| Maximum Power Current Imp(A) | 18.49 | 18.53 | 18.57 | 18.61 | 18.63 | 18.66 |
| Open Circuit Voltage Voc(V) | 47.2 | 47.4 | 47.7 | 47.9 | 48.3 | 48.6 |
| Short Circuit Current Isc(A) | 19.59 | 19.63 | 19.67 | 19.71 | 19.74 | 19.78 |
| Electrical Data(NOCT) | ||||||
| Maximum Power Pmax(W) | 514 | 517 | 521 | 526 | 530 | 534 |
| Maximum Power Voltage Vmp(V) | 37 | 37.2 | 37.3 | 37.7 | 37.8 | 38 |
| Maximum Power Current Imp(A) | 13.89 | 13.91 | 13.94 | 13.96 | 14.02 | 14.04 |
| Open Circuit Voltage Voc(V) | 44.7 | 44.9 | 45.2 | 45.4 | 45.8 | 46 |
| Short Circuit Current Isc(A) | 14.62 | 14.65 | 14.67 | 14.71 | 14.73 | 14.76 |
| Mechanical Characteristics | |
| Number of Cells(Half-cut) | 132(12×11) |
| Dimension LxWxH(mm) | 2384x1303x33(93.86×51.30×1.30 inch) |
| Weight(kg) | 38.3(84.5lb) |
| Front Glass | High Transmission,Low Iron,Tempered ARC Glass |
| Back-sheet | Heat Strengthened Glass(White Grid Glass) |
| Frame | Silver White,Anodized Aluminum Alloy |
| Junction Box | IP68 Rated |
| Cable | TUV,1x4mm2;Anode:350mm,Cathode:230mm |
| Number of Diodes | 3 |
| Wind/Snow Load | 2400Pa/5400Pa |
| Connectors | MC Compatible |
| Temperature Ratings | |
| Nominal Operating Cell Temperature(NOCT) | 45±2°C |
| Temperature Coefficient of Isc | +0.04%/°C |
| Temperature Coefficient of Voc | -0.25%/°C |
| Temperature Coefficient of Pmax | -0.30%/°C |
| Maximum Ratings | |
| Operating Temperature | -40 to +85°C |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse Rating | 30A |
| Limiting Reverse Current | 30A |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet
High purity monocrystalline silicon cells are used to maximize energy generation
Rugged, weather-resistant frame encapsulation to withstand harsh environmental conditions
Good power generation efficiency under low-light or cloudy conditions
Reduces light reflection, improves light absorption and increases energy efficiency
Residential rooftop solar systems
Commercial buildings for sustainable energy integration
Industrial facilities looking to offset electricity costs
Off-grid applications in remote locations requiring reliable power
