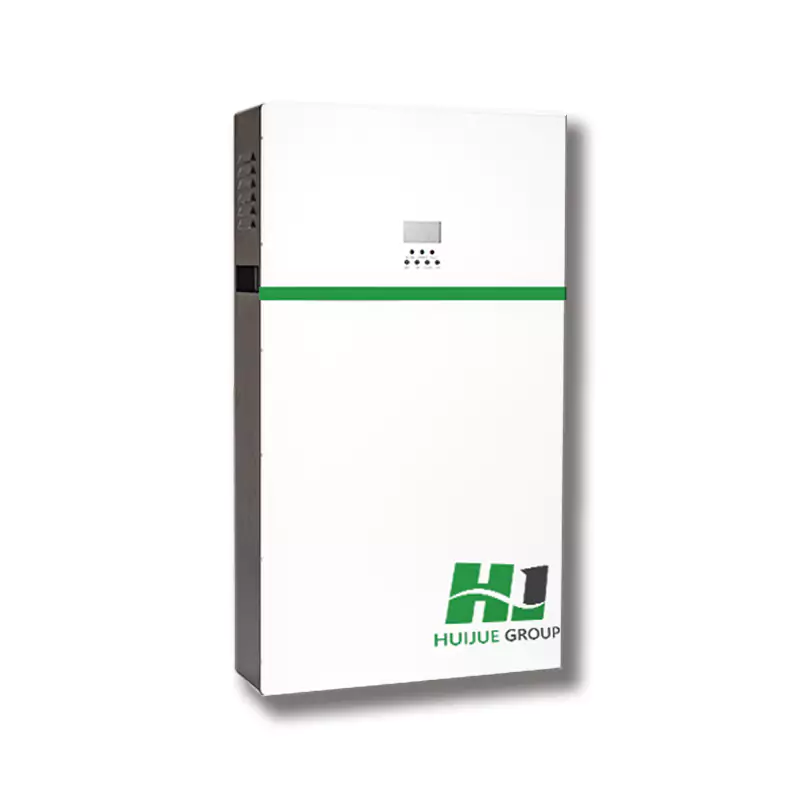

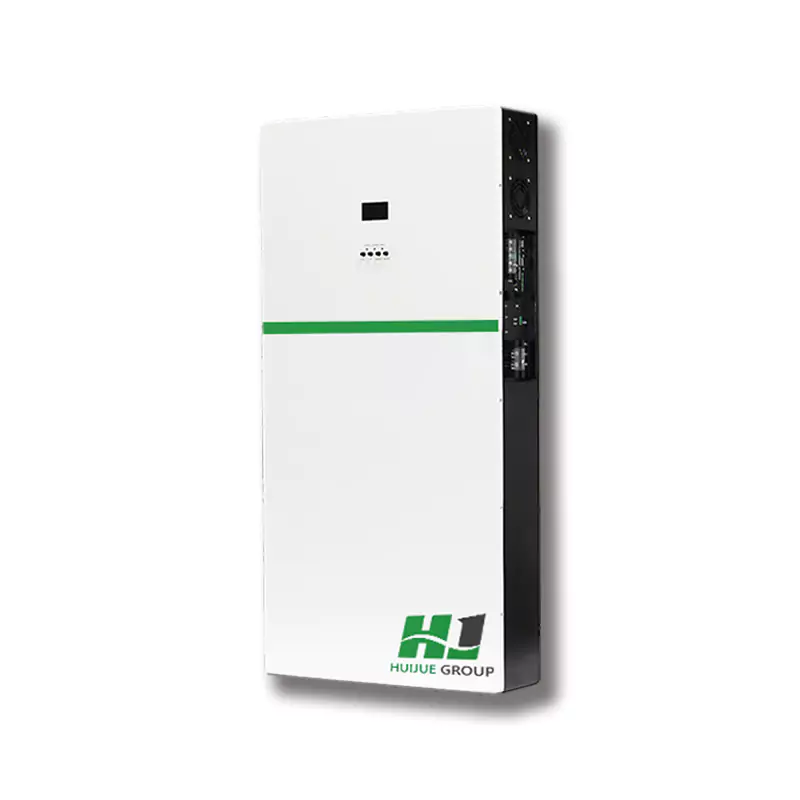

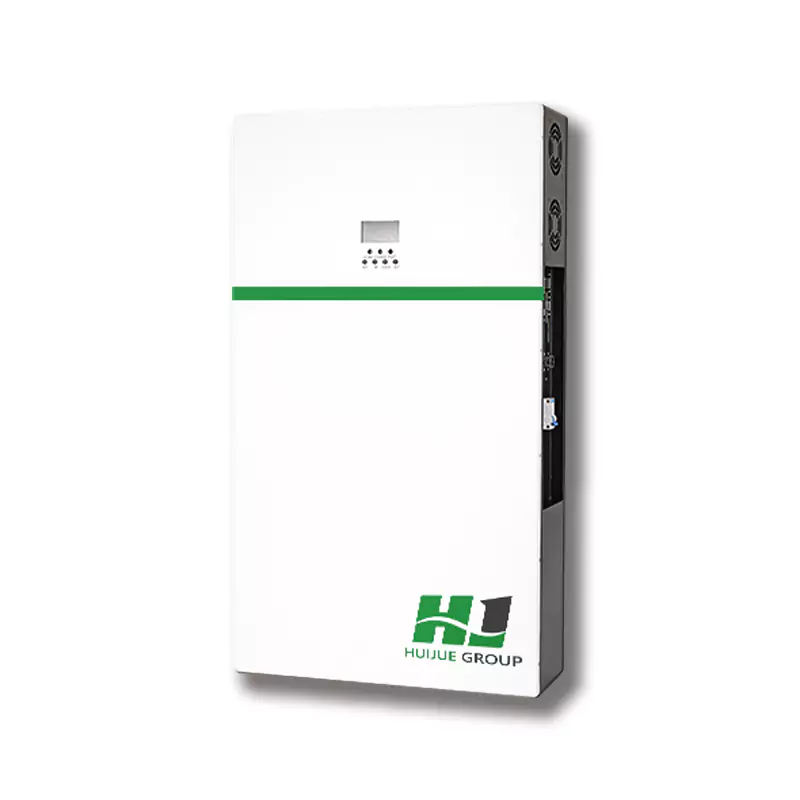

The all-in-one machine, integrating multiple functions, designed for scenarios requiring efficient and convenient operation, suitable for various commercial and office environments.
Send Message Get Price
| Product model | HJ-H05-O05(B-19) | HJ-H10-O05(B-20) | |
| No. | Item | Spec | Spec |
| Battery parameters | Cell | LiFeCoPO4 3.2V/100Ah | LiFeCoPO4 3.2V/100Ah |
| Array mode | 16S1P | 16S2P | |
| Rated capacity | 51.2V100Ah | 51.2V200Ah | |
| Capacity | 5.12kWh | 10.24kWh | |
| Operating voltage | 40-58.4V | 40-58.4V | |
| Standard charging current | 100A | 100A | |
| Communication port | RS485/CAN/232 | RS485/CAN/232 | |
| PV parameters | PV input power | 5500W | 5500W |
| PV input voltage range | 120~500V | 120~500V | |
| Number of MPPTs | 1 | 1 | |
| AC parameters | AC input voltage rating | 220V/230V/240VAC (L+N+PE) | 220V/230V/240VAC (L+N+PE) |
| AC input voltage range | 90~280VAC±3V(APL);170~280VAC±3V(UPS); | 90~280VAC±3V(APL);170~280VAC±3V(UPS); | |
| AC input frequency | 50HZ/60HZ (Adaptive) | 50HZ/60HZ (Adaptive) | |
| Rated output power | 5000W | 5000W | |
| Rated output voltage | 220V/230V/240VAC (L+N+PE) | 220V/230V/240VAC (L+N+PE) | |
| Waveform | Pure swirl | Pure swirl | |
| Transmission time(adjustable) | 10 ms for computers(UPS mode) and20 ms for home devices(APL mode). | 10 ms for computers(UPS mode) and20 ms for home devices(APL mode). | |
| Peak power | 10000VA | 10000VA | |
| Overload capacity | Battery Mode: 21s@105%~150% load 11s@150%~200% load 400ms@>200% load | Battery Mode:21s@105%~150% load11s@150%~200% load400ms@>200% load | |
| Maximum efficiency | >98% | >98% | |
| System Parameters | Net weight | 58Kg | 100Kg |
| Package weight | 85Kg | 130Kg | |
| Net size(H*W*D) | 850*480*160(mm) | 1100*540*160 (mm) | |

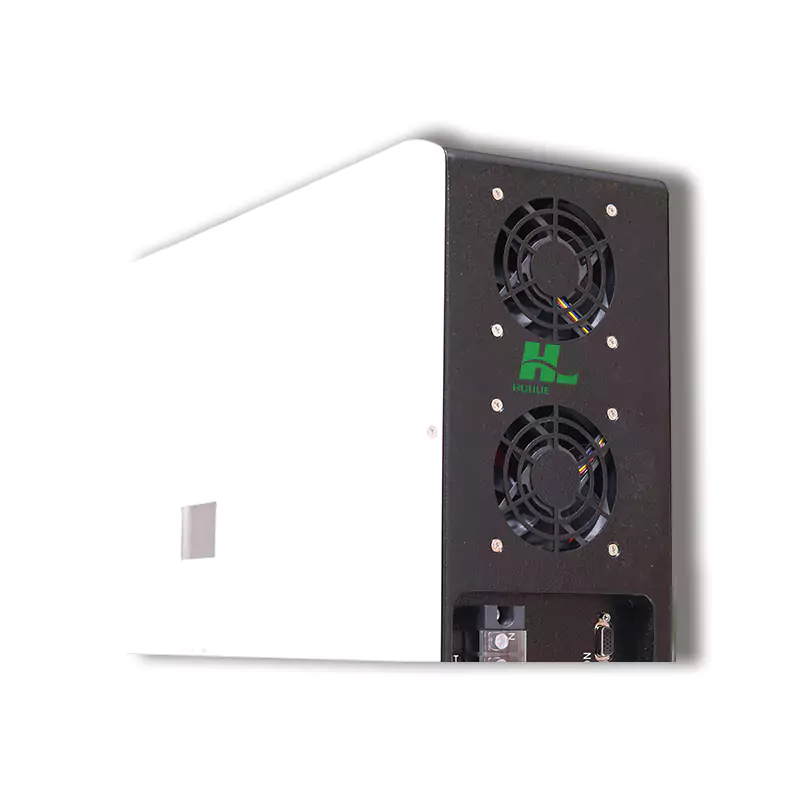

| Cooling method | Forced air cooling | Forced air cooling | |
| Operating environment | Charge:0℃~55℃/ Discharge: – 20℃~60℃/ Storage:-10℃~45℃ | Charge:0℃~55℃/ Discharge: – 20℃~60℃/ Storage:-10℃~45℃ | |
| Running humidity | 5~95%, Relative humidity | 5~95%, Relative humidity | |
| Installation type | Wall-mounted | Wall-mounted | |
| Communication mode | RS485/WIFI/4G | RS485/WIFI/4G | |
| Authentication | IEC62619、UN38.3、MSDS | IEC62619、UN38.3、MSDS | |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet
High safety and long service life, using consistent, safe, and reliable lithium iron phosphate battery cells, suitable for long-term use.
Integrated solution, supporting simultaneous connection of loads, batteries, power grids, diesel generators, and photovoltaics.
Integrated EMS function, equipped with a high-performance processor, providing safe and stable power supply and maximizing new energy utilization.
Can be flexibly installed according to the user's space layout, both practical and aesthetically pleasing.
With its high efficiency, flexibility, and safety, the stand-alone integrated system provides an ideal energy management solution for households and small commercial users, helping them achieve a green and low-carbon lifestyle.
