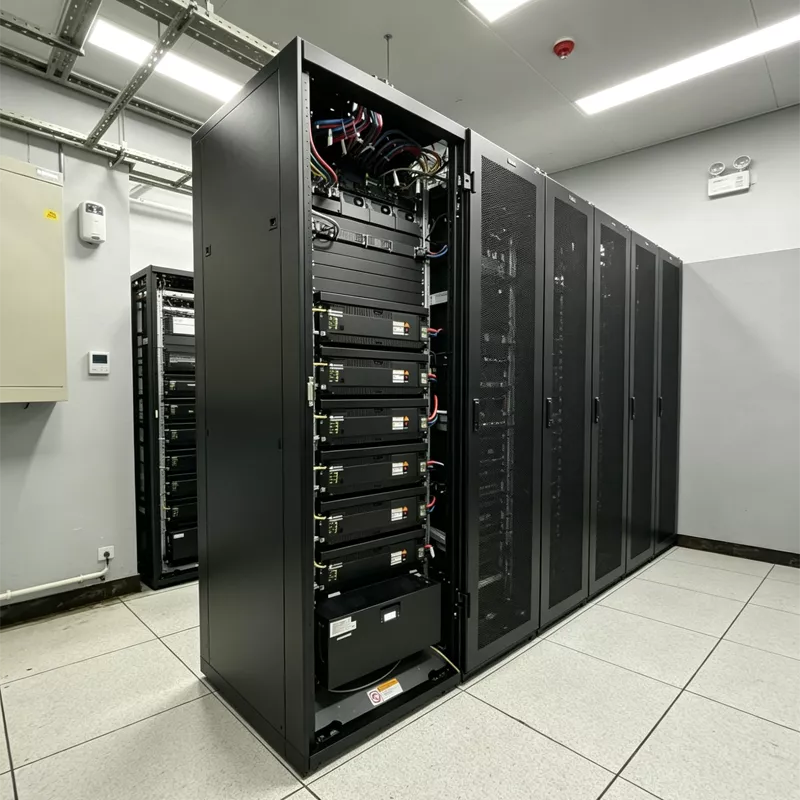

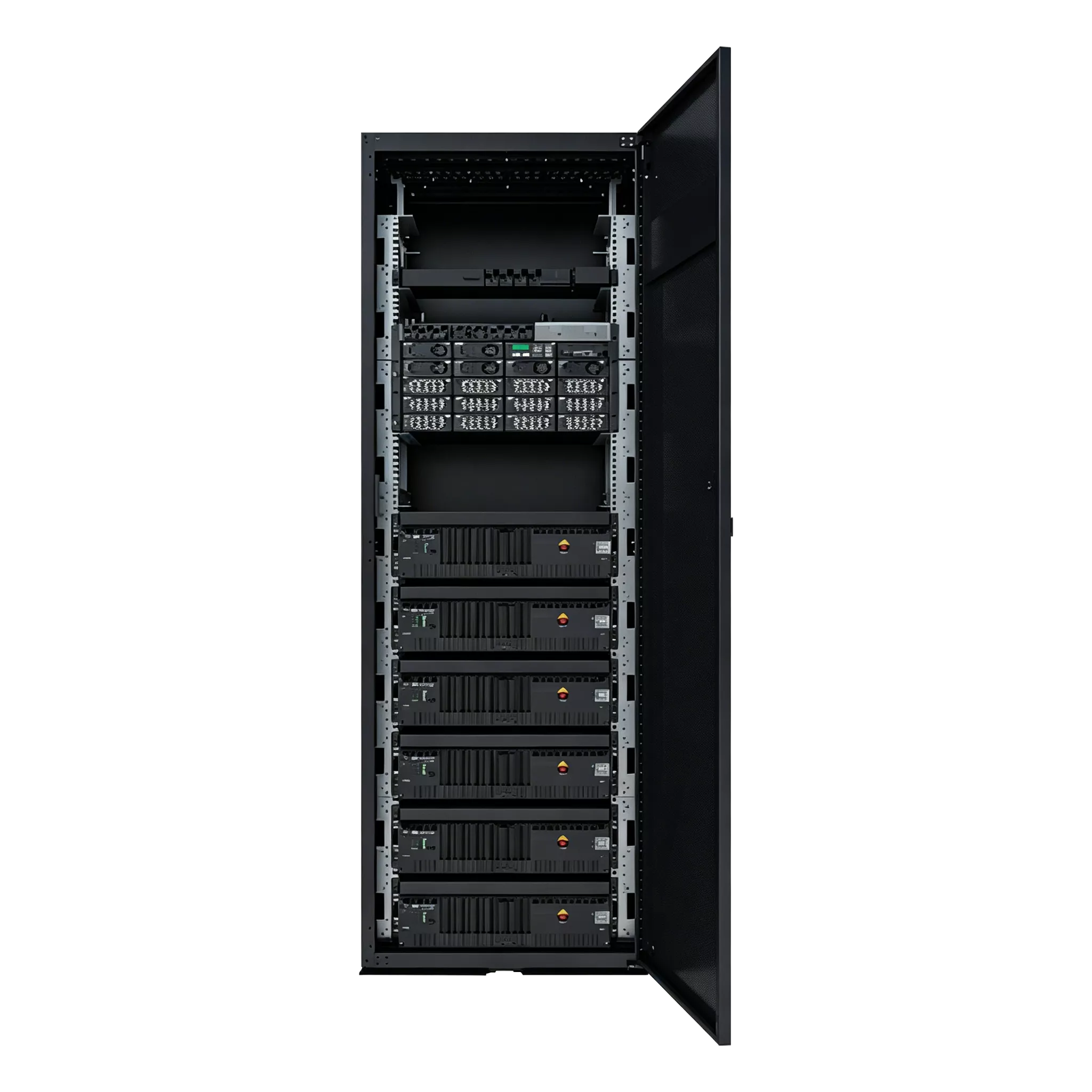

Indoor Hybrid Energy Cabinet

Parameters

Product Parameters

Base Station Energy System Specifications
Product Model		HJ-CHI-18030-W	HJ-CHI-36040-W
Cabinet Parameters	Dimensions	1600mm600mm600mm	2200mm700mm700mm
	Application Scenario	Indoor Floor-Standing	Indoor Floor-Standing
	Weight	≤95 kg (excluding battery)	≤145 kg (excluding battery)
Input Characteristics	AC Input	AC 380V/220V, 50Hz; MCB 63A/4P; SPD ×1; Output 16A ×1 (optional)	AC 380V/220V, 50Hz; MCB 63A/4P; SPD ×1; Output 16A ×1 (optional)
Input Characteristics	PV/Wind Input	Supported, optional	Supported, optional
Max. Power Supply	Capacity	18KW(300A)	36KW(600A)
Max. Power Supply	Efficiency	93% (96% optional)	93% (96% optional)
Rectifier	Single Module Spec	48V/50A module, 75A optional	48V/50A module, 75A optional
	Total Capacity	Max. 18 kW (300A)	Max. 36 kW (600A)
		Note: Combined rectifier + PV capacity is 300A; when rectifiers are fully populated, no PV capacity is available	Note: Combined rectifier + PV capacity is 300A; when rectifiers are fully populated, no PV capacity is available
PV Controller (MPPT)	Single Module Spec	48V/50A module, 75A optional	48V, 50A or 75A optional
	MPPT Input Voltage	60~150V, optional (200V~400V)	60~150V, optional (200V~400V)
	Total Capacity	Max. 18 kW (300A)	Max. 36 kW (600A)
PV Modules	Max. PV Power (W)	Recommended 9 kW (3~18 kW optional)	Recommended 18 kW (3~36 kW optional)
Battery Parameters	Battery Rated Voltage (V)	48V(40~60V)	48V(40~60V)
	Max. Charge/Discharge Current (A)	90A (C-rate 0.3C)	180A (C-rate 0.3C)
	Capacity	30KWh	40KWh
Output Characteristics	Bypass AC Output	220/230Vac（380/400Vac)	220/230Vac（380/400Vac)
	DC 48V Output Voltage	43.2V DC ~ 58V DC (default 53.5V DC)	43.2V DC ~ 58V DC (default 53.5V DC)
	Rated Output Power	Max. 18 kW (300A)	Max. 36 kW (600A)
	Peak Efficiency	96%	96%
	DC Output Interface	MCB: 125A×2, 63A×2, 32A×2, 16A×2 (configurable per customer)	MCB: 125A×2, 63A×2, 32A×2, 16A×2 (configurable per customer)
Application Scenario	/	Grid-tied / Off-grid (optional)	Grid-tied / Off-grid (optional)

Note: Specifications are subject to change without prior notice for product improvement.

Solution

Base station stacked photovoltaic system

Stacked MPPT photovoltaic controller expands PV capacity for base stations. Series-connected PV modules feed the controller, output -48V DC to loads. Supports wall/pole mounting; available in Outdoor and Rack-mount types.

Stacked MPPT photovoltaic controller is a product specially developed for photovoltaic energy expansion in base station scenarios. The series connection technical solution consists of PV modules, a stacked MPPT controller, and a DC ammeter; each photovoltaic module is connected in series to the cont…

Base Station Equipment Room Energy Scenario

Site hybrid energy series focuses on green, efficient, reliable, and intelligent power solutions. It includes integrated supplies, AC-DC converters, 5G power boxes, and hybrid cabinets, supporting PV, wind, and energy storage to create a flexible “New Energy + Grid + Storage” system.

site hybrid energy product series focuses on green low-carbon, high efficiency, reliability, and intelligent coordination. It covers all-scenario power equipment including integrated power supplies, AC-DC converters, outdoor 5G power boxes, indoor/outdoor hybrid energy cabinets, and equipment room p…

Hybrid Energy Communication Site

It covers all-scenario power equipment including integrated power supplies, AC-DC converters, outdoor 5G power boxes, indoor/outdoor hybrid energy cabinets, and equipment room power cabinets. It fully supports new energy sources such as PV and wind power, building a hybrid power distribution system of “New Energy + Grid Power + Energy Storage.

Hybrid energy product series focuses on green low-carbon, high efficiency, reliability, and intelligent coordination. It covers all-scenario power equipment including integrated power supplies, AC-DC converters, outdoor 5G power boxes, indoor/outdoor hybrid energy cabinets, and equipment room power …

Compact Communication Site

Compact Communication Site is an integrated and intelligent core equipment of the telecom power system, widely used in mobile base stations, data centers, and other scenarios.

Compact Communication Site is an integrated and intelligent core equipment of the telecom power system, widely used in mobile base stations, data centers, and other scenarios. It integrates power supply, power distribution, backup power, wall/pole mounting, and monitoring into one unit, providing st…

PV-Replacing-Diesel Scenario

Stacked MPPT photovoltaic controller is designed for diesel-powered base stations to expand PV capacity, add energy storage, and cut diesel use. Series-connected PV modules feed the controller, which outputs -48V DC to loads. Excess energy charges storage; shortages are supplemented, boosting green energy and efficiency.

Stacked MPPT photovoltaic controller is a product specially developed for existing base stations using diesel generator scenarios, to expand PV capacity, add energy storage, and reduce diesel consumption. The series-connection technical solution consists of PV modules, a Stacked MPPT controller, a D…
