What are some key parameters of energy storage systems?

Rated power is the total possible instantaneous discharge capacity of the system, usually in kilowatts (kW) or megawatts (MW). Energy is the maximum energy stored (power rate in a given time), usually described in kilowatt-hours (kWh) or megawatt-hours (MWH).

What are the application values of industrial and commercial energy storage systems?

Peak-valley arbitrage To reduce corporate electricity costs, utilize the difference in peak-valley electricity prices, charge in valley periods and flat periods, and discharge in peak and peak periods.

What information about the power-consuming enterprise is necessary when installing an energy storage power station?

Basic information: electricity type, basic electricity price, time-sharing period/time-sharing electricity price, and the company's electricity shutdown production situation;

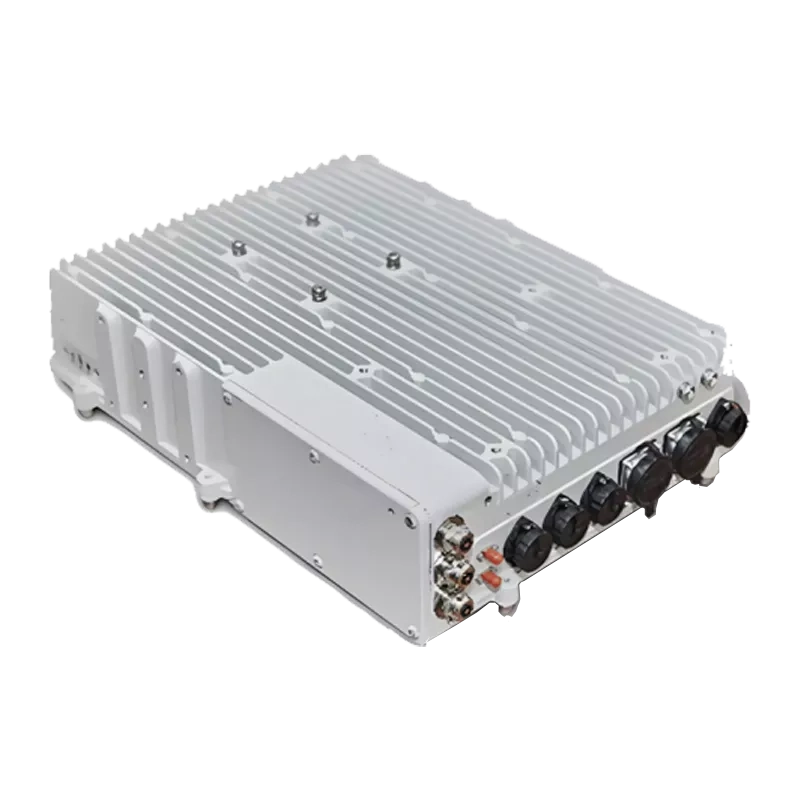

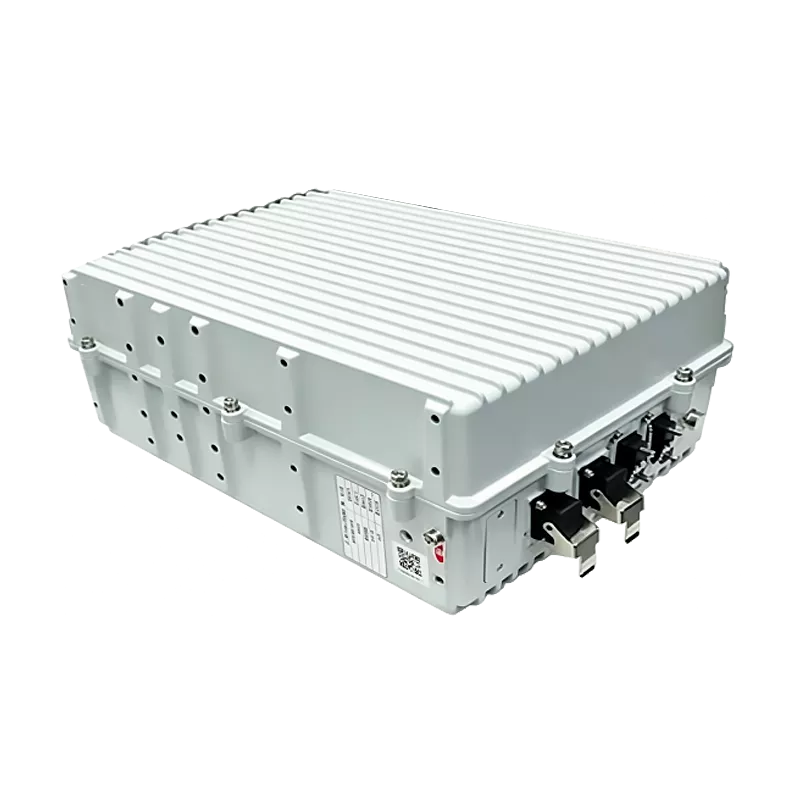

Integrated Power Supply

The next-generation Outdoor Integrated Power Supply is a distributed, high-integration DC power solution for 5G base stations. Built with a modular assembly structure, it is lightweight, elegant, and provides strong heat dissipation.

Type : Integrated Power Supply

Power : 1kW-6kW

Send Message Get Price

Parameters

Product Parameters

Category	Parameter
Model	HJ048(1kW)	HJ048(2kW)	HJ048(3kW)	HJ048(6kW)	HJ04820L	HJ04850L
Capacity	1000W	2000W	3000W	6000W	20Ah/960Wh	50Ah/2400Wh
Dimensions	367483175(mm)	40030575(mm)		442342100(mm)	425310121（mm）	425310170(mm)
Weight	≤33kg	≤9kg		≤16kg	20Kg	30Kg
Battery Capacity	20Ah	For use with modular battery pack			1,200 cycles (default 5A charging)	1,200 cycles (default 5A charging)
Output Distribution	DC Output: 3×40A	DC Output: 3×40A Battery/Parallel Port: 1×60A		DC Output: 7×40A Battery/Parallel Port: 2×125A	2×60A Aviation Connector	2×60A Aviation Connector

Note: Specifications are subject to change without prior notice for product improvement.

Feature

Fully enclosed natural convection cooling with die-cast aluminum enclosure; Protection Rating IP65
Modular and flexible assembly with easy capacity expansion
Intelligent DC load management with remote shutdown, branch reclosing, and independent branch metering
Intelligent online monitoring for remote O&M control

Solution

Base station stacked photovoltaic system

Stacked MPPT photovoltaic controller expands PV capacity for base stations. Series-connected PV modules feed the controller, output -48V DC to loads. Supports wall/pole mounting; available in Outdoor and Rack-mount types.

Stacked MPPT photovoltaic controller is a product specially developed for photovoltaic energy expansion in base station scenarios. The series connection technical solution consists of PV modules, a stacked MPPT controller, and a DC ammeter; each photovoltaic module is connected in series to the cont…

Base Station Equipment Room Energy Scenario

Site hybrid energy series focuses on green, efficient, reliable, and intelligent power solutions. It includes integrated supplies, AC-DC converters, 5G power boxes, and hybrid cabinets, supporting PV, wind, and energy storage to create a flexible “New Energy + Grid + Storage” system.

site hybrid energy product series focuses on green low-carbon, high efficiency, reliability, and intelligent coordination. It covers all-scenario power equipment including integrated power supplies, AC-DC converters, outdoor 5G power boxes, indoor/outdoor hybrid energy cabinets, and equipment room p…

Hybrid Energy Communication Site

It covers all-scenario power equipment including integrated power supplies, AC-DC converters, outdoor 5G power boxes, indoor/outdoor hybrid energy cabinets, and equipment room power cabinets. It fully supports new energy sources such as PV and wind power, building a hybrid power distribution system of “New Energy + Grid Power + Energy Storage.

Hybrid energy product series focuses on green low-carbon, high efficiency, reliability, and intelligent coordination. It covers all-scenario power equipment including integrated power supplies, AC-DC converters, outdoor 5G power boxes, indoor/outdoor hybrid energy cabinets, and equipment room power …

Compact Communication Site

Compact Communication Site is an integrated and intelligent core equipment of the telecom power system, widely used in mobile base stations, data centers, and other scenarios.

Compact Communication Site is an integrated and intelligent core equipment of the telecom power system, widely used in mobile base stations, data centers, and other scenarios. It integrates power supply, power distribution, backup power, wall/pole mounting, and monitoring into one unit, providing st…

PV-Replacing-Diesel Scenario

Stacked MPPT photovoltaic controller is designed for diesel-powered base stations to expand PV capacity, add energy storage, and cut diesel use. Series-connected PV modules feed the controller, which outputs -48V DC to loads. Excess energy charges storage; shortages are supplemented, boosting green energy and efficiency.

Stacked MPPT photovoltaic controller is a product specially developed for existing base stations using diesel generator scenarios, to expand PV capacity, add energy storage, and reduce diesel consumption. The series-connection technical solution consists of PV modules, a Stacked MPPT controller, a D…
