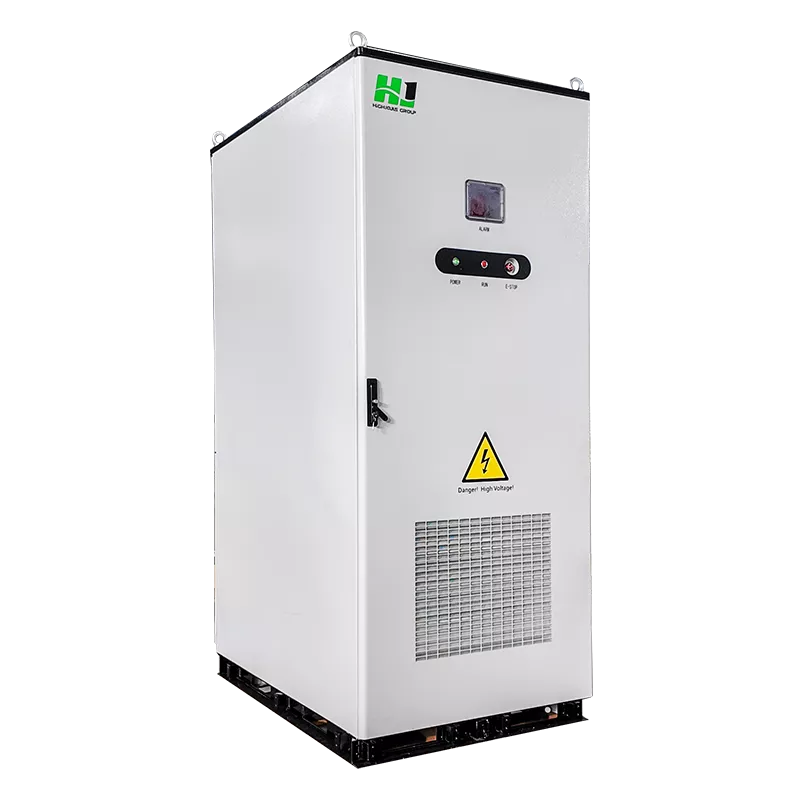

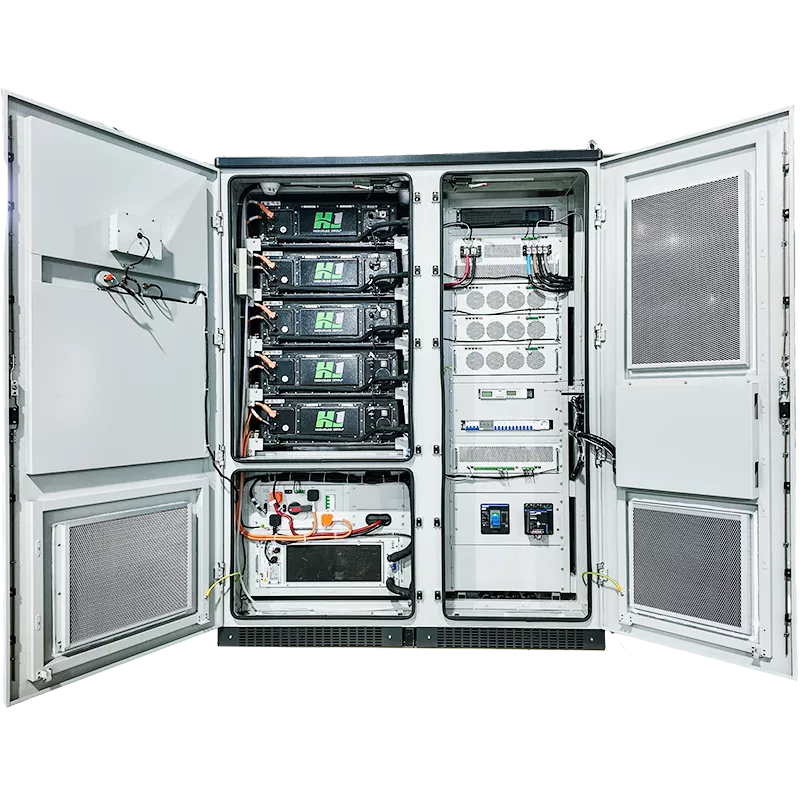

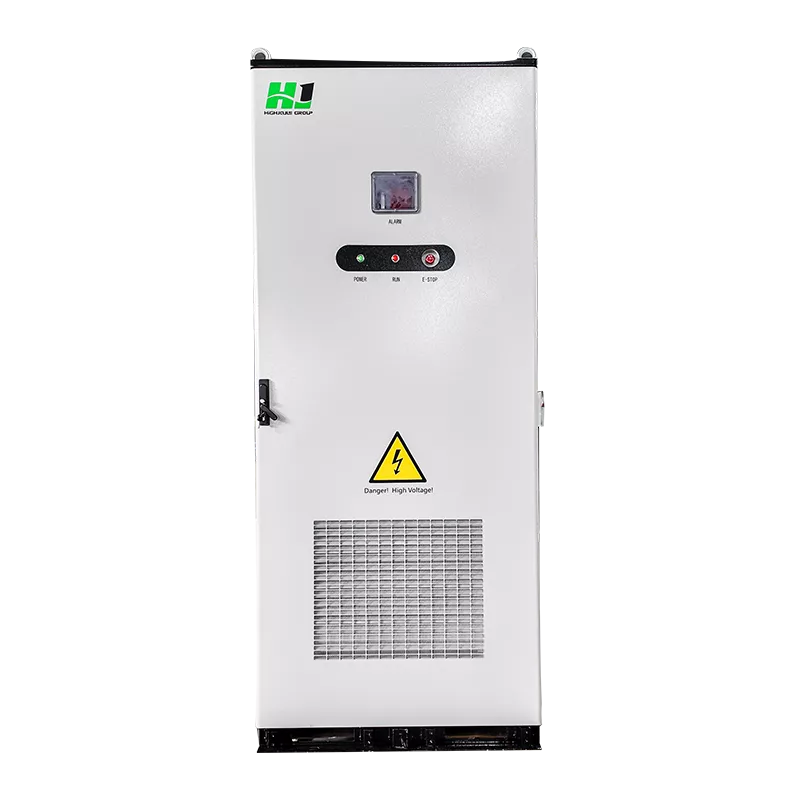

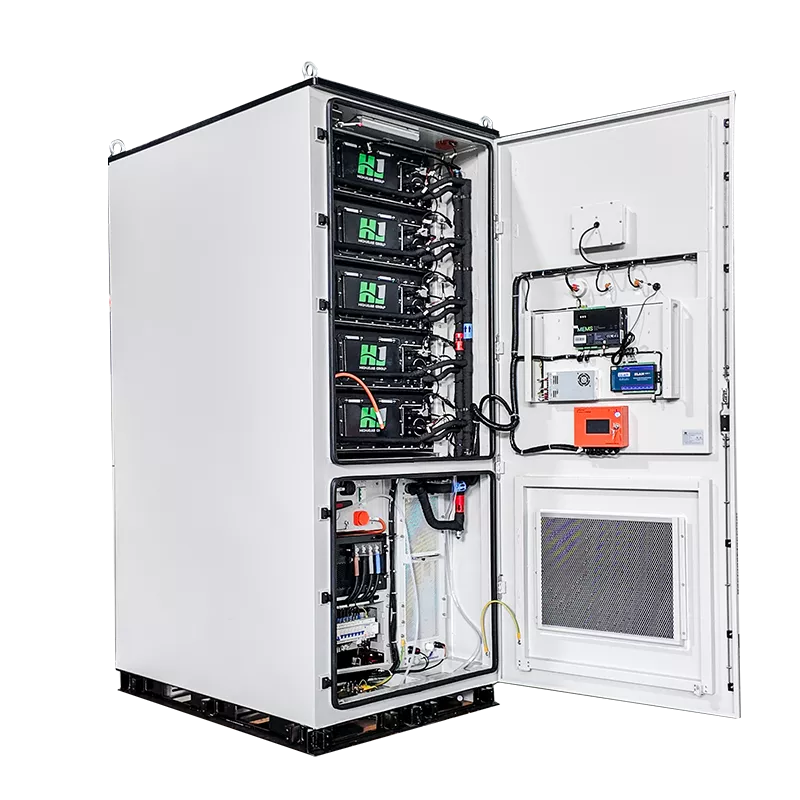

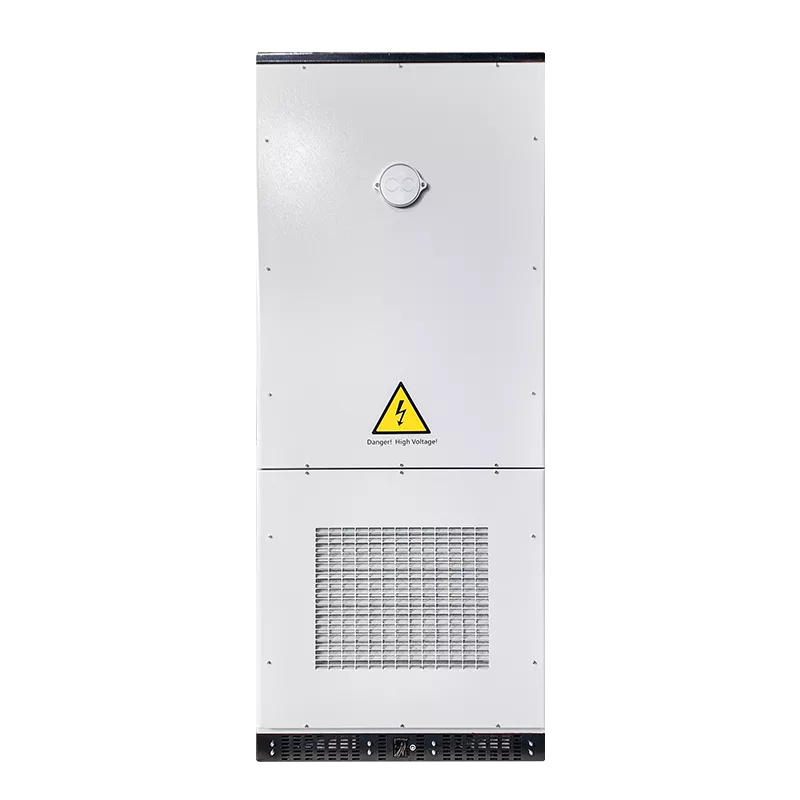

HJ-G125-261L is a 261kWh liquid-cooled outdoor energy storage cabinet. Equipped with liquid cooling technology, it is developed for outdoor energy storage scenarios and can fully satisfy users’ demands for energy storage and intelligent energy management.
Send Message Get Price
| Model No. | HJ-G125-261L |
| Battery Parameters | |
| Cell Type | LFP 3.2V/314Ah |
| Rated Energy | 261kWh |
| Series & Parallel Configuration | 1P260S |
| Voltage Range | 728-936V DC |
| Cycle Life | ≥6000 @25℃ |
| Depth of Discharge (DOD) | 90% DOD |
| Communication Interface | Modbus TCP, Modbus RTU, CAN2.0 |
| Grid-tied Output Parameters | |
| Rated Output Power | 125kW |
| Rated Grid Voltage | 230/400V, 3L+N+PE |
| Max. Current | 198A |
| Power Factor | 0.99 |
| Rated Grid Frequency | 50/60Hz |
| Total Harmonic Distortion of Current (THDi) | < 2% (at rated power) |
| Off-grid Output Parameters | |
| Rated Output Power | 125kW |
| Rated Output Voltage | 230V/400V |
| Rated Grid Frequency | 50/60Hz |
| Max. Output Current | 198A |
| Grid-tied / Off-grid Switching Time | 20ms |
| Efficiency | |
| Max. Efficiency | 99.00% |
| System Parameters | |
| Dimensions (W × D × H) | 105523001300 |
| Weight | ≈2.8T |
| Ingress Protection Class | IP54 |
| Corrosion Protection Class | C4 |
| Operating Temperature Range | Charging: 0℃~55℃(32 °F~131 °F) Discharging: -20℃~55℃ (-4 °F~131 °F) |
| Humidity Range | 5%～95% (Non-condensing) |
| Cooling Mode | Liquid Cooling |
| Fire Suppression Mode | PACK-level Aerosol Fire Extinguishing |
| Max. Altitude | ≤2000 m |
| Communication Protocols | Modbus TCP, Modbus RTU, CAN2.0 |
| Certification Standards | |
| Safety Certifications | IEC62619/IEC63056/IEC62477 |
| EMC Certification | CE |
| Grid Connection Standard | EN 50549-1/10 |
Note: Specifications are subject to change without prior notice for product improvement.
1P260S combination configuration can be flexibly adjusted according to the actual demand for the number of cores and combination to meet the energy and power requirements of different projects.
Power factor ranges from 1 (forward) to 1 (lagging), which effectively improves the utilisation of power, reduces line losses and optimises the quality of grid operation.
The rated output voltage of the independent inverter is 400V (340~460V), the voltage imbalance of the independent inverter is less than 2%, and no more than 4% in short time, which ensures the stability and reliability in off-grid operation.
Equipped with a variety of protection functions, such as high/low voltage ride-through, anti-islanding, AC overcurrent, AC short circuit, AC overvoltage/subvoltage, AC inlet phase sequence error, etc., which can effectively guarantee the safe operation of the system and equipment.
The maximum efficiency can reach 0.99, which can minimise energy loss and improve the efficiency of energy use.
Distributed energy system, grid peak and frequency adjustment, standby power, microgrid, industrial and commercial energy storage.
