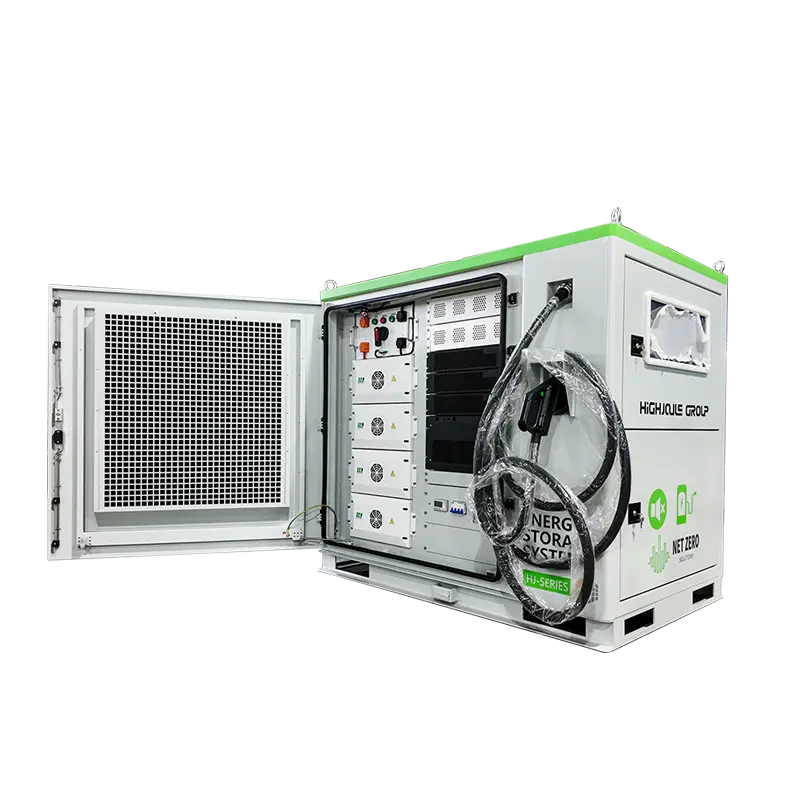

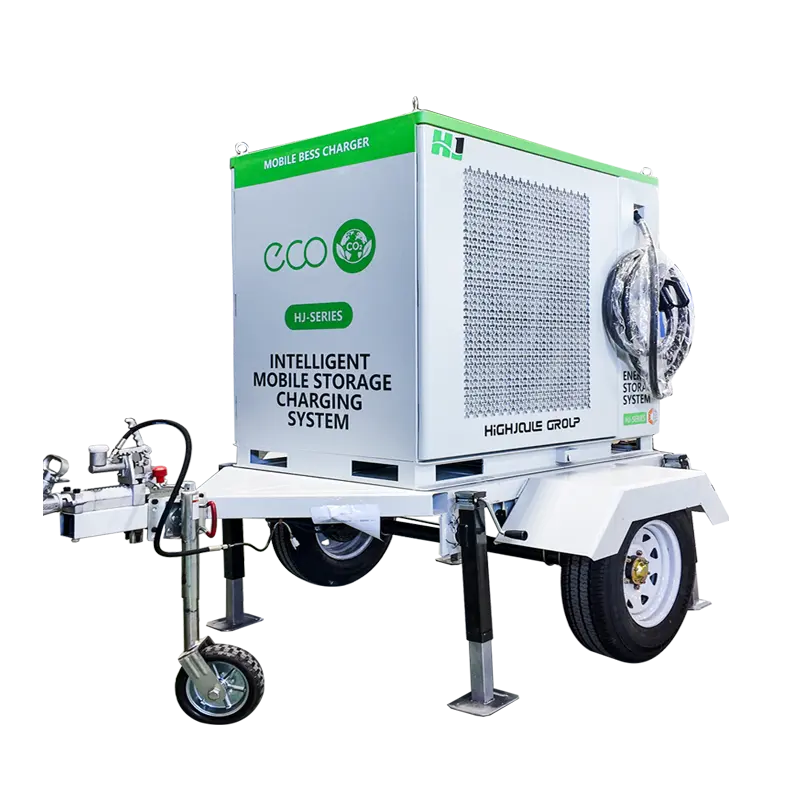

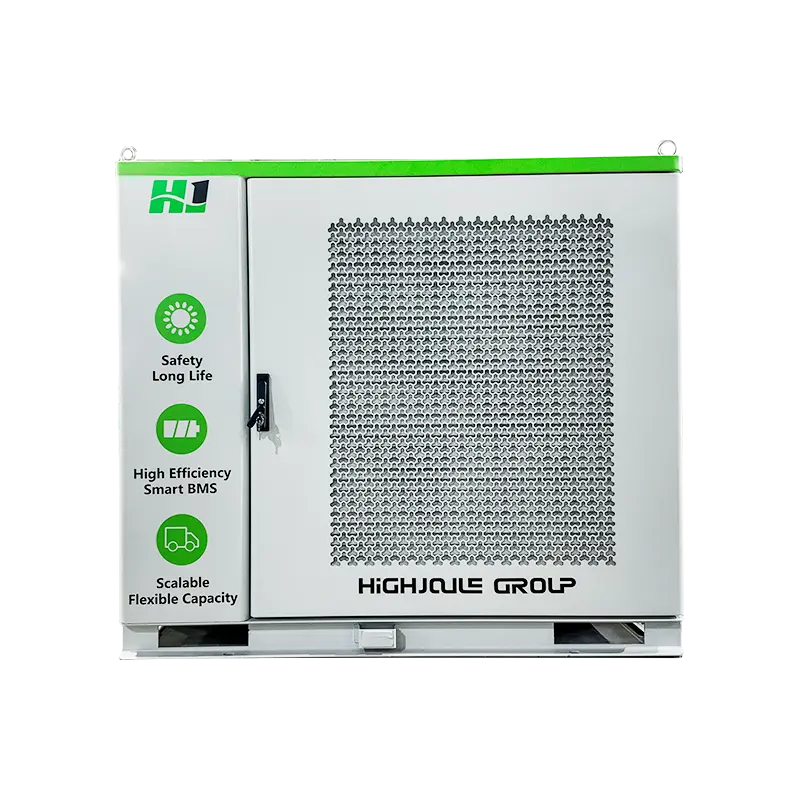

HJ Mobile‑Series (iTrailer) is an advanced intelligent mobile energy storage & charging system with large‑capacity batteries and high‑power output. Capable of charging EVs and powering industrial sites, it is ideal for emergency road rescue, construction & mining EV charging, and outdoor‑event power…
Send Message Get Price
| Product Model | HJ‑C0100‑0128F | HJ‑C0125‑0261L | |
| Battery System | Battery Type | Lithium Iron Phosphate (LFP) | Lithium Iron Phosphate (LFP) |
| Cell Specification | 3.2V/314Ah | 3.2V/314Ah | |
| Battery Configuration | 1P128S | 1P260S | |
| Rated Battery Capacity | 128.614KWh | 261.248KWh | |
| Rated Charge/Discharge Rate | 0.5C/0.5C | 0.5C/0.5C | |
| Battery Cooling | Forced Air Cooling | Liquid Cooling | |
| AC Input | Rated Voltage | AC 400V 3P+N+PE | AC 400V 3P+N+PE |
| Input Port | IEC Socket / Circuit Breaker | IEC Socket / Circuit Breaker | |
| PV Input | PV Input Power | 50KWP | 150KWP |
| EV Charger Input | EV Charger Input Interface | CCS1/CCS2 (Optional) | CCS1/CCS2 (Optional) |
| Rated Input Voltage | DC 750V | DC 750V | |
| Max. Input Power | 60KW | 125KW | |
| AC Output | Rated Voltage | AC 400V 3P+N+PE | AC 400V 3P+N+PE |
| Input Port | IEC Socket / Panel Socket | IEC Socket / Panel Socket | |
| Voltage Range | 200‑1000Vdc | 200‑1000Vdc | |
| Charging Power | 60 kW, Single Connector | 120 kW, Dual Connectors | |
| Charging Interface | CCS1/CCS2 (Optional) | CCS1/CCS2 (Optional) | |
| Charging Cable Length | 7m | 7m | |
| DC Output Voltage | 300‑500V DC | 300‑500V DC | |
| Output Power | 50KW | 50KW | |
| Trailer Chassis (Optional) | Rated Load | 2t | 2t |
| Axle | Dual Axles | Dual Axles | |
| Tires & Rims | 195R15 Pneumatic Tires | 195R15 Pneumatic Tires | |
| Suspension System | Multi‑Leaf Spring Suspension | Multi‑Leaf Spring Suspension | |
| Jockey Wheel | Standard Single‑Row Jockey Wheel | Standard Single‑Row Jockey Wheel | |
| Chassis Brake | Electromagnetic Brake | Electromagnetic Brake | |
| Parking Brake | Mechanical Handbrake | Mechanical Handbrake | |
| Towing Coupling | M‑Type Trailer Coupling, Dia. 50 mm | M‑Type Trailer Coupling, Dia. 50 mm | |
| Stabilizer Legs | 4 Standard Scissor Jacks | 4 Standard Scissor Jacks | |
| Protection Rating | IP55 | IP55 | |
| Corrosion Class | C4 | C4 | |
| Fire Suppression System | Aerosol Fire Suppression System | Aerosol Fire Suppression System | |
| Dimensions (Excl. Trailer) | H1400*W2200*D1000mm | H1900*W2200*D1400mm | |
| Weight (Excl. Trailer) | 1.8t | 3t |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet
