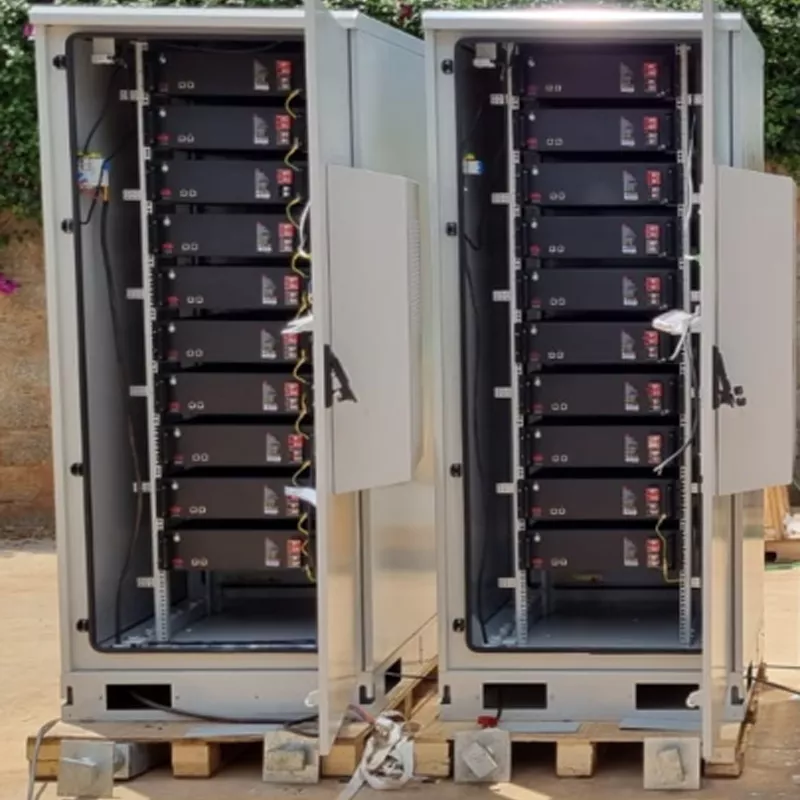

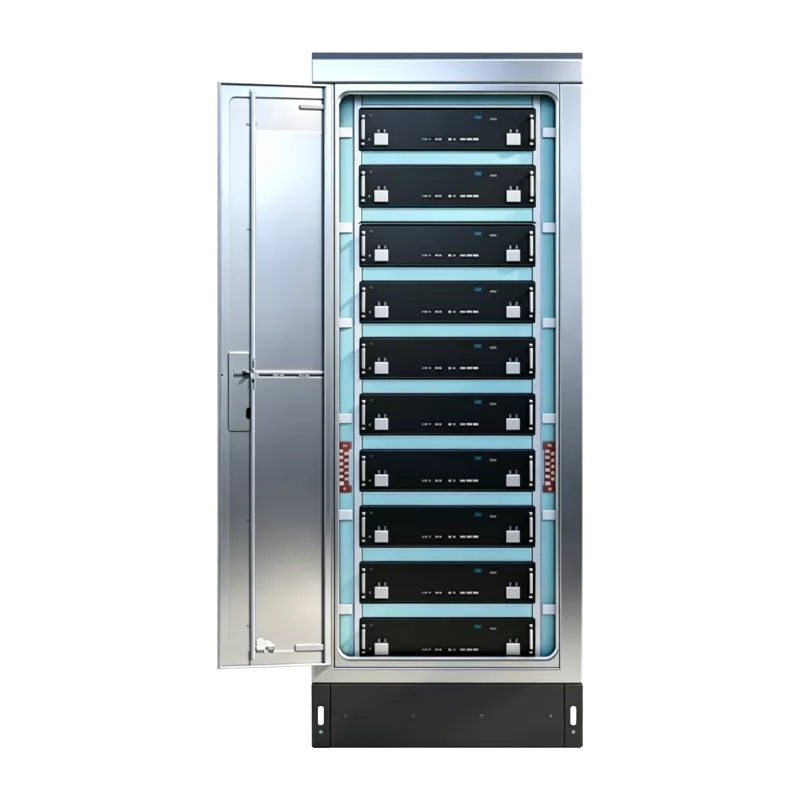

The Outdoor Battery product line is centered on green low-carbon, high-efficiency, and intelligent coordination principles. It covers both indoor and outdoor configurations, with lithium batteries (or lead-acid batteries) forming battery energy storage cabinets. Each cabinet also houses environmenta…
Send Message Get Price
| Base Station Battery Cabinet Specifications | |||||
| Product Model | HJ-CBI-030W | HJ-CBI-050-W | HJ-CBO-030-W | HJ-CBO-050-W | |
| Cabinet Parameters | Dimensions (H×W×D) | 1600mm*600mm*600mm | 220mm*700mm*700mm | 1600mm*750mm*750mm | 2200mm*800mm*850mm |
| Application Scenario | Indoor Floor-Standing | Indoor Floor-Standing | Outdoor Floor-Standing | Outdoor Floor-Standing | |
| Cable Entry Method | Top/Bottom entry | Top/Bottom entry | Bottom entry | Bottom entry | |
| Thermal Control | / | / | Fan-cooled / Air-conditioned (optional) | Fan-cooled / Air-conditioned (optional) | |
| Weight | ≤65 kg (excluding battery) | ≤125 kg (excluding battery) | ≤160 kg (excluding battery) | ≤200 kg (excluding battery) | |
| Power Input Characteristics | DC Input Voltage | DC 48V(40~60V) | DC 48V(40~60V) | DC 48V(40~60V) | DC 48V(40~60V) |
| Max. Current (A) | 180A | 300A | 180A | 300A | |
| Battery Parameters (Optional) | Rated Voltage (V) | 48V(40~60V) | 48V(40~60V) | 48V(40~60V) | 48V(40~60V) |
| Max. Charge/Discharge Current | 180A (C-rate 0.3C) | 300A (C-rate 0.3C) | 180A (C-rate 0.3C) | 300A (C-rate 0.3C) | |
| Battery Charge Management System | Built-in BMS | Built-in BMS | Built-in BMS | Built-in BMS | |
| Max. Capacity | 30kWh | 50kWh | 30kWh | 50kWh | |
Note: Specifications are subject to change without prior notice for product improvement.
Communication base stations (5G/4G), remote base stations
Island stations, border outposts, field exploration sites
Mining areas, construction sites, temporary camps
Island microgrids, off-grid villages and towns
Backup/primary power in areas with unstable grid;
Stacked MPPT photovoltaic controller is a product specially developed for photovoltaic energy expansion in base station scenarios. The series connection technical solution consists of PV modules, a stacked MPPT controller, and a DC ammeter; each photovoltaic module is connected in series to the cont…
View Moresite hybrid energy product series focuses on green low-carbon, high efficiency, reliability, and intelligent coordination. It covers all-scenario power equipment including integrated power supplies, AC-DC converters, outdoor 5G power boxes, indoor/outdoor hybrid energy cabinets, and equipment room p…
View MoreHybrid energy product series focuses on green low-carbon, high efficiency, reliability, and intelligent coordination. It covers all-scenario power equipment including integrated power supplies, AC-DC converters, outdoor 5G power boxes, indoor/outdoor hybrid energy cabinets, and equipment room power …
View MoreCompact Communication Site is an integrated and intelligent core equipment of the telecom power system, widely used in mobile base stations, data centers, and other scenarios. It integrates power supply, power distribution, backup power, wall/pole mounting, and monitoring into one unit, providing st…
View MoreStacked MPPT photovoltaic controller is a product specially developed for existing base stations using diesel generator scenarios, to expand PV capacity, add energy storage, and reduce diesel consumption. The series-connection technical solution consists of PV modules, a Stacked MPPT controller, a D…
