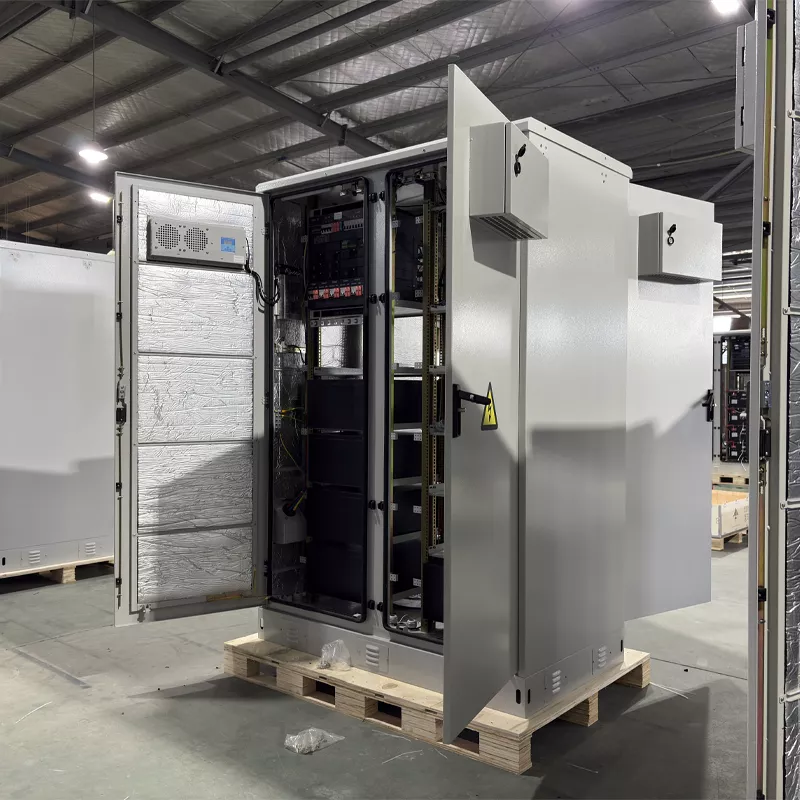

The outdoor photovoltaic energy cabinet can provide reliable housing for network servers, edge computers, professional equipment, monitoring systems, photovoltaic, and battery systems. It is a unified power supply platform system that supports various AC and DC input and output formats, meeting diff…
Send Message Get Price
| Model | HJ-Z06-10O | HJ-Z12-20O | HJ-Z18-30O | HJ-Z24-40O |
| Power | 6KW (maximum 9KW) | 12KW(maximum24KW) | 18KW(maximum36KW) | 24KW(maximum48KW) |
| Maximum Energy Storage Capacity | 10KWh | 20KWh | 30KWh | 40KWh |
| Energy Input/Output | Mains/Photovoltaic/Energy Storage | |||
| Usage Environment | Outdoor | Outdoor(double compartment) | ||
| Installation Method | Floor-mounted | |||
| Specification Dimensions | 1200mm*700mm * 700mm | 1600mm*700mm*700mm | 2000mm*750mm* 750mm | 2000mm*1550mm * 800mm |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet
Supports the introduction of multiple green power sources such as photovoltaic, wind, and generator.
AC220V, DC48V, -12V.
More energy-efficient and monitoring management; the temperature-controlled fan automatically adjusts the wind speed, with low power consumption, and supports RS485 serial communication upload.
Low comprehensive heat transfer coefficient (heat transfer coefficient 0.024W/(m﹒K)).
It can be used in various harsh outdoor environments with a salt spray time of 500 hours.
The product shell is made of aluminum alloy material, which is light and can be manually carried. It is prefabricated in the factory, and the cabinet can be hoisted as a whole.
The outer layer of the cabinet made of FRP material has strong anti-corrosion performance and can be used in coastal scenarios.

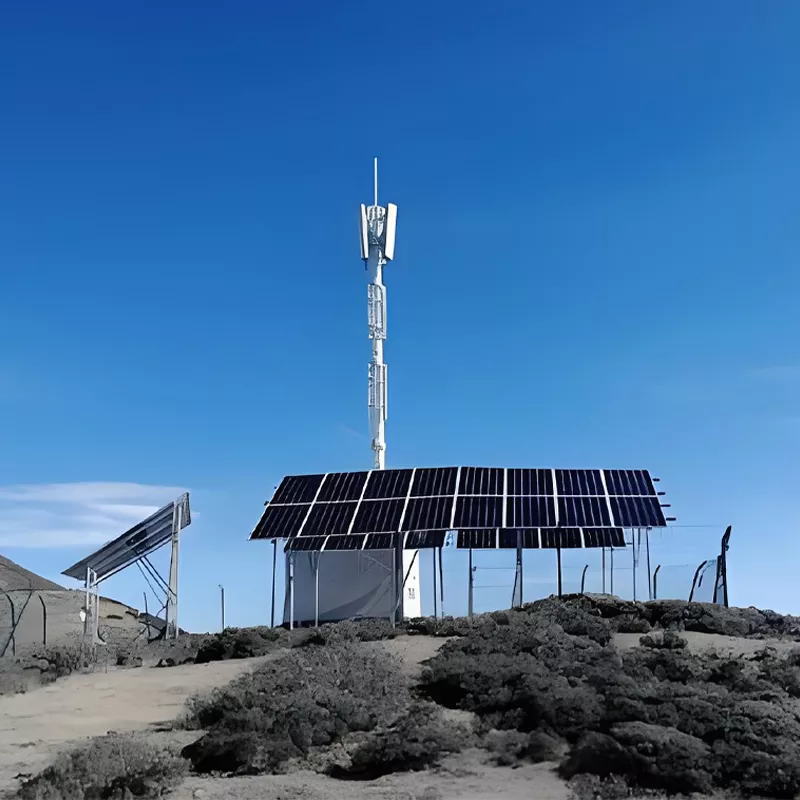

Communication Base Stations, Smart Cities, Smart Transportation, Power Systems, Edge Sites
