What are some key parameters of energy storage systems?

Rated power is the total possible instantaneous discharge capacity of the system, usually in kilowatts (kW) or megawatts (MW). Energy is the maximum energy stored (power rate in a given time), usually described in kilowatt-hours (kWh) or megawatt-hours (MWH).

What are the application values of industrial and commercial energy storage systems?

Peak-valley arbitrage To reduce corporate electricity costs, utilize the difference in peak-valley electricity prices, charge in valley periods and flat periods, and discharge in peak and peak periods.

What information about the power-consuming enterprise is necessary when installing an energy storage power station?

Basic information: electricity type, basic electricity price, time-sharing period/time-sharing electricity price, and the company's electricity shutdown production situation;

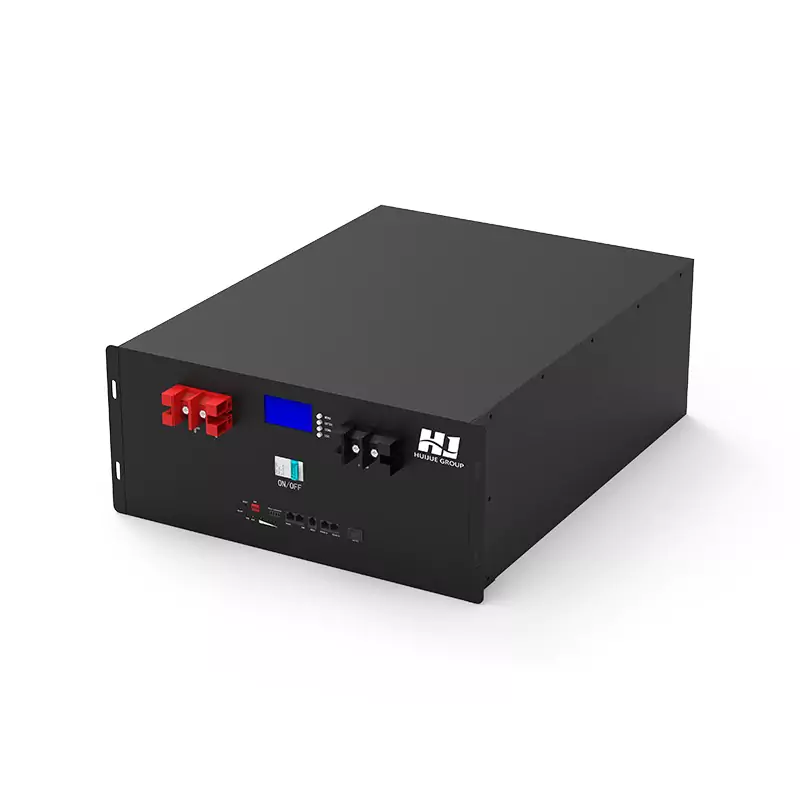

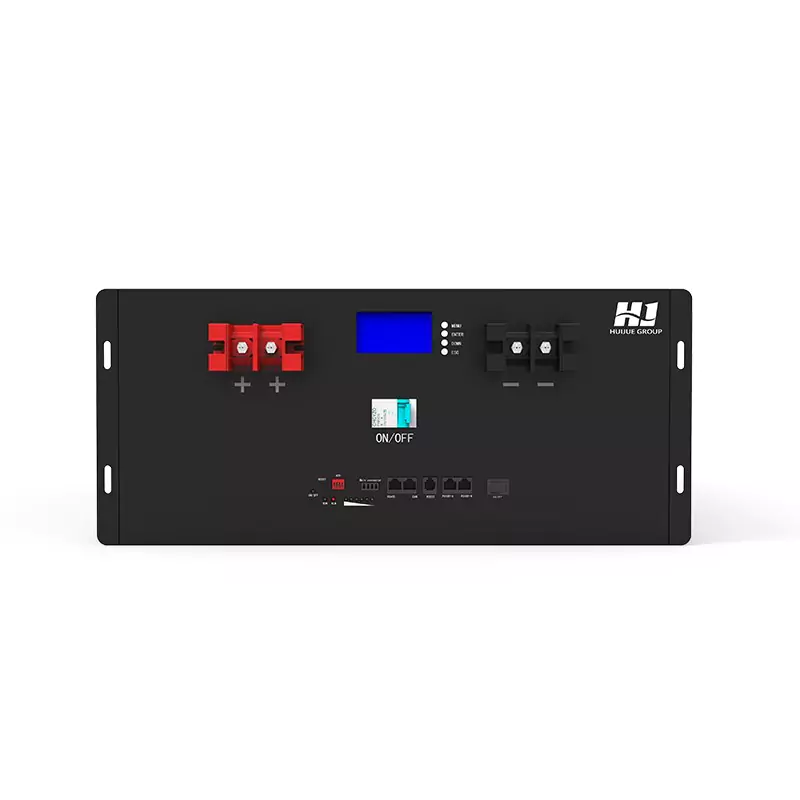

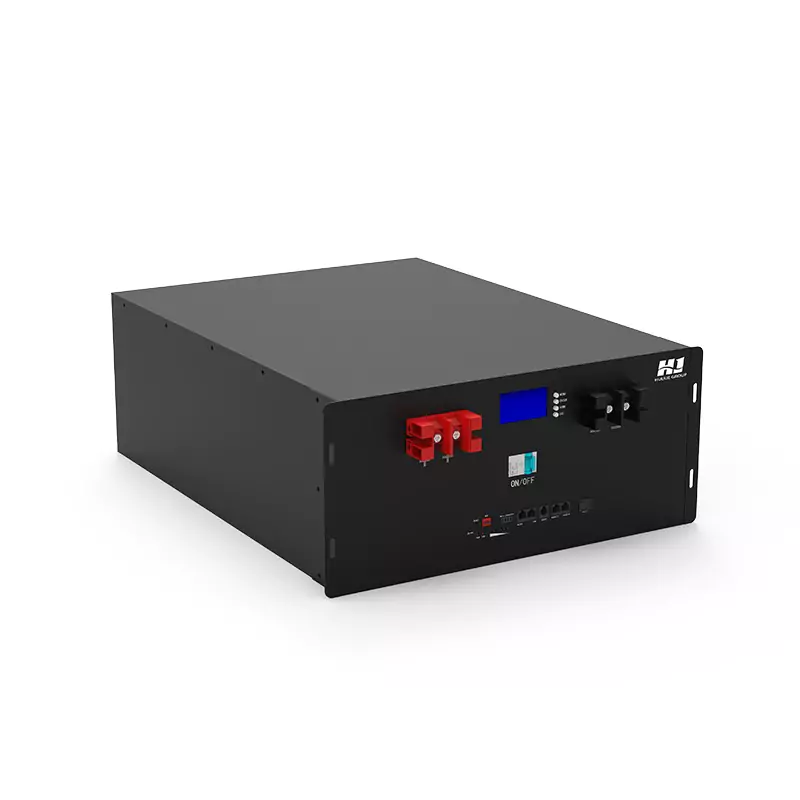

Rack-mounted lithium-ion battery

Parameters

Product Parameters

Product model	HJ-HBL48303R(B-38)
Battery Chemistry Type	Lithium Iron Phosphate (LiFePO4)
Capacity (Ah)	300Ah
Nominal Voltage (V)	51.2
Operating Voltage (V)	46 – 56
Energy (kWh)	15.36
Available Energy (kWh)	13.82
Charging Voltage	58.4
Charge/Discharge Current (A)	Recommended value: 40
	Maximum value: 100
	Peak (2 minutes, 25°C): 200
Other Parameters
Recommended Discharge Depth	90%
Dimensions (Width/Height/Depth, mm)	730 x 525 x 245 mm
Approximate Weight (kg)	121.6 kg
Enclosure Protection Rating	IP21
Operating Temperature	Charging: 10°C – 45°C; Discharging: -20°C – 60°C
Storage Temperature	-20°C to 50°C Recommended (25±5°C)
Humidity	5% – 95%
Altitude	≤2000 metres
Cycle Life (25±2°C, 0.5C/0.5C, 80% life termination)	≥4000 cycles
Communication Interface	RS232, CAN, RS485

Note: Specifications are subject to change without prior notice for product improvement. Data Sheet

Feature

Efficient Integrated Design

Utilizes a standardized rack structure to tightly integrate multiple battery modules, saving space and making it suitable for installation in limited spaces such as data centers and base stations.
High-Performance Battery Cells

Employs high-quality lithium-ion cells with high energy density, enabling the storage of more energy within a limited volume.
Intelligent Battery Management System

Includes an advanced BMS that continuously monitors critical parameters such as voltage, current, and temperature, ensuring the batteries operate at optimal performance levels.
High Reliability and Safety

The rack is constructed from high-strength metal materials with a high protection rating, offering dustproof, waterproof, and shock-resistant capabilities, making it suitable for various harsh environments.

Solution

Base station stacked photovoltaic system

Stacked MPPT photovoltaic controller expands PV capacity for base stations. Series-connected PV modules feed the controller, output -48V DC to loads. Supports wall/pole mounting; available in Outdoor and Rack-mount types.

Stacked MPPT photovoltaic controller is a product specially developed for photovoltaic energy expansion in base station scenarios. The series connection technical solution consists of PV modules, a stacked MPPT controller, and a DC ammeter; each photovoltaic module is connected in series to the cont…

Base Station Equipment Room Energy Scenario

Site hybrid energy series focuses on green, efficient, reliable, and intelligent power solutions. It includes integrated supplies, AC-DC converters, 5G power boxes, and hybrid cabinets, supporting PV, wind, and energy storage to create a flexible “New Energy + Grid + Storage” system.

site hybrid energy product series focuses on green low-carbon, high efficiency, reliability, and intelligent coordination. It covers all-scenario power equipment including integrated power supplies, AC-DC converters, outdoor 5G power boxes, indoor/outdoor hybrid energy cabinets, and equipment room p…

Hybrid Energy Communication Site

It covers all-scenario power equipment including integrated power supplies, AC-DC converters, outdoor 5G power boxes, indoor/outdoor hybrid energy cabinets, and equipment room power cabinets. It fully supports new energy sources such as PV and wind power, building a hybrid power distribution system of “New Energy + Grid Power + Energy Storage.

Hybrid energy product series focuses on green low-carbon, high efficiency, reliability, and intelligent coordination. It covers all-scenario power equipment including integrated power supplies, AC-DC converters, outdoor 5G power boxes, indoor/outdoor hybrid energy cabinets, and equipment room power …

Compact Communication Site

Compact Communication Site is an integrated and intelligent core equipment of the telecom power system, widely used in mobile base stations, data centers, and other scenarios.

Compact Communication Site is an integrated and intelligent core equipment of the telecom power system, widely used in mobile base stations, data centers, and other scenarios. It integrates power supply, power distribution, backup power, wall/pole mounting, and monitoring into one unit, providing st…

PV-Replacing-Diesel Scenario

Stacked MPPT photovoltaic controller is designed for diesel-powered base stations to expand PV capacity, add energy storage, and cut diesel use. Series-connected PV modules feed the controller, which outputs -48V DC to loads. Excess energy charges storage; shortages are supplemented, boosting green energy and efficiency.

Stacked MPPT photovoltaic controller is a product specially developed for existing base stations using diesel generator scenarios, to expand PV capacity, add energy storage, and reduce diesel consumption. The series-connection technical solution consists of PV modules, a Stacked MPPT controller, a D…
