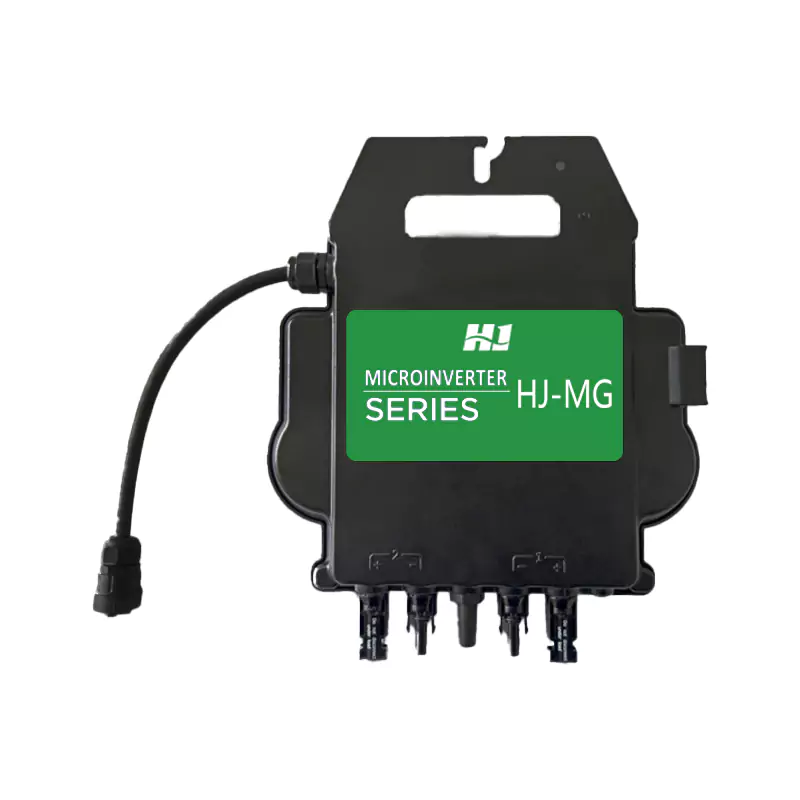

HJ-MG0001-W series micro inverters have 2 input channels with independent MPPT functions and high input current and output power to adapt to today's higher-power power modules. Users can directly connect their mobile phones to HJ-MG0001-W via Bluetooth to obtain real-time data of the photovoltaic sy…
Send Message Get Price
| DC Input | |
| Recommended Array Power Range | 410Wp-760Wp+ |
| MPPT Voltage Range | 28V-45V |
| Operating Voltage Range | 26V-60V |
| Max DC Input Voltage | 60V |
| Max DC Input Current | 20Ax2 |
| Max DC Short-Circuit Current | 25Ax2 |
| AC Output | |
| Rated Output Power | 1000W |
| Rated Output Voltage/Default Output Voltage Range | 220V/187V-242V |
| Max Output Current | 4.5A |
| Rated Output Frequency/Default Output Frequency Range | 50Hz/475Hz-50.5Hz |
| Power Factor | >0.99 |
| Efficiency | |
| Max Efficiency | 96% |
| MPPT Tracking Efficiency | 99.90% |
| Night Loss | 20mW |
| Mechanical Data | |
| Operating Temperature Range | -40℃ to+65℃ |
| Storage Temperature Range | -40℃ to+85℃ |
| Dimensions (L×W×H) | 263mm x 218 mm x 37 mm |
| Weight | 3kg |
| DC Connection Type | Staubli MC4 PV-ADBP4-S28ADSP4-S2 |
| Cooling | Natural convection (no fan) |
| Protection Level | IP67 |
| Pollution Degree | PD3 |
| Working Relative Humidity Range | 4%-100% |
| Max Altitude | <2000m |
| Overvoltage Category | PV input circuit OVCII, Power supply circuit OVCI |
| Cable (Optional) | |
| Cable Size | 2.5 mm² |
| Cable Length | Default 4 meters |
| Features | |
| Communication | Built-in Wi-Fi and Bluetooth |
| Isolation Design | High-frequency transformer, DC isolation |
| Energy Management* | AP EasyPower application software |
| Warranty | Standard 12 years |
Note: Specifications are subject to change without prior notice for product improvement.
One microinverter connects two components with independent MPPT, with a maximum output power of 1000W;
IP67 high protection level
Built-in Wi-Fi and Bluetooth; built-in safety protection relay; directly plugged into the wall socket;
Balcony photovoltaic, home energy storage, dedicated for balcony and DIY system
