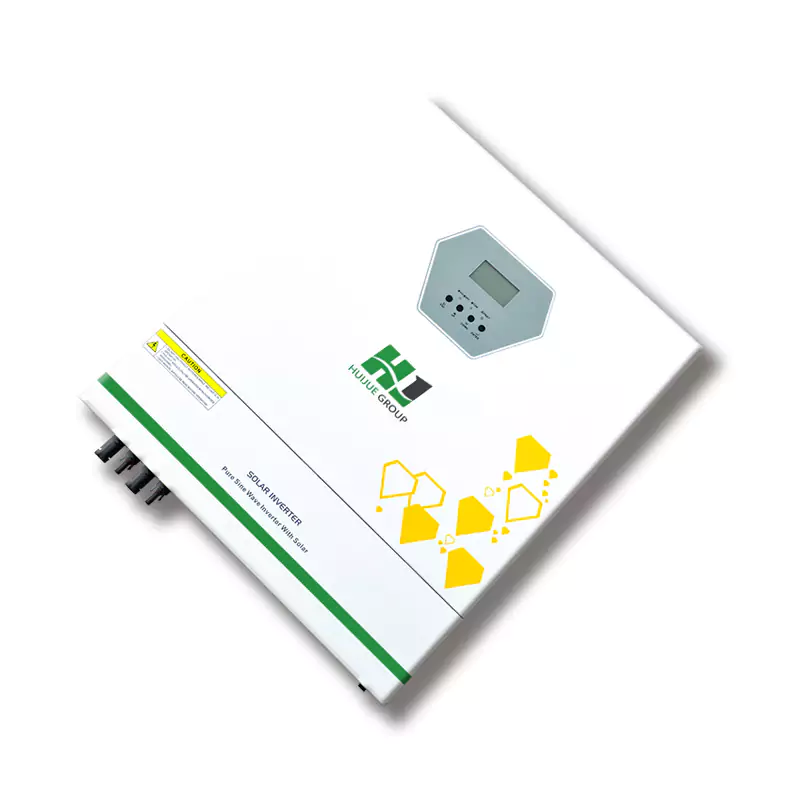

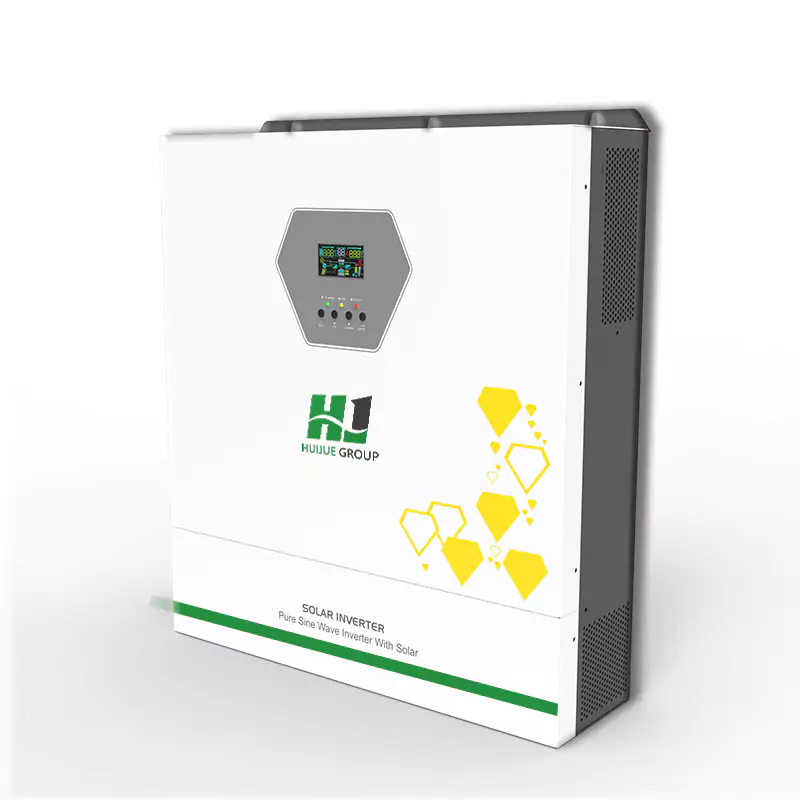

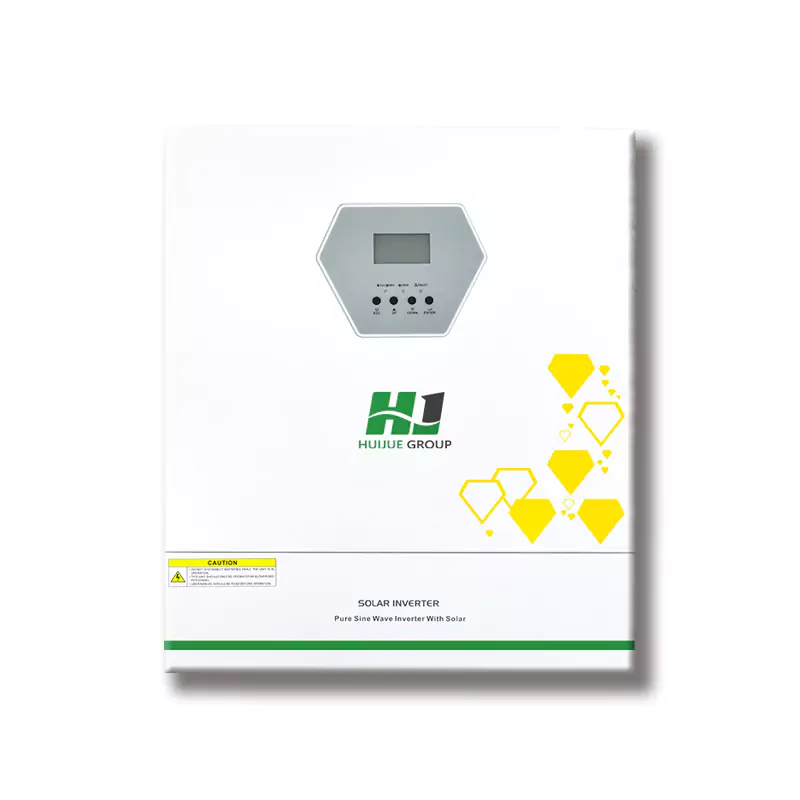

This inverter features a rounded corner design, with an exquisite appearance that combines beauty and practicality. It supports multi-parameter custom adjustment to meet various application scenarios. It is equipped with intelligent functions such as lithium battery communication, real-time load dis…
Send Message Get Price
| Product model | HJ-HIO4883S-L(H-23) | HJ-HIO4814S-Pro-L( H-24) | |
| Intput | Nominal Voltage | 220/230/240VAC | 220/230/240VAC |
| Voltage Range | 90-280VAC±3V(normal mode) 170-280VAC±3V(UPS mode) | 90-280VAC±3V(normal mode) 170-280VAC±3V(UPS mode) | |
| Frequency Range | 50Hz/60Hz(Adaptive) | 50Hz/60Hz(Adaptive) | |
| Output | Rated Power | 8000W | 11000W |
| Output Voltage(AC) | 220/230/240VAC±5% | 220/230/240VAC±5% | |
| Output Frequency | 50/60Hz±0.1% | 50/60Hz±0.1% | |
| Waveform | pure Sine Wave | pure Sine Wave | |
| Transfer Time( Optional) | Computer equipment 10ms,home appliances 20ms | Computer equipment 10ms,home appliances 20ms | |
| Peak power | 16000W | 22000W | |
| Overload | Battery Mode: 11s@105%~150%Load; 2s@150%~200%Load; 400ms@>200%Load | Battery Mode: 11s@105%~150%Load; 2s@150%~200%Load; 400ms@>200%Load | |
| Battery | Rated voltage | 48Vdo | 48Vdo |
| Constant voltage charging voltage (Optional) | 56.4Vdc | 56.4Vdc | |
| Floating charge voltage (Optional) | 54Vdo | 54Vdo | |
| charger | PV charging method | Dual MPPT | Dual MPPT |
| PV max input power | 2×5500W | 2×5500W | |
| MPPT tracking range | 90-500Vdo | 90-500Vdo | |
| optimal Vmp operating range | 300~400Vdc | 300~400Vdc | |
| Max PV input voltage | 500Vdc | 500Vdc | |
| maximum PV input current | 18A/18A | 18A/18A | |
| Max PV charging current | 150A | 150A | |
| Max AC charging current | 150A | 150A | |
| Max charging current | 150A | 150A | |
| Display | LCD display | Operating mode/load/input/output, etc. | Operating mode/load/input/output, etc. |
| Communication port | RS232 | Baud rate 2400 | Baud rate 2400 |
| Expansion & configuration port | Lithium battery BMS communication card,WIFI card,dry contact card,etc | Lithium battery BMS communication card,WIFI card,dry contact card,etc | |
| Parallel interface | Parallel function | Parallel function | |
| Environmental parameters | Operating environment temperature | -10℃~+50℃ | -10℃~+50℃ |
| Operating environment humidity | 20%~95%（Non condensing） | 20%~95%（Non condensing） | |
| noise | <45dB | <45dB | |
| GRID-CONNECTED OPERATION | Output voltage | 220/230/240VAC | 220/230/240VAC |
| grid feeding voltage range | 195-253VA | 195-253VA | |
| grid feeding frequency range | 49-51±1Hz/59-61±1Hz | 49-51±1Hz/59-61±1Hz | |
| nominal output current | 47.8A | 47.8A | |
| power factor range | >0.99 | >0.99 | |
| maximum conversion efficiency(DC/AC) | 98% | 98% | |
| PHYSICAL PARAMETERS | Depth×width×height(mm) | 601*360*163.5mm | 601*360*163.5mm |
| Standards and certifications | EN-IEC60335-1,EN-IEC60335-2-29,IEC62109-1 | EN-IEC60335-1,EN-IEC60335-2-29,IEC62109-1 | |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet
Cost-effective solution design.
Multiple parameters can be adjusted according to user needs toadapt to different occasions.
Support lithium battery communication.
Pure sine wave output, can adapt to different loads.
Real-time display of actual load power greatlyimproves user perception.
Residential Solar;Cut electricity bills;Backup power during outages;Best for: Homes, eco-conscious owners
