What are some key parameters of energy storage systems?

Rated power is the total possible instantaneous discharge capacity of the system, usually in kilowatts (kW) or megawatts (MW). Energy is the maximum energy stored (power rate in a given time), usually described in kilowatt-hours (kWh) or megawatt-hours (MWH).

What are the application values of industrial and commercial energy storage systems?

Peak-valley arbitrage To reduce corporate electricity costs, utilize the difference in peak-valley electricity prices, charge in valley periods and flat periods, and discharge in peak and peak periods.

What information about the power-consuming enterprise is necessary when installing an energy storage power station?

Basic information: electricity type, basic electricity price, time-sharing period/time-sharing electricity price, and the company's electricity shutdown production situation;

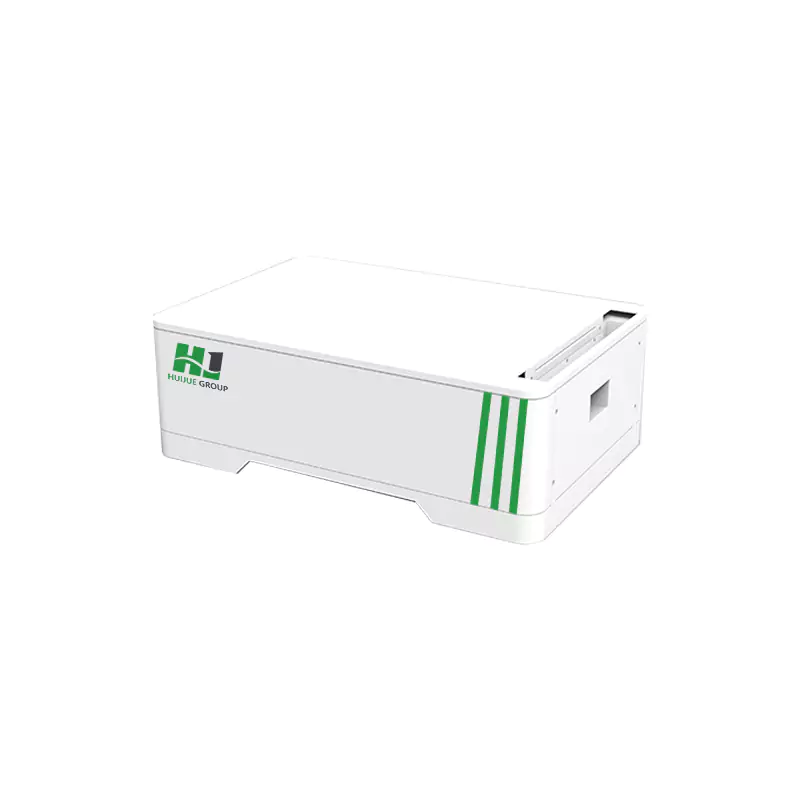

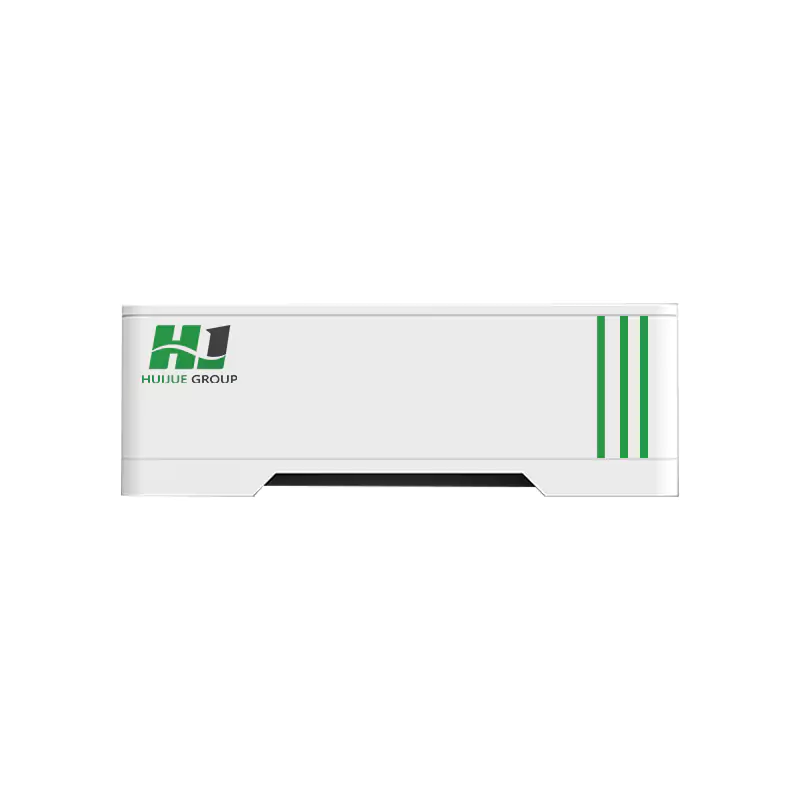

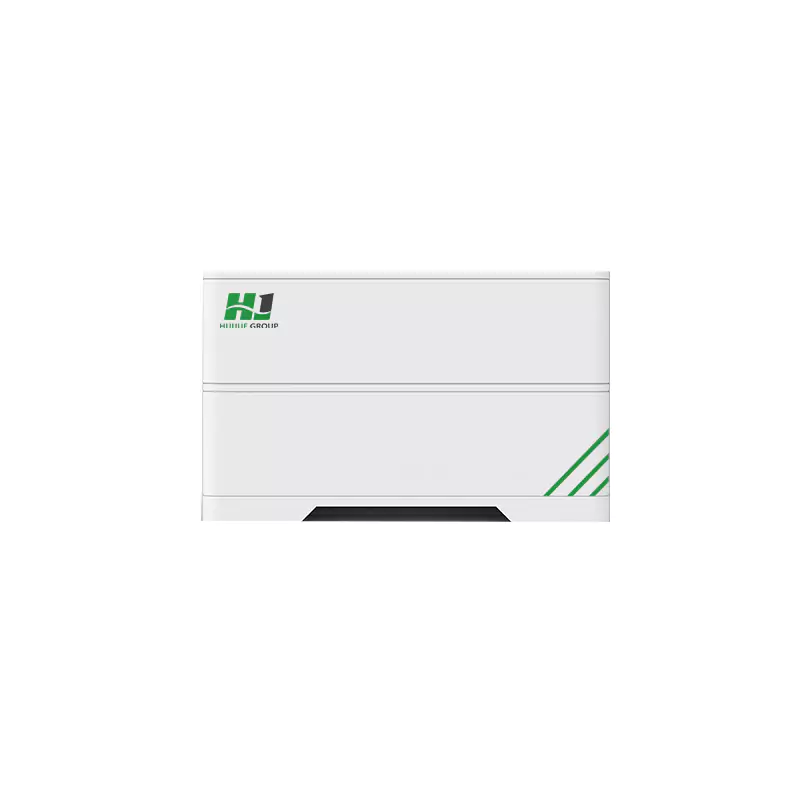

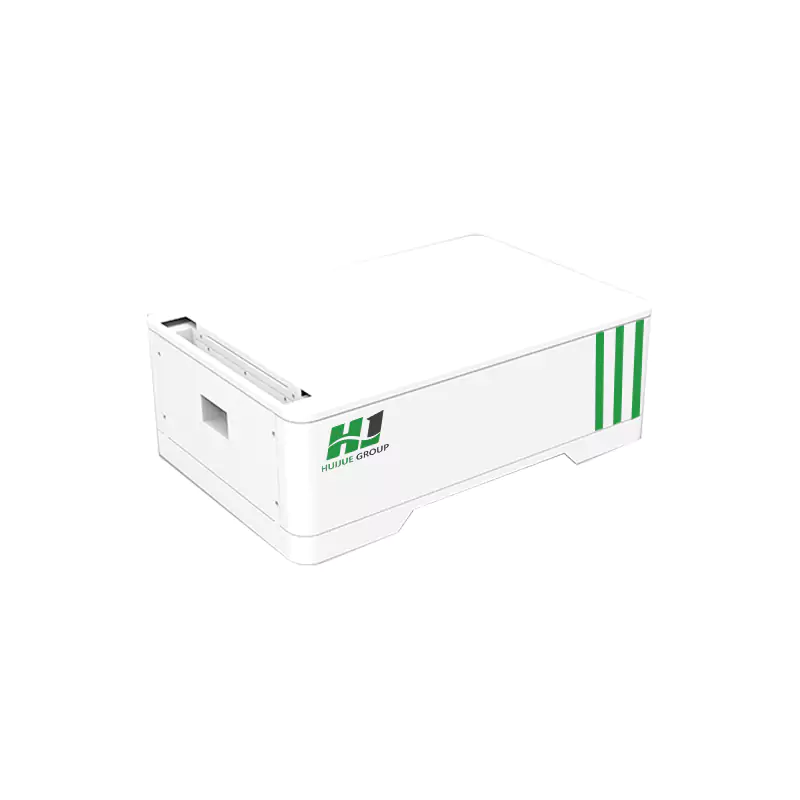

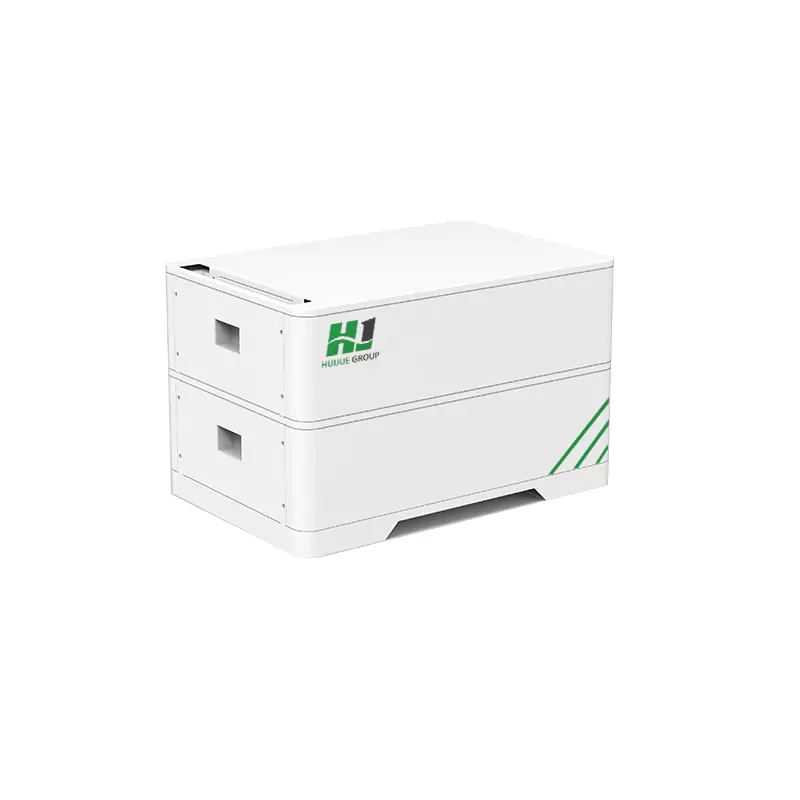

Stackable lithium-ion battery

Parameters

Product Parameters

Product model	HJ-HBL48101S(B-33)
Array mode	16S1P
Rated capacity	100Ah
Minimum capacity	≥100Ah
Capacity	5.12kWh
Operating voltage	40 – 58.4V
Rated voltage	51.2V
Resistance	≤30mΩ（Max）
Charge voltage	58.4V
Discharge cut – off voltage	40V
Standard charging current	40A
Standard discharging current	50A
Max continuous discharge current	100A
Communication port	RS485/CAN
Light
Cycle life	3000 cycles @70%SOH
Operating temperature	charge：0℃～50℃； discharge：-20℃～70℃
Storage temperature	‘-20℃-50℃ Recommend（25±5℃）
Net weight	56.6 kg
Net size (WDH)	610530190mm

Note: Specifications are subject to change without prior notice for product improvement. Data Sheet

Feature

Modular Design

Battery modules are independently designed and can be freely stacked, allowing users to gradually increase capacity according to actual needs without the need for a large upfront investment.
Long Cycle Life

After rigorous testing, the battery can withstand thousands of charge-discharge cycles, offering a long service life and reducing long-term usage costs.
Fast Charging and Discharging

Supports high-rate charging and discharging, enabling rapid charging or the release of large amounts of energy in a short time, meeting the rapid response requirements of various scenarios.
Low Maintenance Costs

The battery management system automatically monitors battery status, eliminating the need for frequent inspections and maintenance, thereby reducing operational costs.

Solution

Base station stacked photovoltaic system

Stacked MPPT photovoltaic controller expands PV capacity for base stations. Series-connected PV modules feed the controller, output -48V DC to loads. Supports wall/pole mounting; available in Outdoor and Rack-mount types.

Stacked MPPT photovoltaic controller is a product specially developed for photovoltaic energy expansion in base station scenarios. The series connection technical solution consists of PV modules, a stacked MPPT controller, and a DC ammeter; each photovoltaic module is connected in series to the cont…

Base Station Equipment Room Energy Scenario

Site hybrid energy series focuses on green, efficient, reliable, and intelligent power solutions. It includes integrated supplies, AC-DC converters, 5G power boxes, and hybrid cabinets, supporting PV, wind, and energy storage to create a flexible “New Energy + Grid + Storage” system.

site hybrid energy product series focuses on green low-carbon, high efficiency, reliability, and intelligent coordination. It covers all-scenario power equipment including integrated power supplies, AC-DC converters, outdoor 5G power boxes, indoor/outdoor hybrid energy cabinets, and equipment room p…

Hybrid Energy Communication Site

It covers all-scenario power equipment including integrated power supplies, AC-DC converters, outdoor 5G power boxes, indoor/outdoor hybrid energy cabinets, and equipment room power cabinets. It fully supports new energy sources such as PV and wind power, building a hybrid power distribution system of “New Energy + Grid Power + Energy Storage.

Hybrid energy product series focuses on green low-carbon, high efficiency, reliability, and intelligent coordination. It covers all-scenario power equipment including integrated power supplies, AC-DC converters, outdoor 5G power boxes, indoor/outdoor hybrid energy cabinets, and equipment room power …

Compact Communication Site

Compact Communication Site is an integrated and intelligent core equipment of the telecom power system, widely used in mobile base stations, data centers, and other scenarios.

Compact Communication Site is an integrated and intelligent core equipment of the telecom power system, widely used in mobile base stations, data centers, and other scenarios. It integrates power supply, power distribution, backup power, wall/pole mounting, and monitoring into one unit, providing st…

PV-Replacing-Diesel Scenario

Stacked MPPT photovoltaic controller is designed for diesel-powered base stations to expand PV capacity, add energy storage, and cut diesel use. Series-connected PV modules feed the controller, which outputs -48V DC to loads. Excess energy charges storage; shortages are supplemented, boosting green energy and efficiency.

Stacked MPPT photovoltaic controller is a product specially developed for existing base stations using diesel generator scenarios, to expand PV capacity, add energy storage, and reduce diesel consumption. The series-connection technical solution consists of PV modules, a Stacked MPPT controller, a D…
