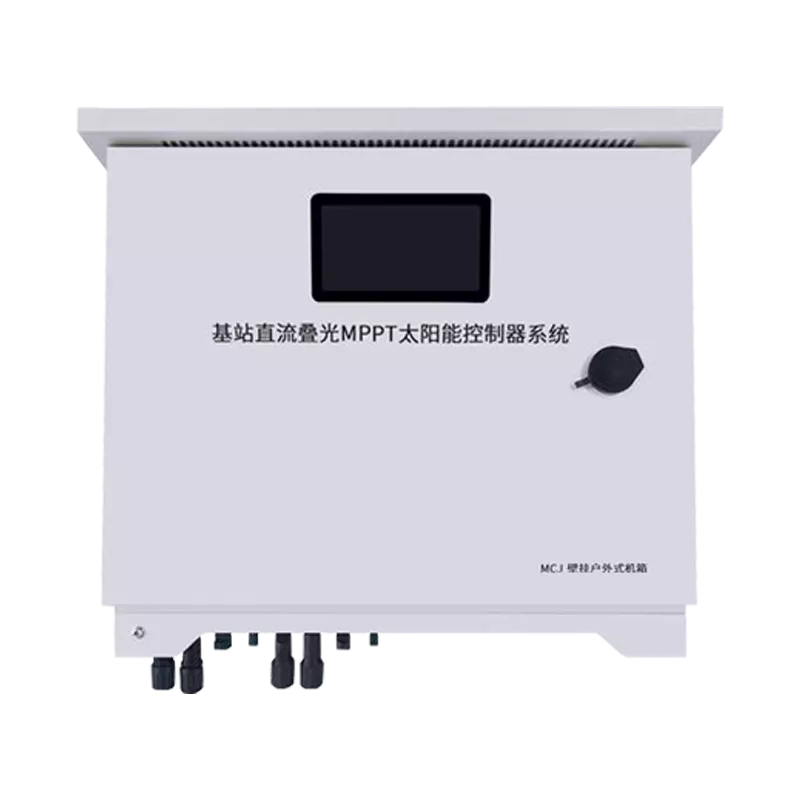

The Stacked-PV MPPT Solar Controller is specially developed for PV capacity expansion at base station sites. Using a series-connection scheme, the system consists of PV modules, a stacked-PV MPPT controller, and a DC meter. Each PV string is series-connected to the controller, which steps down the m…
Send Message Get Price
| Parameter Category | Parameter Name | Value | ||
| Basic Parameters | Model | HJ-MCJ48H60 | HJ-MCJ48H100 | HJ-MCJ48H120 |
| Conversion Efficiency | 97% | |||
| PV Input | Input Operating Voltage Range | 65~250VDC | ||
| PV Input Rated Power | 3400W | 5600W | 6800W | |
| DC Output | DC Output Voltage | Default: 56V DC (adjustable) | ||
| Communication Interface | RS485 | Standard Modbus protocol | ||
| Mounting Method | Wall-mount / pole-mount (indoor or outdoor) | |||
| Product Model | HHYS48300A-H5B6-GB01 | |
| Shelf/Frame System | Dimensions (W × D × H) | 482mm(W) × 365mm(D) × 222mm(H) |
| Installation Mode | 19-inch rack mount | |
| Weight | ≤20 kg (excluding modules) | |
| Input Characteristics | Input Voltage | DC: 100~400VDC, Rated: 240VDC/336VDC |
| Max. Input Current per Module | 19A | |
| Input Capacity | 6*32A/2P | |
| Output Characteristics | Output Voltage | 43.2V DC ~ 58V DC (default 53.5V DC) |
| Rated Output Power | 18000W （200Vdc~400Vdc） | |
| 9000W~18000W（100Vdc-200Vdc） | ||
| Peak Efficiency | 97% | |
| Rated Output Current | 300A (max） | |
| Module Slots | 6 groups | |
| Extended DC Interface | Copper busbar: 300A | |
| Monitoring Features | Signal Input | 2× analog detection inputs, 6× digital inputs |
| Alarm Output | 8× dry contact outputs | |
| Communication Interface | RS485/FE（SNMP/WEB） | |
| Event Log Storage | Stores more than 1,000 historical alarm events | |
| Display | LCD 128*48 | |
Note: Specifications are subject to change without prior notice for product improvement.

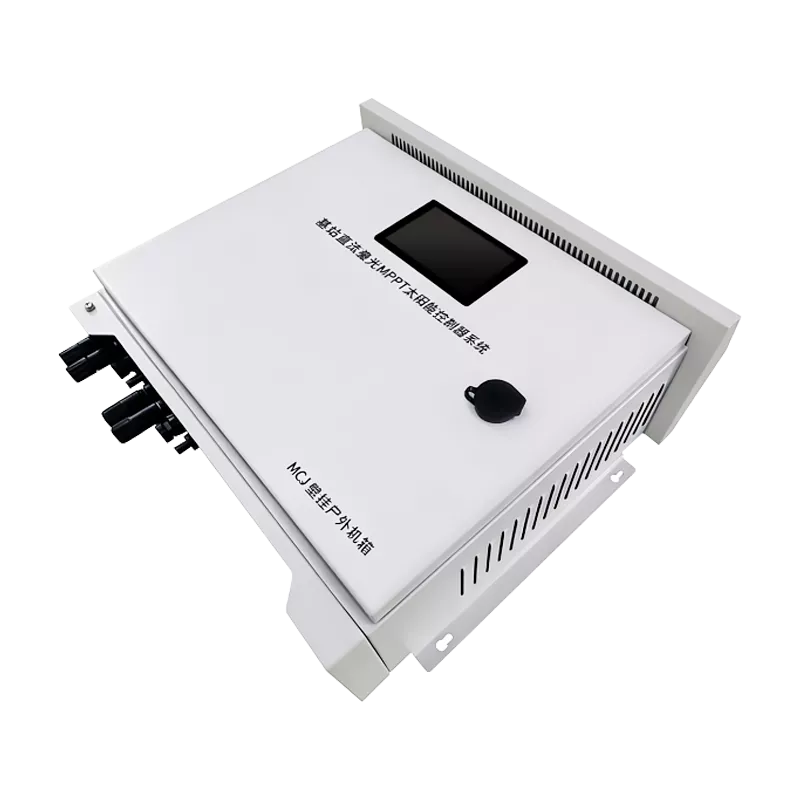

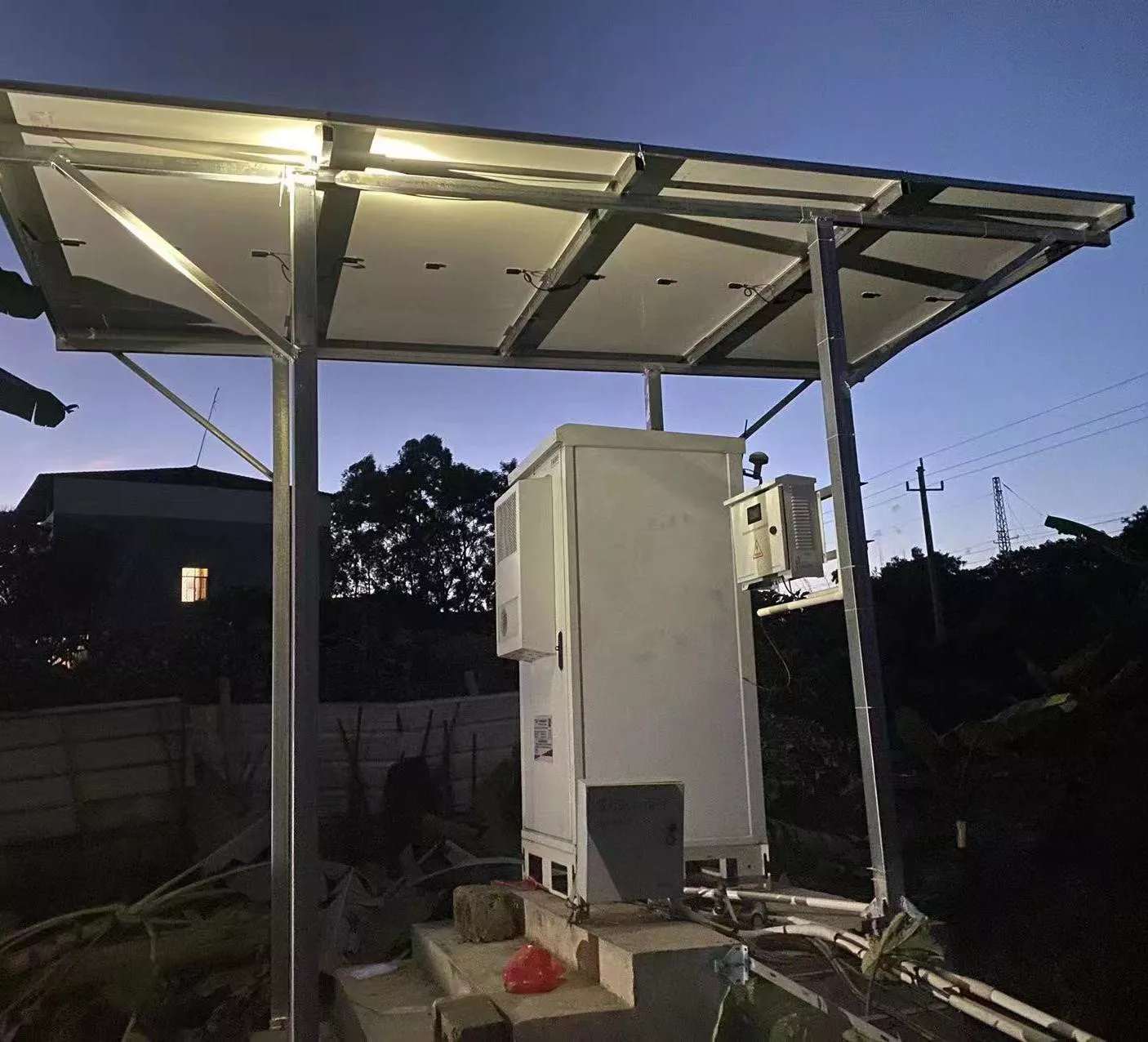

The Base Station DC Stacked-PV MPPT Solar Controller System is a wall-mount outdoor device designed specifically for communication base station scenarios. It is optimized for PV stacking retrofits at all types of communication base stations, especially suited for outdoor, rooftop, and pole-mount compact site deployments.
Stacked MPPT photovoltaic controller is a product specially developed for photovoltaic energy expansion in base station scenarios. The series connection technical solution consists of PV modules, a stacked MPPT controller, and a DC ammeter; each photovoltaic module is connected in series to the cont…
