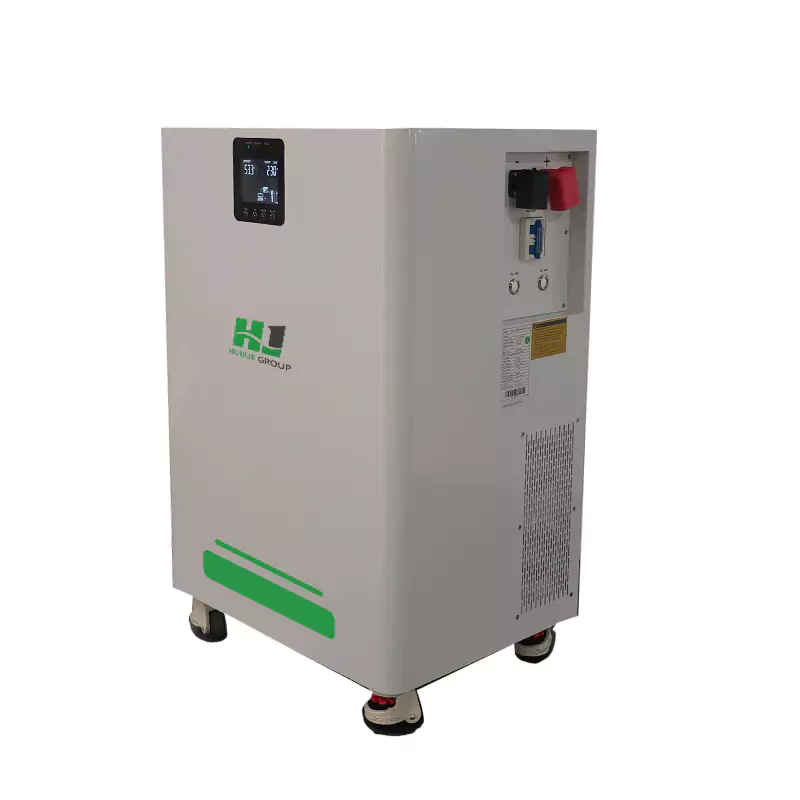

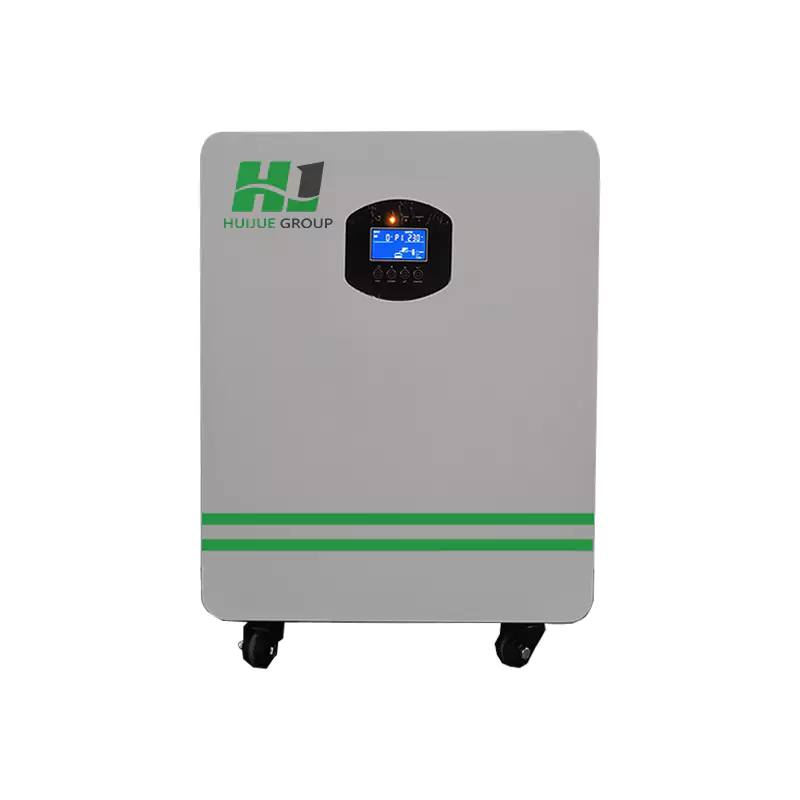

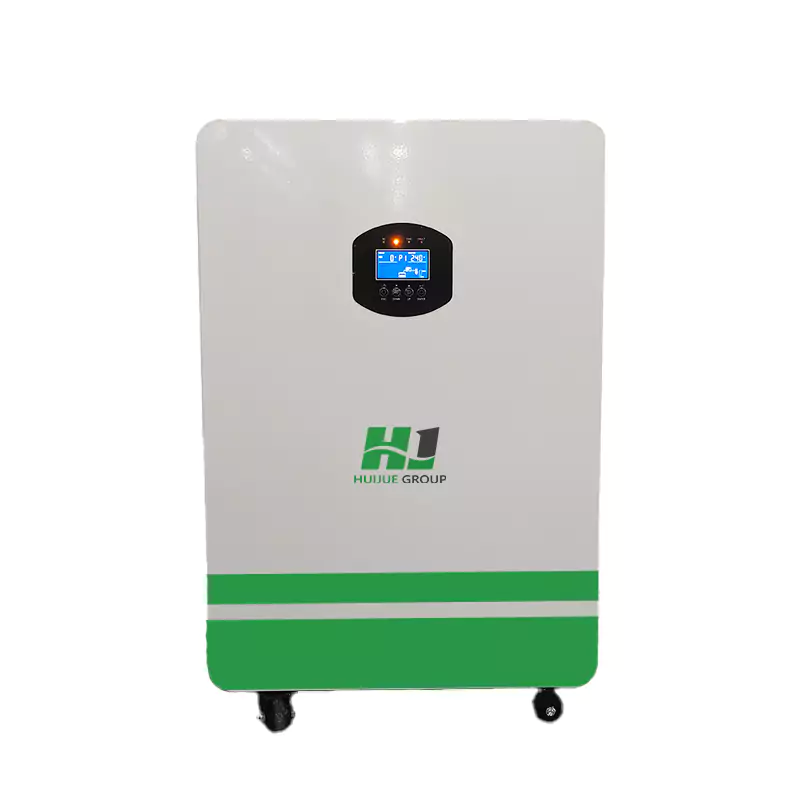

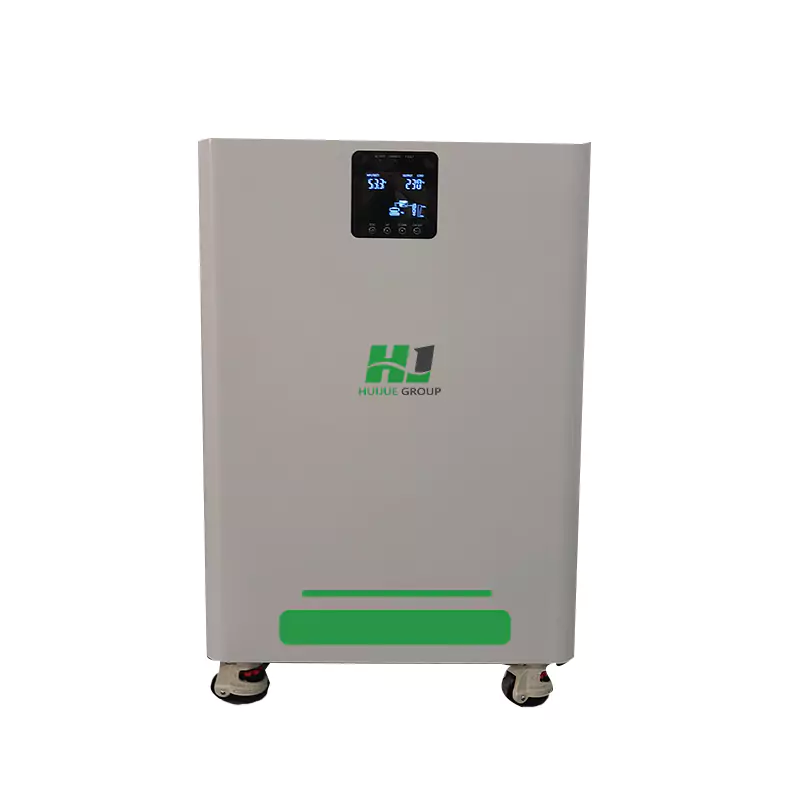

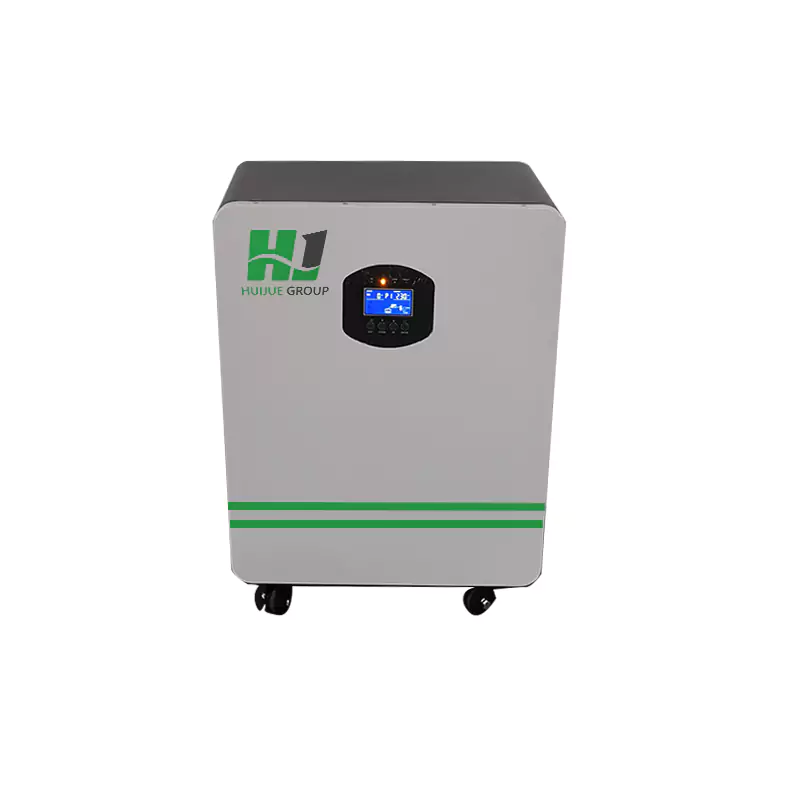

The all-in-one unit is a highly efficient energy management system that integrates a photovoltaic inverter, energy storage converter and battery pack, designed for home and small commercial users.
Send Message Get Price
| Product model | HJ-H05-O06（F-5） | HJ-H05-O06（F-8） | HJ-H10-O06（F-6） | HJ-H10-O06（F-9） | HJ-H15-O12（F-7） | HJ-H15-O12（F-10） |
| Battery voltage | 51.2V | 51.2V | 51.2V | 51.2V | 51.2V | 51.2V |
| Battery capacity | 100Ah | 100Ah | 200Ah | 200Ah | 314Ah | 314Ah |
| Energy | 5.12KWh | 5.12KWh | 10.24KWh | 10.24KWh | 16KWh | 16KWh |
| Inverter power | 6KW | 6KW | 6KW | 6KW | 12KW | 12KW |
| MPPT voltage range | 120~430Vdc | 120~430Vdc | 120~430Vdc | 120~430Vdc | 90~450Vdc | 90~450Vdc |
| Waterproof rating | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 |
| Communication method | RS485 | RS485/WiFi | RS485 | RS485/WiFi | RS485 | RS485/WiFi |
| Dimensions (mm) | 450*270*650mm(approx.) | 450*270*650mm(approx.) | 450*270*850mm(approx.) | 450*270*850mm(approx.) | 510*377*770mm(approx.) | 510*377*770mm(approx.) |
| Weight (kg) | 51kg(approx.) | 51kg(approx.) | 91kg(approx.) | 91kg(approx.) | 120kg(approx.) | 120kg(approx.) |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet
Utilizing advanced lithium-ion battery technology, the product significantly reduces weight and footprint while supporting wall-mounted installation to save space.
Supports integration with photovoltaic systems and features UPS uninterruptible power supply functionality, enabling automatic switching to ensure continuous power supply to electrical devices without interruption.
The battery supports thousands of charge-discharge cycles, significantly reducing long-term maintenance costs.
Equipped with an RS485 interface, it can connect to Wi-Fi or 4G modules to enable data transmission and remote monitoring, allowing users to monitor equipment status anytime, anywhere.
