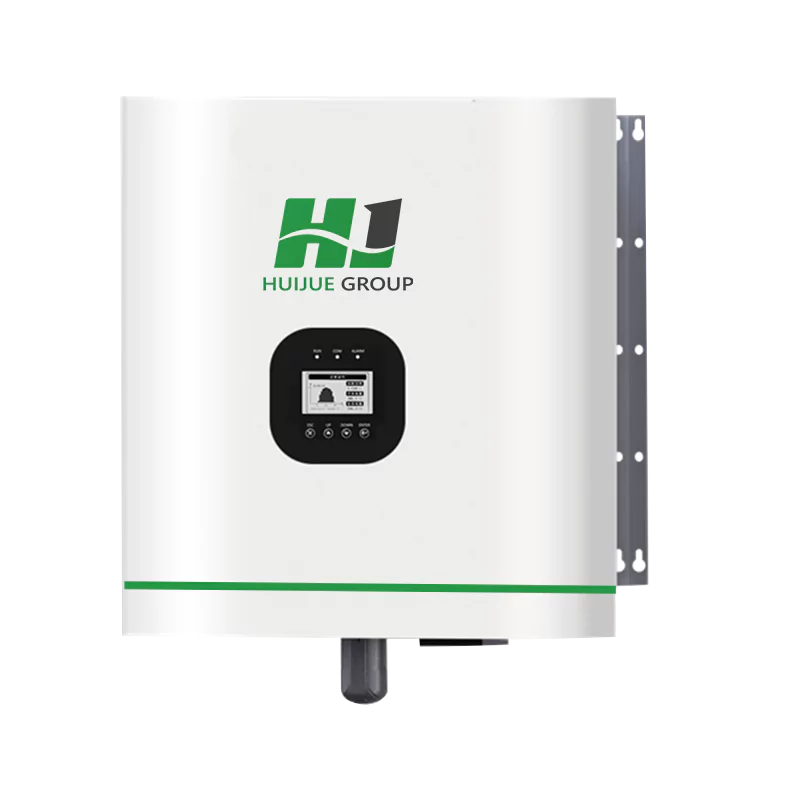

This inverter is suitable for medium and large-sized household systems as well as smart switches. It integrates photovoltaic and energy storage control, has built-in EMS intelligent management, and supports multiple battery types. It is equipped with UPS function, seamless switching within 10ms, and…
Send Message Get Price
| Product model | HJ-IH25-W500T( A-14) |
| PV Input Data | |
| Max. Input Power | 42500W |
| Max. Input Voltage | 1000V |
| MPPT Operating Voltage Range | 180-900V |
| Start-up Voltage | 610 |
| Max. Input Current | 36A/36A |
| Max. Short Circuit Current | 40A/40A |
| Number of MPPT Trackers | 2 |
| Number of Strings per MPPT | 2/2 |
| Battery Input Data | |
| Battery Voltage Range | 180-700V |
| Max.Charge/Discharge Current | 25A/25A |
| Max.Charge/Discharge Power | 25kW/25kW |
| Battery Type | |
| AC Output Data (On-grid) | |
| Nominal Output Power | 25000W |
| Max. Apparent Power | 27000VA |
| Nominal Output Voltage | 380V400V,3L/N/PE |
| Nominal Output Frequency | 50Hz/60Hz |
| Max. Output Current | 40A |
| Power Factor | ~1(0.8 lead to 0.8 lag can be set) |
| Total Harmonics Distortion | <3% |
| AC Output Data (Back-up) | |
| Nominal Output Power | 25000W |
| Max. Apparent Power | 27000VA |
| Nominal Output Voltage | 380V400V,3L/N/PE |
| Nominal Output Frequency | 50Hz/60Hz |
| Max. Output Current | 43A |
| Efficiency | |
| Max. Efficiency | 98.20% |
| European Efficiency | 97.10% |
| Protection | |
| AC Overcurrent Protection | Integrated |
| Ground Fault Protection | Integrated |
| Power Network Monitoring | Integrated |
| Residual Current Monitoring | Integrated |
| General Data | |
| Operating Temperature Range | -25°C-60°C (>45°C Derating) |
| Altitude | ≤4000m |
| Noise Emission | <40dB |
| Topology | Transformerless Isolation |
| Cooling | Intelligent Fan |
| Ingress Protection Rating | IP65 |
| Relative Humidity | 0~95% 无凝露 |
| DC Connector Type | MC/Amphenol/Phoenix |
| AC Connector Type | Plug-in Connector |
| Display | LCD+RS485 |
| Cloud Communication | RS485 (WIFI/4G 可选) |
| BMS Communication Mode | CAN |
| Communication with Meter | RS485 |
| Installation | Wall-mounted |
| Self-consumption at No-load | <10W |
| Dimension (W×D×H) | 505×572×235 |
| Weight | 40kg |
| Certification | |
| Safety Standards | IEC62109-1-2 |
| EMC Standards | EN61000-6-1/-3,IEC61000 |
| On-grid Standards | AS4777.2:2000, NRS097-2-1:2017, EN50649-1:2019, VDE-AR-N 4105:2018 |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet
Integrate PV and storage system modem, support multiple batteries, integrate with EMS Smart energy management systems.
UPS function, support three-phase imbalance,on/off gird switch within 10ms.
Wide PV voltage input range 180V-900V.wide batteries voltage range 180V-700V.
IP65 protection, aluminum housing,Built-in lightning protection,high-precision leakage protection.
Ultra silent,flexible communications,support remote/local USB upgrade.
Residential Solar Systems: Suitable for households looking to reduce electricity bills and maintain power during outages.
Commercial Office Buildings: Provides reliable energy management for businesses, optimizing solar and battery storage use to reduce operating costs.
Off-Grid Systems: Suitable for remote areas or locations without grid access, ensuring reliable energy production and storage.
