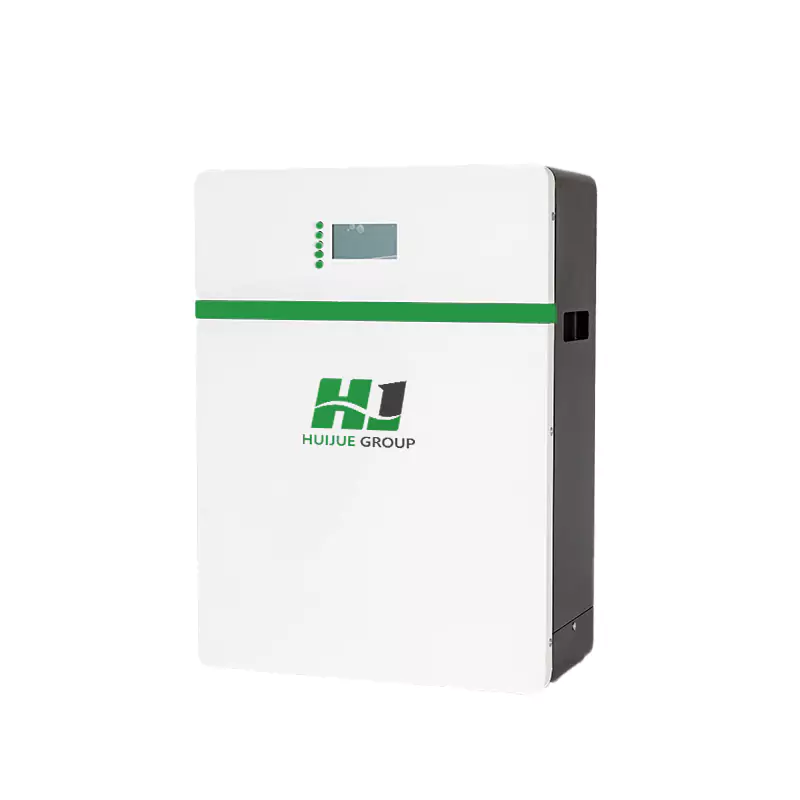

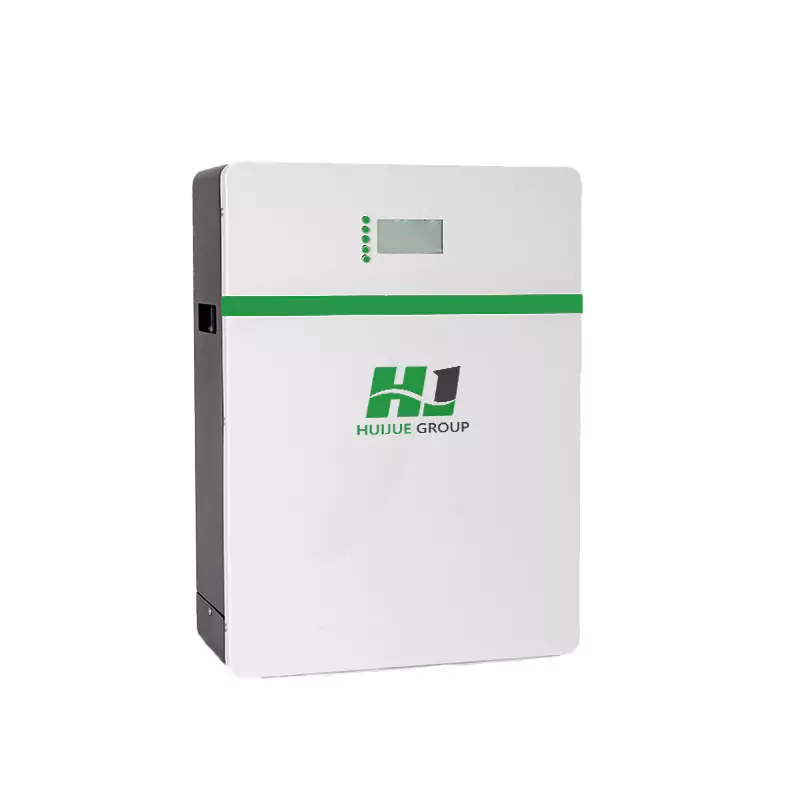

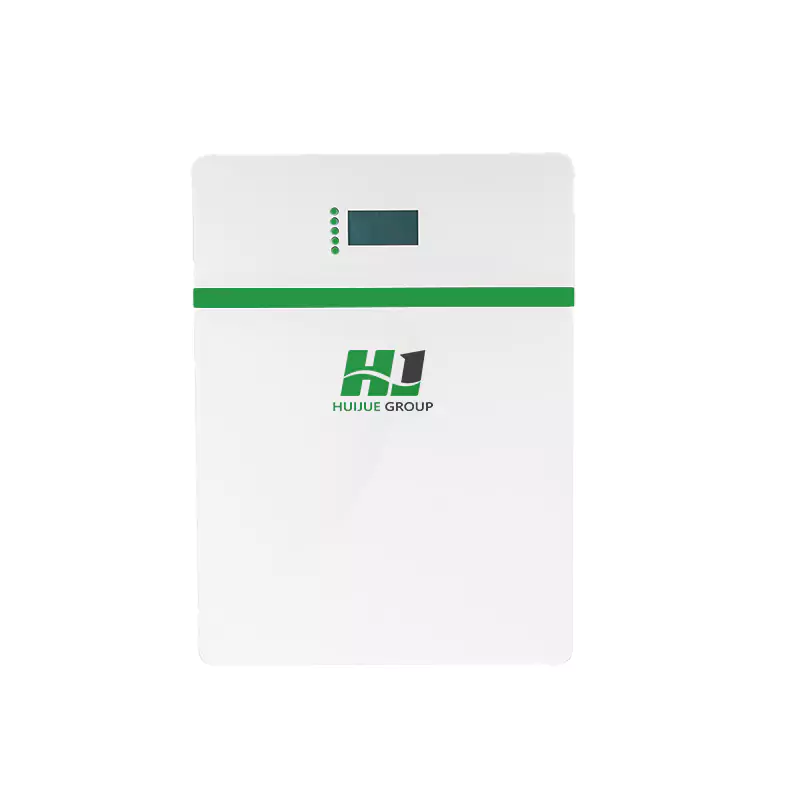

The Wall-mounted/floor-standing lithium battery lithium iron phosphate battery system launched by Huijue Group uses high-safety, environmentally friendly LiFePO₄ cells, featuring an ultra-long cycle life and outstanding energy density, and is widely applicable to energy storage scenarios such as hou…
Send Message Get Price
| Product model | HJ-HBL48101W( B-22) |
| Battery cell | LiFePO4 |
| Maximum continuous discharge current | 100A |
| Available capacity | 5120WH |
| Rated voltage | 51.2V |
| Voltage range | 40-58.4V |
| Maximum charging voltage | 58.4V |
| Recommended charging voltage | 58.4V |
| Recommended charging current | 50A |
| Cycle life (standard charge/discharge at normal temperature) | ≥6000 times |
| Communication | 标配 RS485、CAN |
| Battery discharge depth (DOD) | ≥95% |
| Operating temperature range | charge：0℃～60℃ ; discharge：-20℃～60℃； |
| Storage temperature | 1 month： -20℃～45℃； 1 year：0℃～35℃； |
| Weight (net weight, for reference) KG | 42.5KG |
| Depth × Width × Height (mm) | 550*360*140（mm） |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet
Utilizes high-quality lithium iron phosphate battery cells, certified by international safety standards including MSDS, UN38.3, ROHS, IEC62619, and UL, with a cycle life exceeding 6,000 cycles.
Features an integrated intelligent BMS that monitors individual cell voltage, current, and temperature, and includes overcharge, over-discharge, overcurrent, temperature protection, and active balancing functions to ensure cell consistency and extended service life.
Supports up to 16 battery modules in parallel for scalability, flexibly adapting to different power and capacity requirements.
Low-power architecture with no relays, achieving standby power consumption as low as milliwatt level, enhancing overall energy efficiency.

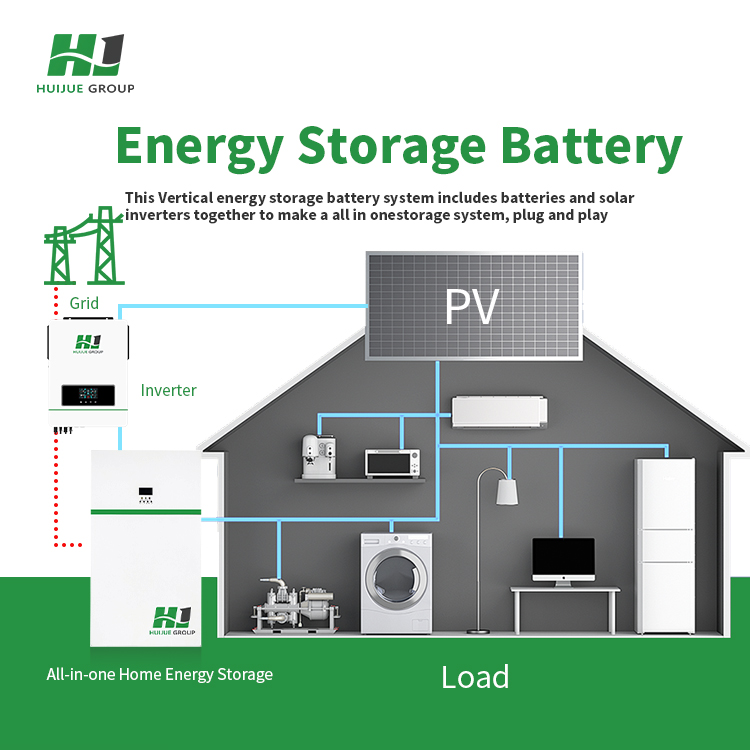

Solution for various scenarios such as residential, commercial, and industrial applications, ensuring stable operation of equipment and efficient use of energy.
