What are some key parameters of energy storage systems?

Rated power is the total possible instantaneous discharge capacity of the system, usually in kilowatts (kW) or megawatts (MW). Energy is the maximum energy stored (power rate in a given time), usually described in kilowatt-hours (kWh) or megawatt-hours (MWH).

What are the application values of industrial and commercial energy storage systems?

Peak-valley arbitrage To reduce corporate electricity costs, utilize the difference in peak-valley electricity prices, charge in valley periods and flat periods, and discharge in peak and peak periods.

What information about the power-consuming enterprise is necessary when installing an energy storage power station?

Basic information: electricity type, basic electricity price, time-sharing period/time-sharing electricity price, and the company's electricity shutdown production situation;

Previous page / Products / Container Energy Storage / 1MWh Energy Storage Container System

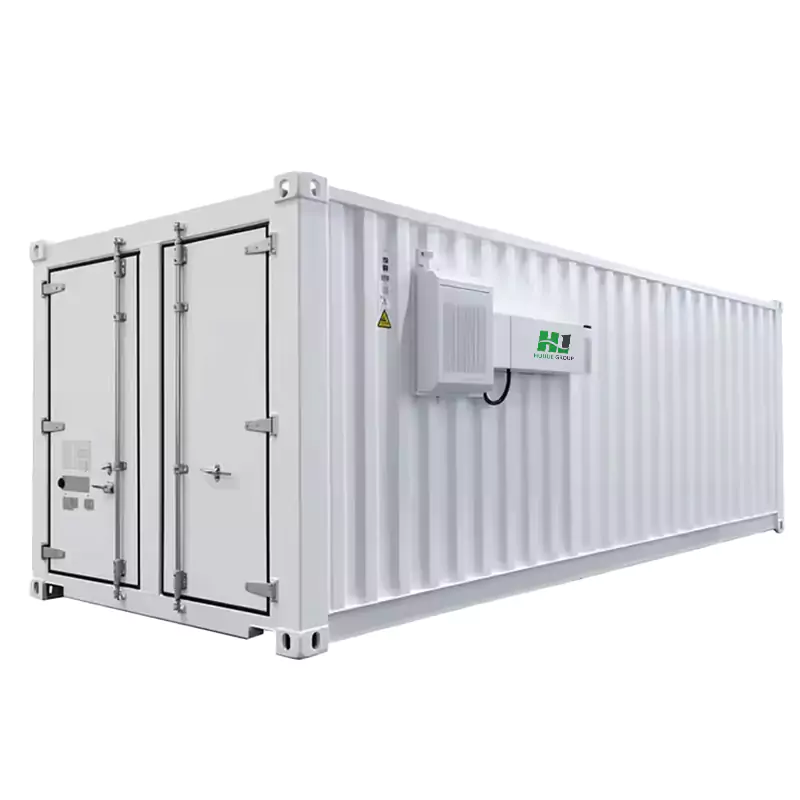

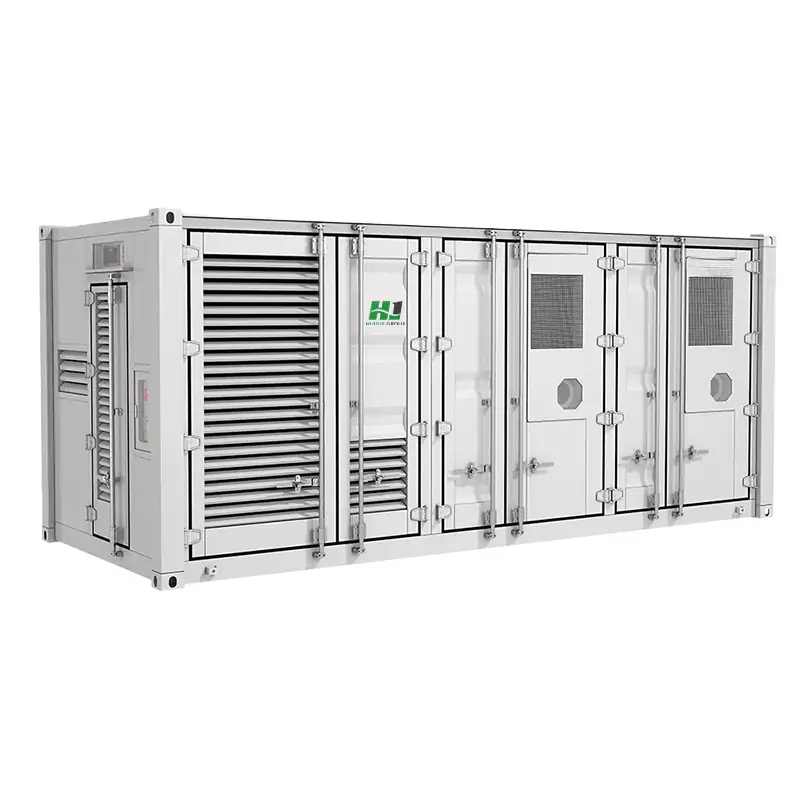

1MWh Energy Storage Container System

HJ-G500-1200F 1MWh Energy Storage Container System is a highly-integrated and high-efficiency energy storage solution, which adopts high-quality battery technology and intelligent control system, and integrates the battery and PCS (Energy Storage Converter) in a standard 20-foot container.

Type : Lithium-ion energy storage solution
Cooling : Air Cooling
Power : 500kW/1.2MWh
Energy Capacity : 1.2MWh
Battery Cell : LFP 3.2V/314Ah
Size : 5898mm*2352mm*2393mm

Send Message Get Price

Parameters

Product Parameters

Model	HJ-G500-1200F
Container System	20ft container (605824382896mm)
Battery System (with BMS)	75 51.2V/314Ah battery PACKs, total battery capacity 1205.760kWh
PCS	500kW, off-grid and grid-connected optional
Convergence control cabinet	EMS system, parallel convergence system
Electric Control Cabinet	EMS system, AC power distribution system
Fire Fighting System	Containing fire protection cabinet, fire control cabinet, fire protection host, fire protection gas cylinder, do not enter sign, sound and light alarms
Monitoring System	Containing access control system, environmental monitoring system
Air Conditioning System	Floor-standing integrated machine, rated cooling capacity 20KW, including air conditioning duct system

Note: Specifications are subject to change without prior notice for product improvement. Data Sheet

Feature

High-performance battery system

Equipped with 75 51.2V/314Ah battery PACKs, the battery system includes BMS (Battery Management System), which can monitor the battery status in real time.
Multiple voltage outputs

AC220V, DC48V, -12V.
Intelligent control system

EMS (Energy Management System) is integrated in the convergence control cabinet and the electric control cabinet to achieve precise control of the charging and discharging process of the energy storage system, optimisation of energy distribution and efficient management of the parallel convergence.
Intelligent monitoring and management

Equipped with an intelligent monitoring platform containing access control system and environment monitoring system, it can monitor the entry and exit of the personnel in the container as well as the temperature, humidity and other environmental parameters in real time, so as to ensure that the equipment operates in a suitable environment.
High-efficiency temperature control system

Adopting floor-standing integrated air-conditioning system with a rated cooling capacity of 20KW, together with the homemade air-conditioning duct system, it can accurately control the temperature inside the container to ensure that the batteries work in the appropriate temperature zone.

Solution

Base station stacked photovoltaic system

Stacked MPPT photovoltaic controller expands PV capacity for base stations. Series-connected PV modules feed the controller, output -48V DC to loads. Supports wall/pole mounting; available in Outdoor and Rack-mount types.

Stacked MPPT photovoltaic controller is a product specially developed for photovoltaic energy expansion in base station scenarios. The series connection technical solution consists of PV modules, a stacked MPPT controller, and a DC ammeter; each photovoltaic module is connected in series to the cont…

Base Station Equipment Room Energy Scenario

Site hybrid energy series focuses on green, efficient, reliable, and intelligent power solutions. It includes integrated supplies, AC-DC converters, 5G power boxes, and hybrid cabinets, supporting PV, wind, and energy storage to create a flexible “New Energy + Grid + Storage” system.

site hybrid energy product series focuses on green low-carbon, high efficiency, reliability, and intelligent coordination. It covers all-scenario power equipment including integrated power supplies, AC-DC converters, outdoor 5G power boxes, indoor/outdoor hybrid energy cabinets, and equipment room p…

Hybrid Energy Communication Site

It covers all-scenario power equipment including integrated power supplies, AC-DC converters, outdoor 5G power boxes, indoor/outdoor hybrid energy cabinets, and equipment room power cabinets. It fully supports new energy sources such as PV and wind power, building a hybrid power distribution system of “New Energy + Grid Power + Energy Storage.

Hybrid energy product series focuses on green low-carbon, high efficiency, reliability, and intelligent coordination. It covers all-scenario power equipment including integrated power supplies, AC-DC converters, outdoor 5G power boxes, indoor/outdoor hybrid energy cabinets, and equipment room power …

Compact Communication Site

Compact Communication Site is an integrated and intelligent core equipment of the telecom power system, widely used in mobile base stations, data centers, and other scenarios.

Compact Communication Site is an integrated and intelligent core equipment of the telecom power system, widely used in mobile base stations, data centers, and other scenarios. It integrates power supply, power distribution, backup power, wall/pole mounting, and monitoring into one unit, providing st…

PV-Replacing-Diesel Scenario

Stacked MPPT photovoltaic controller is designed for diesel-powered base stations to expand PV capacity, add energy storage, and cut diesel use. Series-connected PV modules feed the controller, which outputs -48V DC to loads. Excess energy charges storage; shortages are supplemented, boosting green energy and efficiency.

Stacked MPPT photovoltaic controller is a product specially developed for existing base stations using diesel generator scenarios, to expand PV capacity, add energy storage, and reduce diesel consumption. The series-connection technical solution consists of PV modules, a Stacked MPPT controller, a D…
