What are some key parameters of energy storage systems?

Rated power is the total possible instantaneous discharge capacity of the system, usually in kilowatts (kW) or megawatts (MW). Energy is the maximum energy stored (power rate in a given time), usually described in kilowatt-hours (kWh) or megawatt-hours (MWH).

What are the application values of industrial and commercial energy storage systems?

Peak-valley arbitrage To reduce corporate electricity costs, utilize the difference in peak-valley electricity prices, charge in valley periods and flat periods, and discharge in peak and peak periods.

What information about the power-consuming enterprise is necessary when installing an energy storage power station?

Basic information: electricity type, basic electricity price, time-sharing period/time-sharing electricity price, and the company's electricity shutdown production situation;

Previous page / Products / Cabinet Energy Storage / 372kWh Outdoor cabinet series industrial and commercial energy storage system

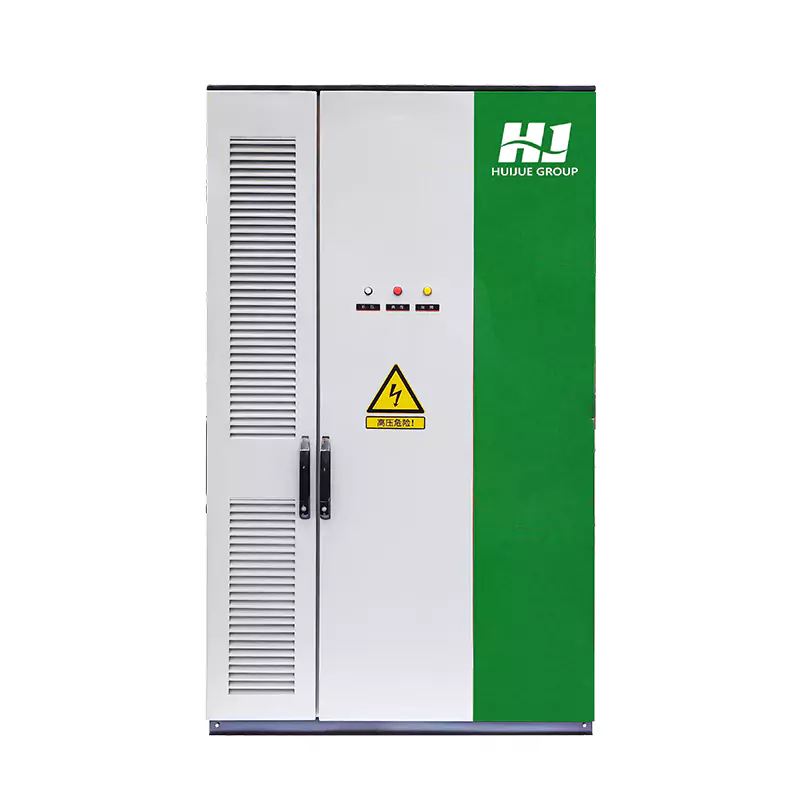

372kWh Outdoor cabinet series industrial and commercial energy storage system

Huijue Group's industrial and commercial energy storage system adopts an integrated design concept, integrating batteries, battery management system BMS, energy management system EMS, modular converter PCS and fire protection system in the cabinet. The modular design allows flexible expansion and ad…

Type : Lithium-ion/semi-solid-state battery energy storage solutions
Cooling : Liquid Cooling
Power : 150kW/372kWh
Energy Capacity : 372kWh
Battery Cell : LFP 3.2V/280Ah;SSB 3.2V/280Ah
Size : 1460mm*1300mm*2350mm

Send Message Get Price

Parameters

Product Parameters

Product Model:HJ-G150-372L/HJB-G150-372L（150kW/372kWh）
DC Parameters		AC Parameters
Battery Type	lithium iron phosphate (LiFePO4)/semi-solid-state battery	AC side rated power	150kW
Cell Capacity	3.2V/280Ah	Maximum power on AC side	165kW
System Battery Configuration	1P416S	Total harmonic distortion rate of cable	<3% at rated power
Rated Battery Capacity	372kWh	Rated voltage of AC side	380V AC
Battery Voltage Range	DC1165-1500V	AC access mode	3P+N+PE
Charge/Discharge Ratio	0.5C	Rated grid frequency	50/60Hz
Depth of discharge	80%	Power factor range	0.98
Battery Cooling Method	liquid-cooling	Off-grid operation	Support
System parameters
Dimension	140013002350mm(reference)	Temperature control methods	Liquid-cooled units
Protection class	IP55	Fire-fighting programme	Aerosols, perfluorohexanone
System Communication Protocol	Standard: Modbus	Communication Interface	RS485、RJ45

Note: Specifications are subject to change without prior notice for product improvement. Data Sheet

Feature

Fast power response

Fast power response, supports multiple modes such as virtual power plant, grid-connected, off-grid, etc.
All-in-one design

All-in-one design, greatly reducing the time and cost of transportation and on-site installation
Local collection, intelligent monitoring, remote operation and maintenance.
Standardized interface

Standardized interface can connect multiple machines in parallel, easy to expand, and batch manufacturing process is easier to guarantee.
Intelligent installation

Intelligent installation and operation and maintenance, support node adaptation, fault indication, etc., reducing on-site and operation and maintenance workload by 70%.
Non-isolation design

Non-isolation design, improves system efficiency, independent single cluster battery, no circulation, reduces power loss.
