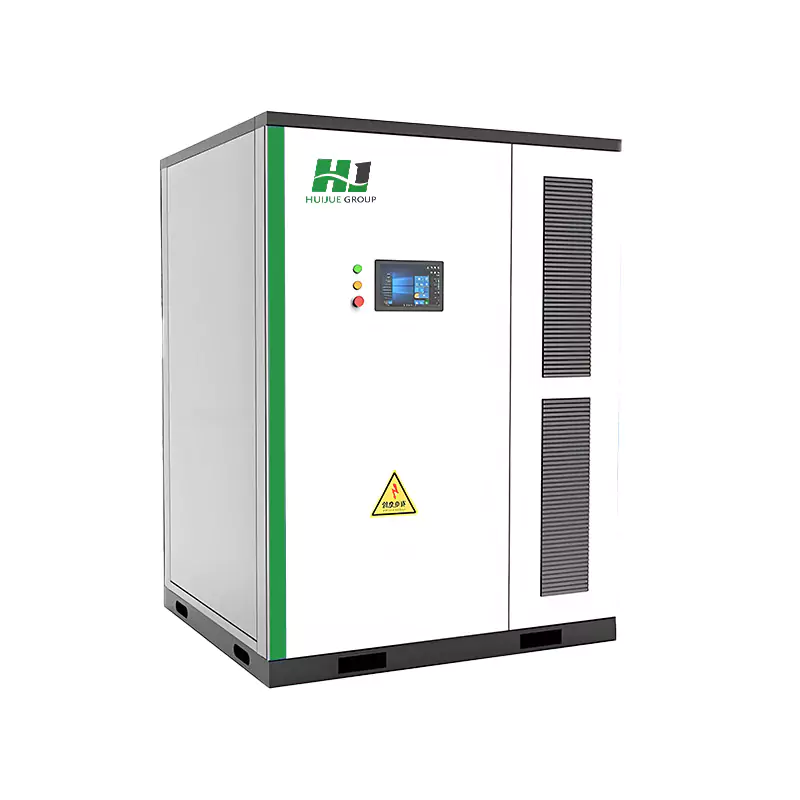

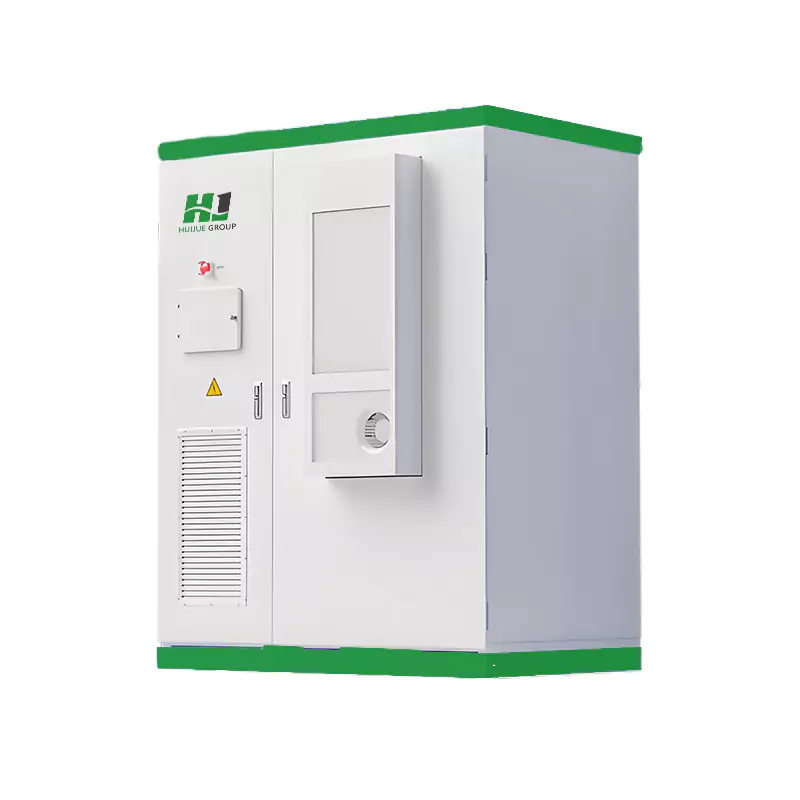

HJ-G100-215L 215KWh outdoor cabinet energy storage system is a liquid-cooled energy storage solution. The system adopts high-capacity density lithium iron phosphate battery with 1000V platform and plate exchange liquid-cooling technology, equipped with 100kW energy storage converter, charging/discha…
Send Message Get Price
| Model | HJ-G100-215L |
| Item | Technical parameters (single system) |
| System parameters | |
| Rated Discharge Power | 100kW |
| Rated charging power | 100kW |
| Rated Energy Storage Capacity | 213kWh |
| Storage Battery Type | Lithium iron phosphate, 280Ah single unit |
| Battery Module | 1P48S |
| Single Cluster Formation | 1P240S |
| Maximum Energy Conversion Efficiency | ≥86% |
| DC Side Parameters | |
| Rated Voltage | DC768V |
| Battery voltage range | DC 600V~876V |
| Rated Power | 100kW |
| Rated Current | 140A |
| Maximum DC Power | 110kW |
| Maximum DC Current | 192A |
| AC Side Parameters | |
| Rated grid voltage/allowable grid voltage range | 400V（-20%~+15%） |
| Rated grid frequency / permissible grid frequency range | 50Hz/60 Hz (±2.5) |
| Rated power factor | -0.99~+0.99 |
| Cabinet parameters | |
| Overall Dimension(W×D×H)mm | 1300×1300×2275 |
| Weight (t) | ≤3 |
| Installation method | Cement foundation or channel steel |
| Protection grade | IP54 |
| Spraying Colour | RAL 7035 Off-white matt |
| Thermal management technology | Liquid- cooling |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet
It adopts an integrated liquid-cooling system, with a high-efficiency inverter compressor and intelligent speed regulation of the fan.
It is responsible for real-time communication with BMS, PCS, temperature control system, fire protection system and other equipments, collecting data and forwarding them to the energy storage cloud platform, so that users can view the data at any time through WEB or mobile phone APP.
It supports AC0.4kV low-voltage side access, which can be flexibly integrated into different scenarios of power grid architecture to meet diversified energy access needs.
It has the functions of peak/valley arbitrage, backflow prevention, manual connection and disconnection, etc., which can adapt to the energy management needs in different scenarios and realise the efficient use and optimal allocation of energy.
Highly integrated system design, compact structure, space-saving, easy to transport and install, can be quickly put into use.
Peak-to-valley arbitrage, grid-side frequency regulation, standby power supply.
