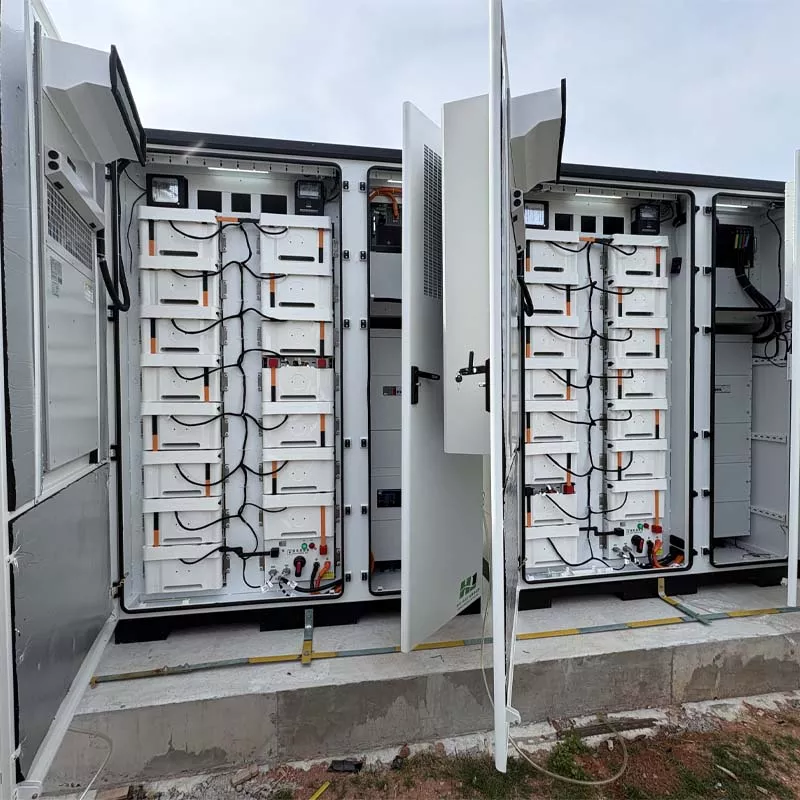

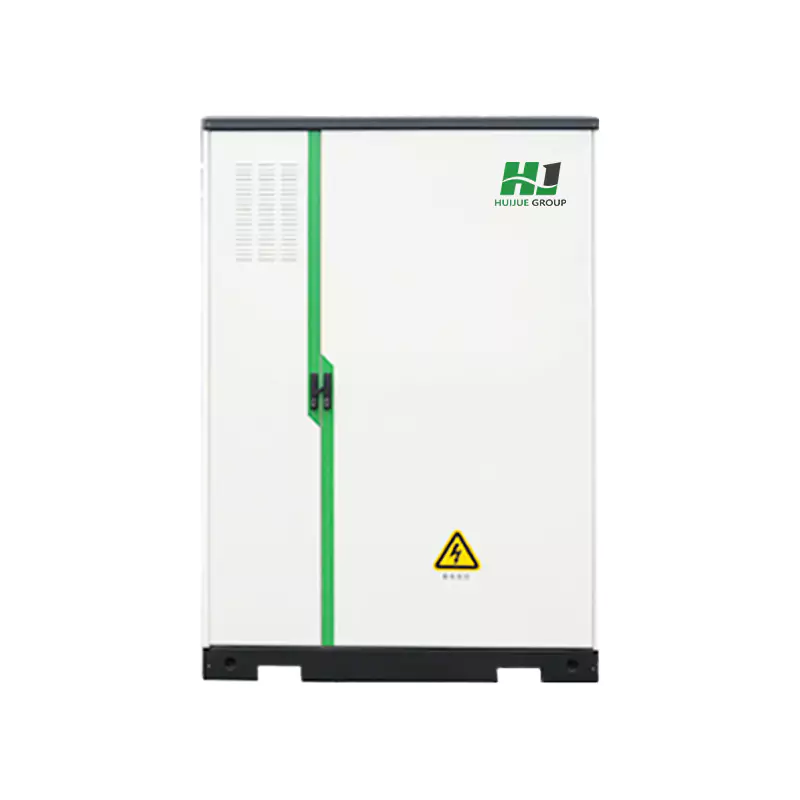

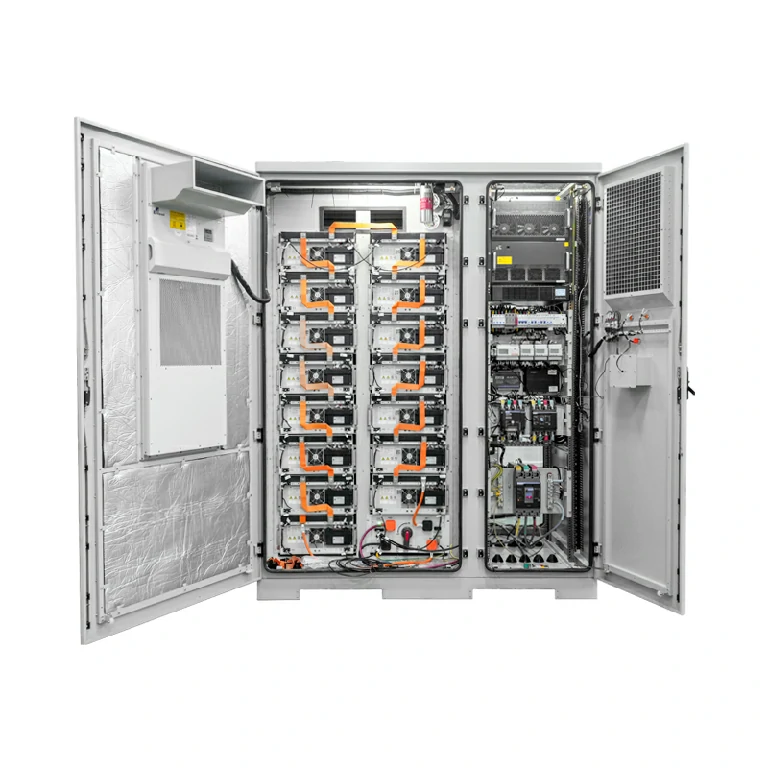

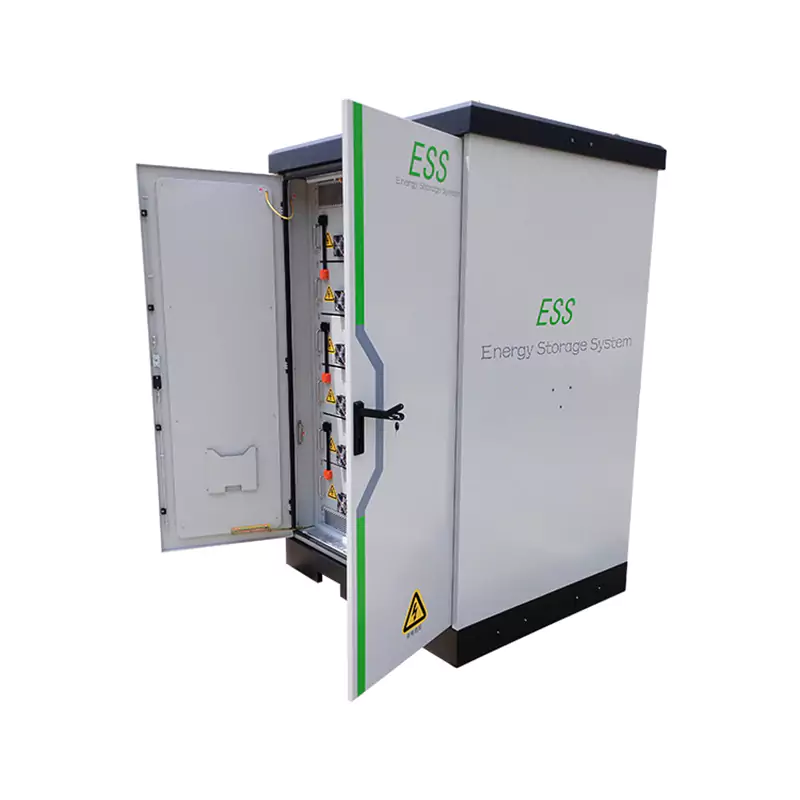

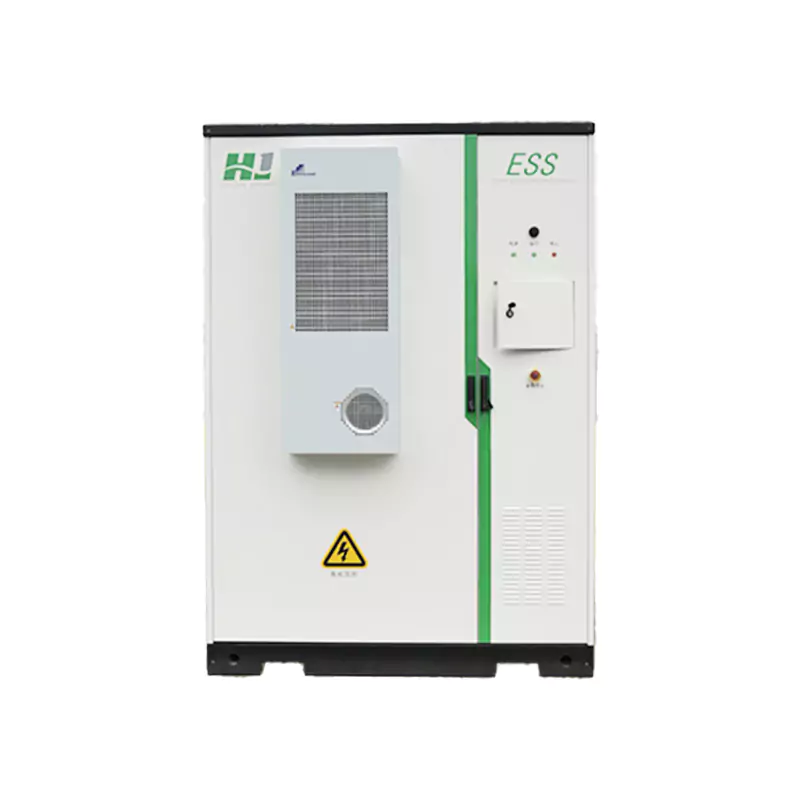

HJ-G100-215F is a high capacity air-cooled energy storage system designed for outdoor industrial as well as commercial applications. With a power output of 100KW and an energy storage capacity of 215KWh, the system provides companies with an efficient energy management solution that helps optimize e…
Send Message Get Price
| HJ-G100-215F/HJB-G100-215F (100kW/215kWh) | |||
| DC parameters | AC parameters | ||
| Battery type | Lithium iron phosphate | AC side rated power | 100kW |
| Cell Capacity | 3.2V/280Ah;SSB 3.2V/280Ah | Maximum power on the AC side | 110kW |
| System Battery Configuration | 1P240S | Total harmonic distortion rate of the cable | <3% at rated power |
| Battery Rated Capacity | 215 kWh | Rated voltage of the AC side | 380V AC |
| Battery voltage range | DC636-876V | AC access method | 3P+N+PE |
| Charge/discharge ratio | 0.5C | Rated grid frequency | 50/60Hz |
| Depth of discharge | 80% | Power factor range | 0.98 |
| Battery cooling method | air cooling | Off-grid operation | Be in favor of |
| System parameter | |||
| Sizes | 1600*1280*2200mm(reference) | Temperature control method | Industrial-grade temperature-controlled air conditioning |
| Protection class | IP55 | Firefighting program | Aerosol, perfluorohexanone |
| System communication protocol | Standard: Modbus | Communication interface | RS485, RJ45 |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet
Supports both grid-connected and off-grid operation modes.
Compatible with photovoltaic systems for hybrid energy solutions.
Integrated intelligent energy management system, supporting real-time monitoring and control.
Energy storage solutions for medium or large, commercial and industrial installations of;Better suited to provide backup power for hospitals, data centers, manufacturing plants, etc.;Peak curtailment and load shifting in energy-intensive industries to reduce operating costs
